概览
描述

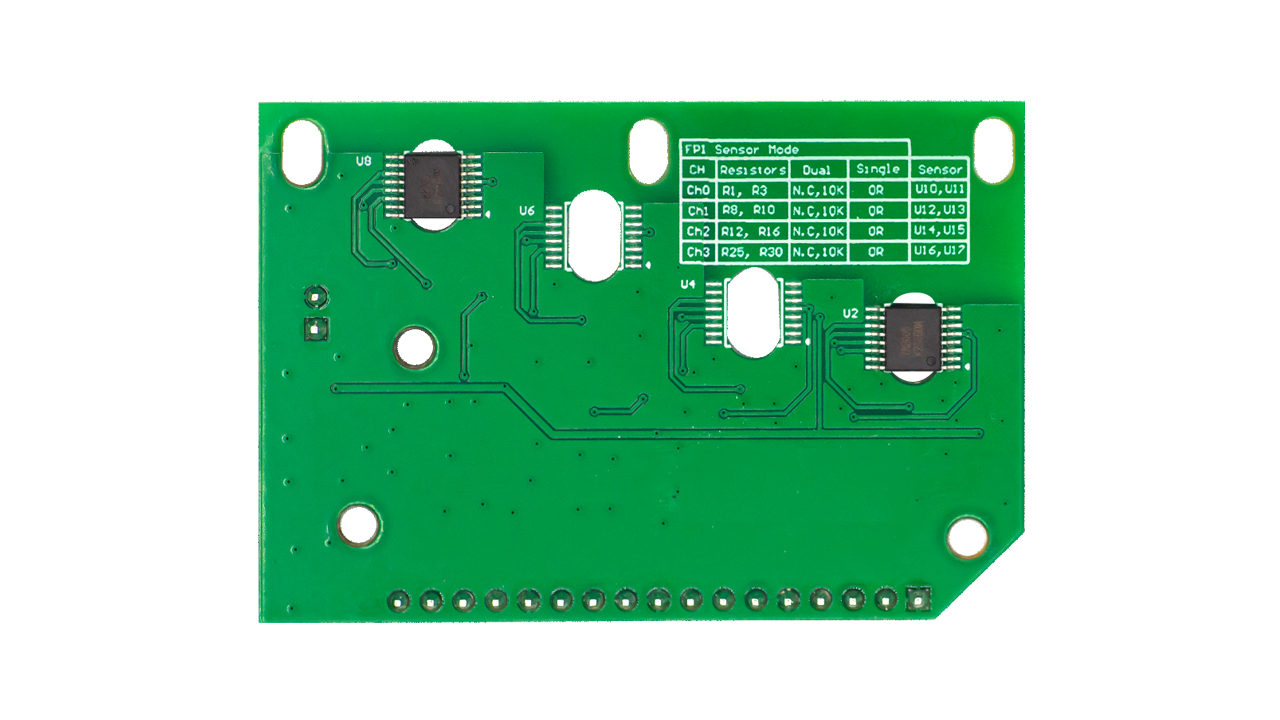

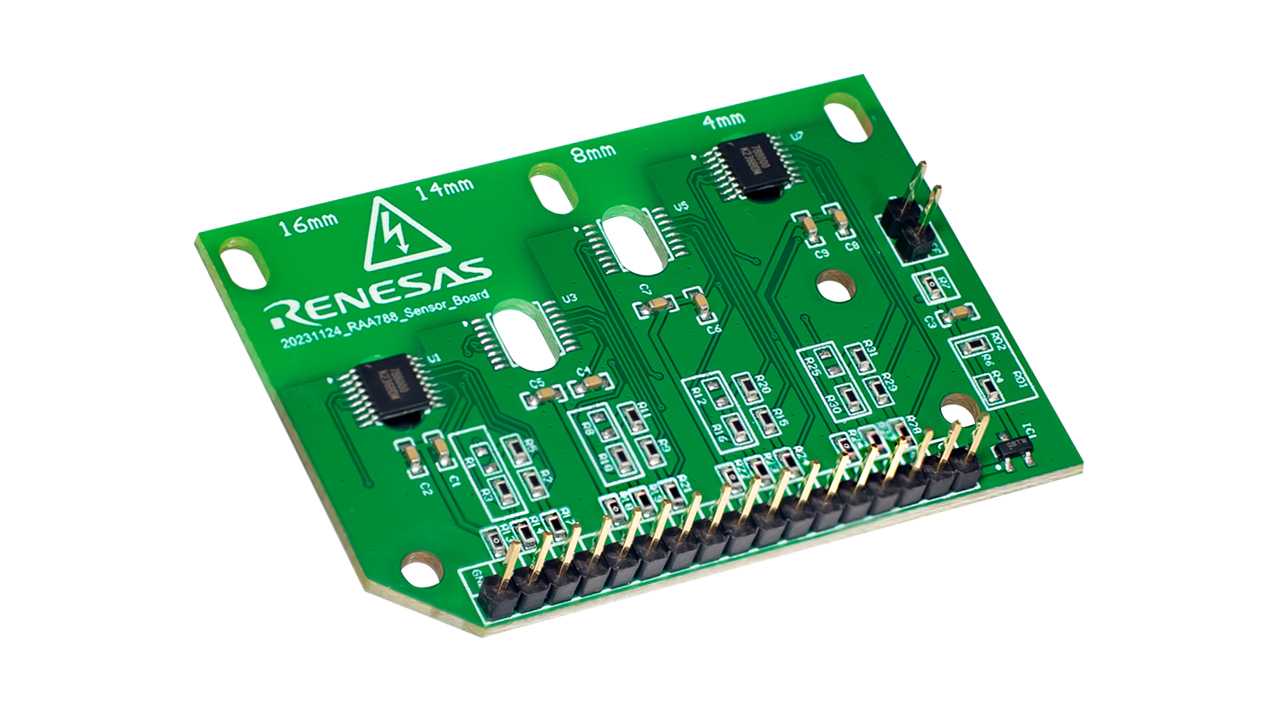

The RTKA788000DE0010BU evaluation board allows the measurement of power line currents up to 80A.
The board includes two RAA788000 current sensor ICs in stacked sensor topology, for easy connection to a high-current source.
The output amplifiers of the two sensors are configured to a single differential amplifier to allow for differential current measurements with minimum noise.
特性
- Two current sensor ICs
- High-gain setting of 200V/V
- Stacked sensor topology
- Differential current measurement up to 80A
- Wide 2.7V to 3.6V supply voltage range
应用
- AC current sensor stacked topology
