带远程信息处理板的 TFT 仪表盘参考设计
该参考设计主要用于简化高级汽车显示屏的开发。它集成了蓝牙®低功耗连接、手机屏幕的 Wi-Fi 投屏功能,并能调节 TFT 屏幕和摄像头画面的亮度。它采用 RH850/D1M1A 高性能 MCU,内核为 G3M,运行频率为 240MHz,支持 2D 和 2.5D 图形,并配备 4MB 闪存、512KB RAM 和 32x1.2MB 视频...

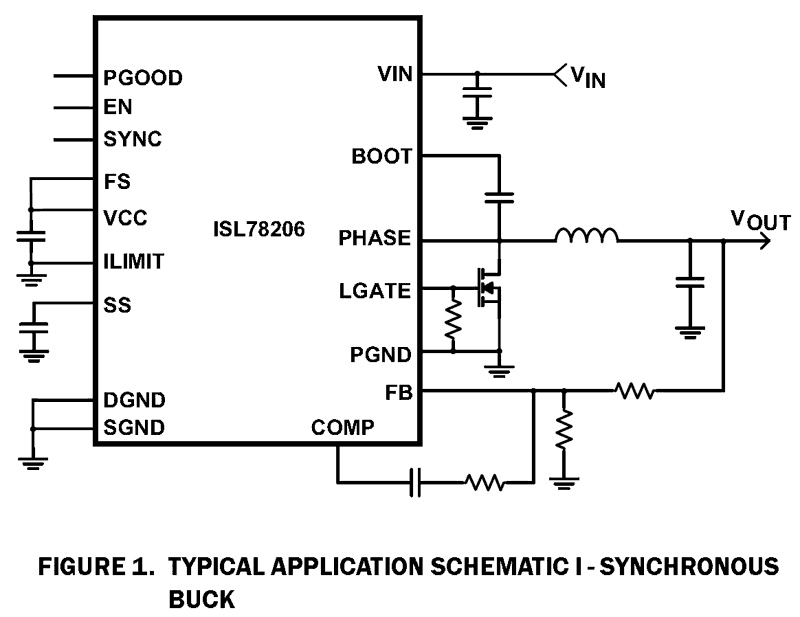

The ISL78206 is an AEC-Q100 qualified 40V, 2. 5A synchronous buck controller with a high-side MOSFET and low-side driver integrated. The ISL78206 supports a wide input voltage range from 3V to 40V, output current up to 2. 5A, and can be operated in synchronous and non-synchronous buck topologies. The ISL78206 provides a low system cost, high efficiency, single part buck solution for automotive applications for a wide variety of input voltages. For vehicle systems that must be kept powered during cold-cranking or start-stop operation, the ISL78206 can be replaced by its pin-to-pin alternative, the ISL78201 which offers boost-buck operation. Together, these devices offer two functional alternatives on the same PCB layout, providing convenience, flexibility, and facilitating extensive design reuse. The ISL78206 offers the most robust current protections. It uses peak current mode control with cycle-by-cycle current limiting. It is implemented with frequency foldback undercurrent limit conditions. In addition, the hiccup overcurrent mode is also implemented to guarantee reliable operations under harsh short conditions. The ISL78206 has comprehensive protections against various faults, including overvoltage, undervoltage, programmable overcurrent and over-temperature. Built-in soft-start allows the IC to start-up smoothly and is reactivated during hiccup mode fault recovery.
该参考设计主要用于简化高级汽车显示屏的开发。它集成了蓝牙®低功耗连接、手机屏幕的 Wi-Fi 投屏功能,并能调节 TFT 屏幕和摄像头画面的亮度。它采用 RH850/D1M1A 高性能 MCU,内核为 G3M,运行频率为 240MHz,支持 2D 和 2.5D 图形,并配备 4MB 闪存、512KB RAM 和 32x1.2MB 视频...
The VC4 is based on a complete Renesas chipset. The centerpiece is the R-Car S4 with 8x Cortex®A55 cores, 1x Cortex® R52 core 2x RH850 G4MH delivering up to 27K DMIPS...
该参考设计集成了各种无线模块,包括低功耗蓝牙® (LE)、Wi-Fi 和 LTE+GPS,为网联汽车提供强大的解决方案。 随着汽车行业朝着更大的连接性发展,该远程信息处理单元使用户能够轻松升级现有的电子控制单元(ECU),以实现丝滑的云连接。 除了汽车,我们还可以增强 IoT 应用的工业系统。
瑞萨电子的车辆控制单元参考设计使您能够轻松采用面向软件的架构(SOA)和软件定义车辆(SDV)框架。 借助标准和千兆以太网接口,我们帮助各个原始设备制造商(OEM)高效实施区域架构。 对于入门级和商用车辆,这种设计可作为中央计算或网关使用,充分利用其多核架构和性能空间。 它符合从 ASIL B 到 ASIL D...
