RZ/T 系列逆变器板
RZ/T 系列逆变器板(P/N:RTK0EM0000B15010BJ)是一款逆变器板,可让用户使用 BLDC 电机轻松评估电机控制能力。 本产品支持绝对式编码器和增量式编码器。 与兼容的 CPU 板结合使用,便可立即开始评估电机控制。

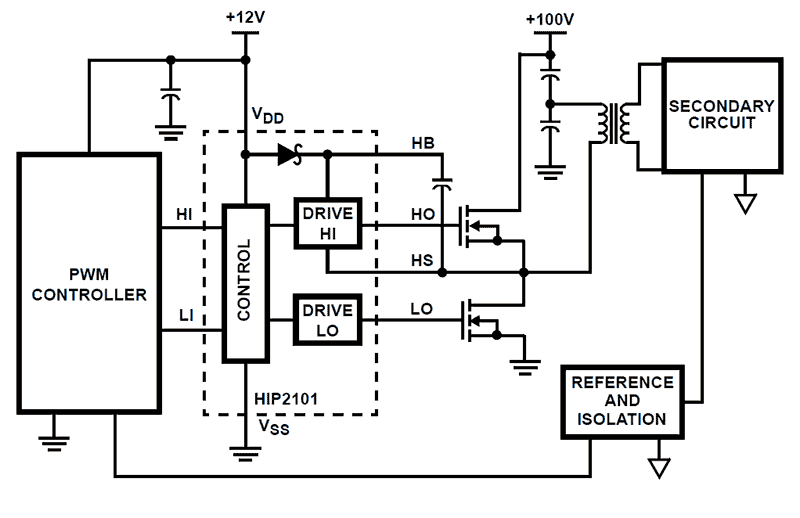

The HIP2101 is a high frequency, 100V Half Bridge N-Channel power MOSFET driver IC. It is equivalent to the HIP2100 with the added advantage of full TTL/CMOS compatible logic input pins. The low-side and high-side gate drivers are independently controlled and matched to 13ns. This gives users total control over dead time for specific power circuit topologies. Undervoltage protection on both the low-side and high-side supplies force the outputs low. An on-chip diode eliminates the discrete diode required with other driver ICs. A new level-shifter topology yields the low-power benefits of pulsed operation with the safety of DC operation. Unlike some competitors, the high-side output returns to its correct state after a momentary undervoltage of the high-side supply.
RZ/T 系列逆变器板(P/N:RTK0EM0000B15010BJ)是一款逆变器板,可让用户使用 BLDC 电机轻松评估电机控制能力。 本产品支持绝对式编码器和增量式编码器。 与兼容的 CPU 板结合使用,便可立即开始评估电机控制。
RZ/T 系列逆变器板套件(P/N:RTK0EM0000S05010BJ)是一款逆变器板,可让用户使用 BLDC 电机轻松评估电机控制能力。 本产品支持绝对式编码器和增量式编码器。 与兼容的 CPU 板结合使用,便可立即开始评估电机控制。
支持的 CPU 板:RZ/T2H 评估板套件(P/N:RTK9RZT2H0S00000BJ)
RL78/G24 电机控制评估套件是一款永磁同步电机(无刷直流电机)控制评估套件,配备 RL78/G24 微控制器,可轻松评估电机控制。 您可以从瑞萨电子网站下载示例软件,使用该软件就可以立即开始评估电机控制。
RZ/N2H 评估板套件是用于 RZ/N2H MPU 的一款评测和开发套件。 由于它具有板载仿真器,您只需将附带连线接到 PC 即可开始评测。 该评测板包含千兆以太网 PHY、非易失性存储器和 LPDDR4 存储器等功能丰富的元件,无需扩展板即可评估 RZ/N2H 的各种功能。
此外,通过扩展逆变器板,还可以实现多轴电机控制。
