概览
描述

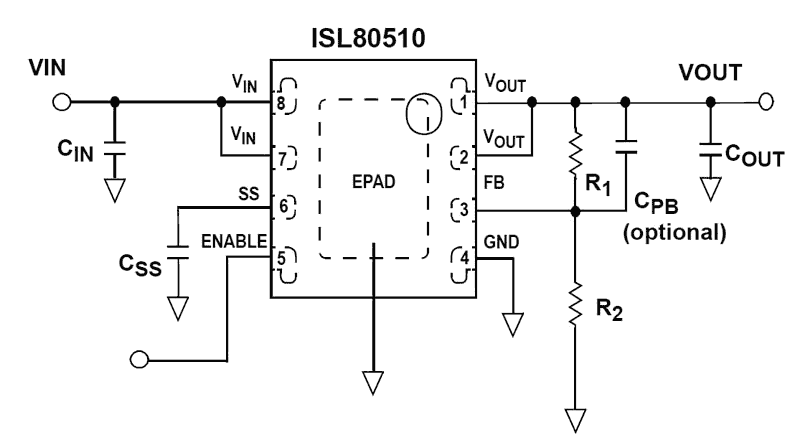

The ISL80510 is a single output Low Dropout voltage regulator (LDO) capable of sourcing up to 1A output current. This LDO operates from input voltages of 2. 2V to 6V. The output voltage of ISL80510 can be programmed from 0. 8V to 5. 5V. A submicron BiCMOS process is utilized for this product family to deliver the best in class analog performance and overall value. This CMOS LDO consumes significantly lower quiescent current as a function of load compared to bipolar LDOs, which translates into higher efficiency and packages with smaller footprints. State-of-the-art internal compensation achieves a very fast load transient response and excellent PSRR. The ISL80510 provides an output accuracy of ±1. 8% VOUT accuracy over all load, line and temperature variation (TJ = -40°C to +125°C). An external capacitor on the soft-start pin provides an adjustable soft starting of the output voltage ramp to control the inrush current. The ENABLE feature allows the part to be placed into a low quiescent current shutdown mode.
特性
- ±1.8% VOUT accuracy guaranteed over line, load and TJ = -40°C to +125°C
- Very low 130mV dropout voltage at VOUT = 2.5V
- Stable with a 4.7µF output ceramic capacitor
- Very fast transient response
- Programmable output soft-start time
- Excellent PSRR over wide frequency range
- Current limit protection
- Thermal shutdown function
- Available in an 8 Ld DFN package
- Pb-free (RoHS compliant)
产品对比
应用
文档
|
|
|
---|---|---|
类型 | 文档标题 | 日期 |
数据手册 | PDF 1.08 MB | |
宣传手册 | PDF 12.71 MB 日本語 | |
产品变更通告 | PDF 169 KB | |
白皮书 | PDF 1.10 MB English | |
产品变更通告 | PDF 326 KB | |
应用笔记 | PDF 509 KB | |
应用笔记 | PDF 397 KB | |
7 items
|
设计和开发
开发板与套件
RZ/T 系列逆变器板
RZ/T 系列逆变器板(P/N:RTK0EM0000B15010BJ)是一款逆变器板,可让用户使用 BLDC 电机轻松评估电机控制能力。 本产品支持绝对式编码器和增量式编码器。 与兼容的 CPU 板结合使用,便可立即开始评估电机控制。
RZ/T 系列逆变器板套件
RZ/T 系列逆变器板套件(P/N:RTK0EM0000S05010BJ)是一款逆变器板,可让用户使用 BLDC 电机轻松评估电机控制能力。 本产品支持绝对式编码器和增量式编码器。 与兼容的 CPU 板结合使用,便可立即开始评估电机控制。
支持的 CPU 板:RZ/T2H 评估板套件(P/N:RTK9RZT2H0S00000BJ)
