ISL80505

有效
产品长期供货

高性能 500mA LDO

立即订购

特性

  • 在整个线路、负载和 TJ = -40°C 至 +125°C 范围内保证 ±1.8% VOUT 精度
  • 极低的 45mV 压差（VOUT = 2.5V 时）
  • 使用 4.7µF 输出陶瓷电容器可保持稳定
  • 极快的瞬态响应
  • 可编程输出软启动时间
  • 在宽频率范围内具有出色的 PSRR
  • 限流保护
  • 热关断功能
  • 采用 8 引脚 DFN 封装
  • 无铅（符合 RoHS）
查找线性稳压器（LDO）的其他产品

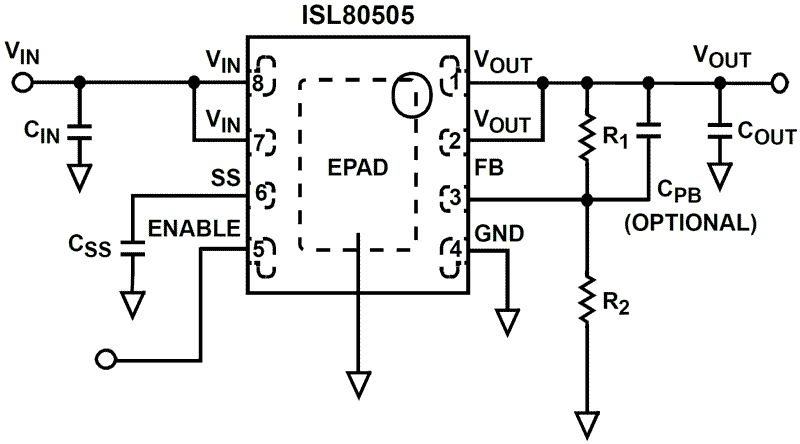

ISL80505 Functional Diagram
ISL80510/05 High Performance LDO Regulators
ISL80505 Functional Diagram
ISL80510/05 High Performance LDO Regulators

描述

ISL80505 是一款单输出低压差稳压器（LDO），能够提供高达 500mA 的输出电流。 该 LDO 在输入电压为 1.8V 至 6V 的条件下运行。 ISL80505 的输出电压可在 0.8V 至 5.5V 范围内编程。 该产品系列采用亚微米级的 BiCMOS 流程来提供一流的模拟性能和总体价值。 这种 CMOS LDO 的作为负载功能的静态电流显著低于双极 LDO，因此可提供更高的效率和更小的封装。 先进的内部补偿可实现极快的负载瞬态响应和出色的 PSRR。 ISL80505 在所有负载、电压和温度变化（TJ = -40°C 至 +125°C）范围内提供 ±1.8% VOUT 精度。 软启动引脚上的外部电容可提供输出电压斜升的可调节软启动以控制涌入电流。 ENABLE 功能可将部件置于低静态电流关断模式。

产品参数

属性 值
Input Voltage (Min) (V) 1.8
Input Voltage (Max) (V) 6
Output Voltage (Min) (V) 0.8
Output Voltage (Max) (V) 5.5
Output Current 1 (Max) (A) 0.5
Drop Out Voltage (Typical) 45 @ 500mA
Fixed Output Voltage Option No
PSRR (db) 60
Quiescent Current 2200 µA
Noise (100Hz to 100kHz) (μVrms) 79
Qualification Level Standard

封装选项

Pkg. Type Pkg. Dimensions (mm) Lead Count (#) Pitch (mm)
DFN 3.0 x 3.0 x 0.90 8 0.7

应用方框图

Torque Control System Block Diagram
扭矩控制系统
精密扭矩控制使用具有高精度 AFE 和可靠传感器的 MCU 确保产品质量。
Force Sensor Solution Block Diagram
力传感器系统
用于准确检测和计算应变片测量值的力传感器系统。
Vision AI Gateway Block Diagram
视觉 AI 网关
瑞萨电子的视觉 AI 网关设计提供高速 AI 处理、通过边缘 AI 功能增强价值以及可靠的电源。
RTOS Robot Controller with High-Speed Image Processing Block Diagram
具有高速图像处理能力的 RTOS 机器人控制器
RTOS 机器人控制器增强了 AI 的高速图像处理能力，可用于高级机器人。
Interactive block diagram an industrial motor control system features an MPU and MCU for mutual monitoring, power supply ICs, and delta-sigma modulators.
具备工业网络和功能性安全支持的电机控制系统
该电机控制系统集成了 MPU 和 MCU，可实现高效的工业电机控制和联网。
Smart HMI System with Voice & Display Interfaces Block Diagram
配备语音与显示界面的智能 HMI 系统
搭载 32 位 MCU 的智能 HMI 系统支持 GUI、语音输入/输出、IoT 连接与快速开发工具。
The high-performance surveillance camera interactive block diagram features an MPU design with DRP-AI, delivering powerful AI processing and energy efficiency.
人工智能监控摄像机
具有 DRP-AI 功能的 AI 监控摄像机可通过 4K 成像和低功耗提高安全性。
SMARC SoM Module for RZ MPUs Block Diagram
用于 RZ MPU 的 SMARC SoM
采用 SMARC 2.1 的紧凑型 RZ SoM 配备高速接口、AI、强大的安全性和可扩展性。
HMI SoM with AI Accelerator Block Diagram
具备 AI 加速器的 HMISoM
Smart Range Hood Block Diagram
智能抽油烟机
增强的触摸控制和先进的 MCU 为智能抽油烟机提供卓越的功能和创新。
Industrial CAN Sensor Network Block Diagram
工业 CAN 传感器网络
带 Arm Cortex-M23 MCU 的工业 CAN 网络可确保通信安全可靠，性能强大。
Voice Recognition & Smart Control Block Diagram
智能语音控制家居自动化
语音识别无需动手即可实现设备控制，能够提高卫生水平，并支持多种语言命令。
Iris Scanning Security System Block Diagram
虹膜扫描安防系统
在对安全性要求较高的环境中，虹膜扫描可提高生物识别的安全性和准确性
Interactive block diagram of the resolver motor control system features an MCU, full-bridge FET drivers, buck regulators and RS-485 transceivers.
用于小型工业机器人的旋转变压器电机控制
小型机器人系统提供精确的运动控制、坚固的设计并缩短开发时间。
Voice Activated DALI Lighting Controls Block Diagram
支持语音激活的 DALI 照明控制
单芯片 DALI 照明控制设计，具有多语言语音激活功能，并进行了功耗优化。

当前筛选条件

加载中
加载中

Intersil’s single-output low drop-out voltage (LDO) regulators deliver leading edge performance against our competitors – including max dropout that’s nearly 50% lower and peak-to-peak excursions up to 9 times lower, at a highly competitive price. Watch our 1A ISL80510 go head-to-head with a competitor’s product.

Transcript

Hi, I'm Dhananjay Singh, Product Marketing Manager at Intersil Corporation. Here we are introducing a simple and inexpensive, yet high performance single-output, low dropout voltage regulator. The ISL80510 and ISL80505 comprise a family of new LDOs with 1A and 0.5A continuous current capability in pin-to-pin compatible, 3mm x 3mm DFN packets.

The 1A device operates from 2.2V to 6V, while the 0.5A device can be used from 1.8V to 6V. The output of these devices can be adjusted from 0.8V to 5.5V for a wide range of applications including low power RF amplifiers.

The ISL80510 and ISL80505 are designed to provide lowest dropout and best transient performance for sensitive loads. Their compensation loop is designed in a way to keep flat PSRR response over a wide range of frequencies giving you your added security in noisy conditions.

To help our customers, Intersil has designed a very simple and easy-to-use evaluation board to perform basic evaluation. This is a common evaluation board for both ISL80510 and ISL80505. These are the VIN points and these are the VOUT points. Probe points have been placed close to the IC to minimize middleman errors.

If you notice, we have a bunch of jumpers here to minimize bench work in the lab. This jumper is for enabling or disabling of the device and the series of jumpers are for VOUT setting. Basically, by selecting one of these jumpers, the user is selecting one of the possible output voltages of this volt. Users can select a VOUT setting from one of the fixed possible VOUT settings between 1V and 5V.

Here we are doing a one-on-one comparison between ISL80510 and a pin-to-pin compatible competitors part. Since both devices are pin-to-pin compatible, we can use the same board for a fair comparison. This board has ISL80510 on it, while this board has competitors device. Let's take a look at the outcome when we compare the performance of these two boards after testing under similar conditions.

Soft-start ramp, as you can see on this plot, ISL80510 provides a picture-perfect soft-start and shutdown ramp voltage, while the competitors device shows disturbances in both cases. If we look at dropout, the ISL80510 has a dropout that is almost half of the competitors device operating under similar condition.

Now let's have a look at transient performance. As you can see here, the peak-to-peak in competitors device is almost nine times bigger than what Intersil's device is showing. When compared to similar products in market, Intersil's LDO family provides the best cost performance for your sensitive loads.

For more information about these LDOs or any other power products, please visit our website. Thanks for watching.
