3.6V Fixed Output Voltage Low Iq Current LDO Regulator Evaluation Board

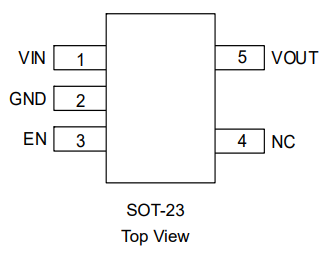

The RTKA214404DE0000BU evaluation board is a simple platform for evaluating the RAA214404 low-dropout regulator (LDO). It provides a view of the SOT23 5-lead package...
概览
描述

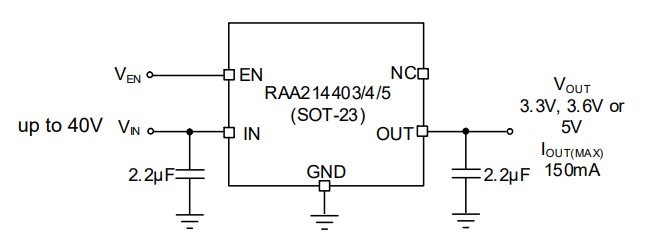

RAA214404 is a low-dropout regulator (LDO) featuring a low-quiescent current and a fixed output voltage of 3.6V. It can efficiently deliver up to 150mA to a load and has a wide input voltage range of up to 40V. This part is available in the SOT23 package.
特性
- Typical low-quiescent current: 3.5µA at no load
- Typical shutdown current: <0.5µA
- Wide input voltage range: up to 40V with 45V line transient tolerance
- Max output current: 150mA
- Output voltage accuracy: ±3% over line, load, and temperature
- Typical dropout voltage: 0.5V at 100mA
- Fixed output voltage options: 3.6V
- Stable with 2.2µF minimum ceramic output capacitor
- Overcurrent and over-temperature protection
- Junction temperature range: -40 °C to 125 °C
产品对比
应用
- Home automation, IoT, and sensors
- 12V/24V/28V bus voltages
- Metering
- MCU power
- Smoke alarms, gas sensors, and other home-sensing devices
- Wired video doorbells and thermostats
- Gas, electric, and water meters
- Power tools and appliances
