描述

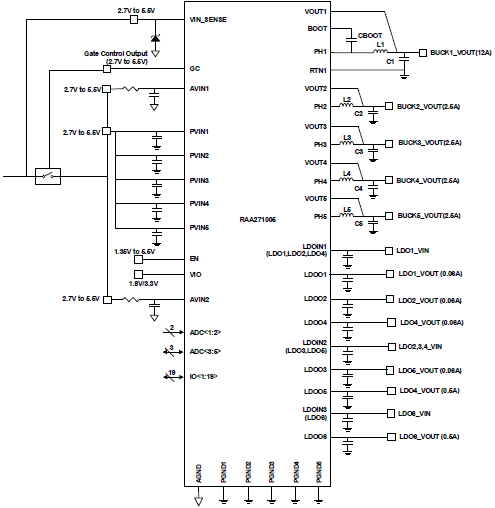

The RAA271005 is a general purpose Power Management IC (PMIC) suitable for R-Car SoC series. It contains five DC/DC switching regulators and six low-drop out linear regulators (LDO). DCDC5 switching regulator can be configured to work in buck mode, or can be configured as a boost.
The RAA271005 PMIC supports low power operation, where three of the switching regulators (Buck3–Buck5) have been optimized to consume low quiescent current.
RAA271005 supports up to ASIL D functional safety, and includes an independent reference for monitoring of the output voltages, dual internal temperature monitors, challenge response watchdog timer, SoC and MCU error pin monitors, reset generator, a dedicated safety-control state machine, and safety shutdown path. An integrated 12-bit ADC monitors all input rails, output rails, internal temperature, and includes additional inputs to monitor external analog sources.

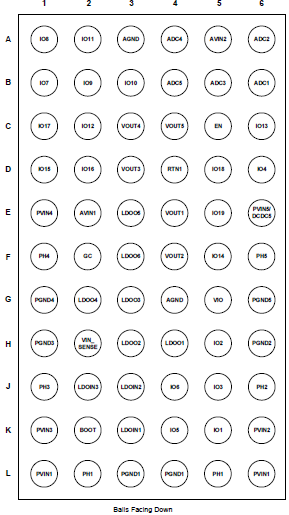

RAA271005 is available in a 6 × 11 BGA package, with 0.65mm pitch. The device is offered as AECQ100 Grade 1 operation, supporting an ambient temperature range of -40°C to +125°C.
See also the RAA271041. This product works together with the RAA271005 to support RCAR-S4.
特性
- Input Voltage Range 2.7V–5.5V
- 5 High Efficiency Switching Regulators with adjustable output voltages
- 12A (Buck1); VOUT from 0.3V to 3.3V
- 2.5A (Buck2–Buck5); VOUT from 0.3V to 3.3V
- Merge-mode 2 × 2.5A regulators = 5A

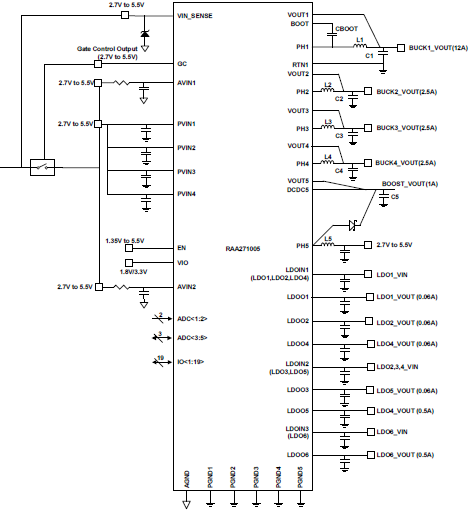

- Buck5 can operate as asynchronous boost
- 6 Linear Drop Out (LDO) Regulators
- 4 × 60mA; VOUT = 1.8V or 3.3V
- 2 × 500mA; VOUT = 0.6V to 3.3V
- Programmable current limits for all bucks
- 12-bit Analog to Digital converter for monitoring with programmable OV/UV thresholds
- Programmable power sequence. Fully supports S4 sequence requirements
- Low-Iq Deep-stop / Always On (AWO) Mode
- Suspend-to-RAM / DDR-backup Mode
- Supports R-Car Soc Activation
- Q&A Watchdog Timer
- Configurable through I2C or SPI interface
- SoC and MCU error pin monitors
- AEC-Q100 Grade 1 qualified
产品对比
应用
- Vehicle Computers
- Communication Gateway
- Domain Server
- Application Server
