描述

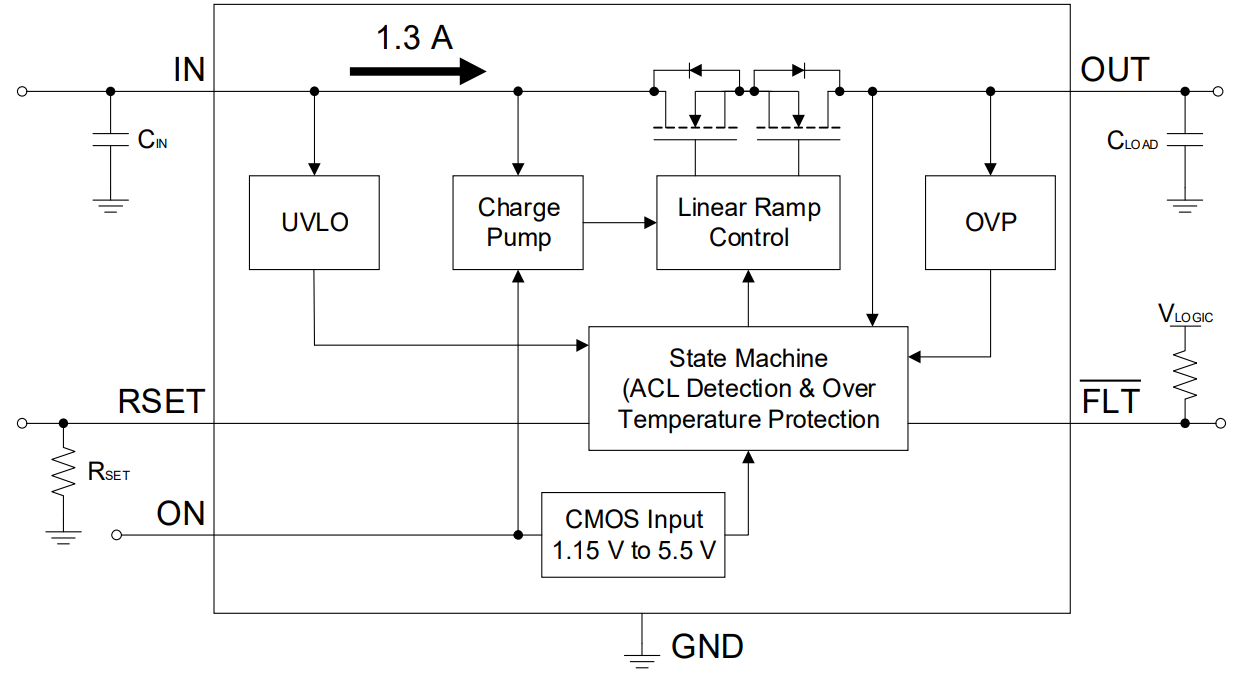

The SLG59H1341C is a self-powered, high-performance 70mΩ nFET load switch designed for high-side power rail applications up to 1.3A. When ON, its internal reverse-current protection quickly opens the switch if a reverse-voltage condition is detected (VOUT > VIN + 50mV). When OFF, an internal back-to-back reverse-current blocking circuit prevents reverse path leakage current.
特性
- Integrated 1.3A Continuous IDS nFET Load Switch
- Integrated Low RDSON nFET switch: 70mΩ
- Input Voltage: 2.5V to 5.5V
- Operating Temperature: -40 °C to 85 °C
- Resistor-adjustable Active Current Limit
- ±10% accuracy for 0.2A to 1.5A Current Limit) Thresholds
- ±15% accuracy for 0.15A to 0.2A Current Limit Thresholds
- Open Drain FLT Signaling
- Output OVP Protection
- Absolute VOUT maximum voltage rating: 28VDC
- Over-temperature Protection
- Under-Voltage Lockout
- True Reverse-Current Blocking
产品对比
应用
设计和开发
软件与工具
开发板与套件
评估
SLG59H1341C Evaluation Board
The SLG59H1341C-EVB board evaluates the SLG59H1341C High Voltage GreenFET Load Switch.
For details on how to use the evaluation board, please refer to the evaluation board user manual included in the datasheet.
Recommended Documents:
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
