概览
描述

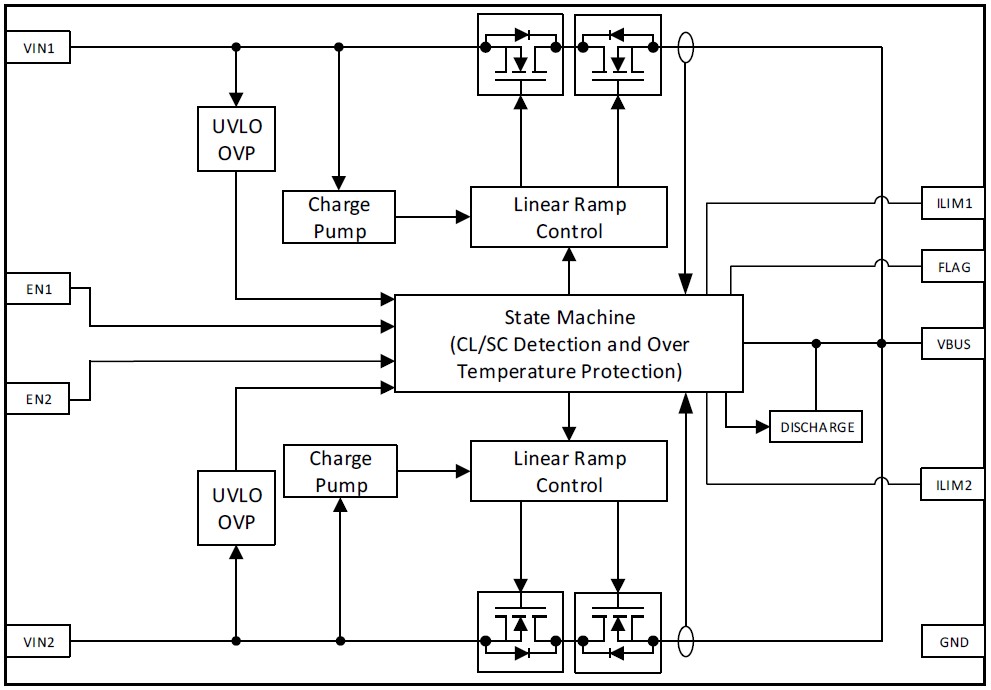

The SLG59H1405V is designed for 5V/12V manual switchover Power MUX applications. It includes one 3A and one 1.25A rated load switch, making it ideal for various systems with multiple power sources. The device offers manual selection, seamless transitions between power inputs, and multiple protection features.
特性
- 5V/3A and 12V/1.25A Load Switches with Common Output
- Wide Operating Input Voltage Range: VIN1: 4V to 5.5V, VIN2: 4V to 13.2V
- Low Typical RDSON: 40 mΩ for Channel 1 and 67mΩ for Channel 2
- Ideal Diode Behavior During Switchover
- True Reverse-Current Blocking
- Individual Channel Enable Control
- Input Under-Voltage Lockout
- Input Over-Voltage Protection
- Over-Temperature Protection
- Resistor-Adjustable Active Current Limit Protection for Each Channel
- Internal Short-Circuit Current Limit
- Open Drain Fault FLAG Output
- Output Discharge When OFF and During Switchover
- Robust ESD Capability
- 2kV HBM and 1kV CDM
- 8kV Air Discharge and 4kV Contact Discharge Under IEC 61000-4-2
- 2.0mm x 2.5mm, 0.5mm pitch, 12L FC-QFN
- Pb-Free/Halogen-Free/RoHS Compliant
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 1.01 MB | |
| 宣传手册 | PDF 5.05 MB 日本語 | |
| 指南 | PDF 2.77 MB 日本語 | |
| 应用说明 | PDF 588 KB | |
4 items
|
||
设计和开发
软件与工具
开发板与套件
评估
SLG59H1405V Evaluation Board
The SLG59H1405V-EVB board evaluates the SLG59H1405V High Voltage GreenFET Load Switch.
For details on how to use the evaluation board, please refer to the evaluation board user manual included in the datasheet.
Recommended Documents:
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
产品选项
当前筛选条件
视频和培训
GreenFET Power Mux Overview
The SLG59H1405V is the newest GreenFET load switch optimized for power mux applications. Learn about all the integrated protection features that add reliability to your design.
