SLG59M1456V Evaluation Board
The SLG59M1456V-EVB board evaluates the SLG59M1456V GreenFET, Single N-Channel, Load Switch.
概览
描述

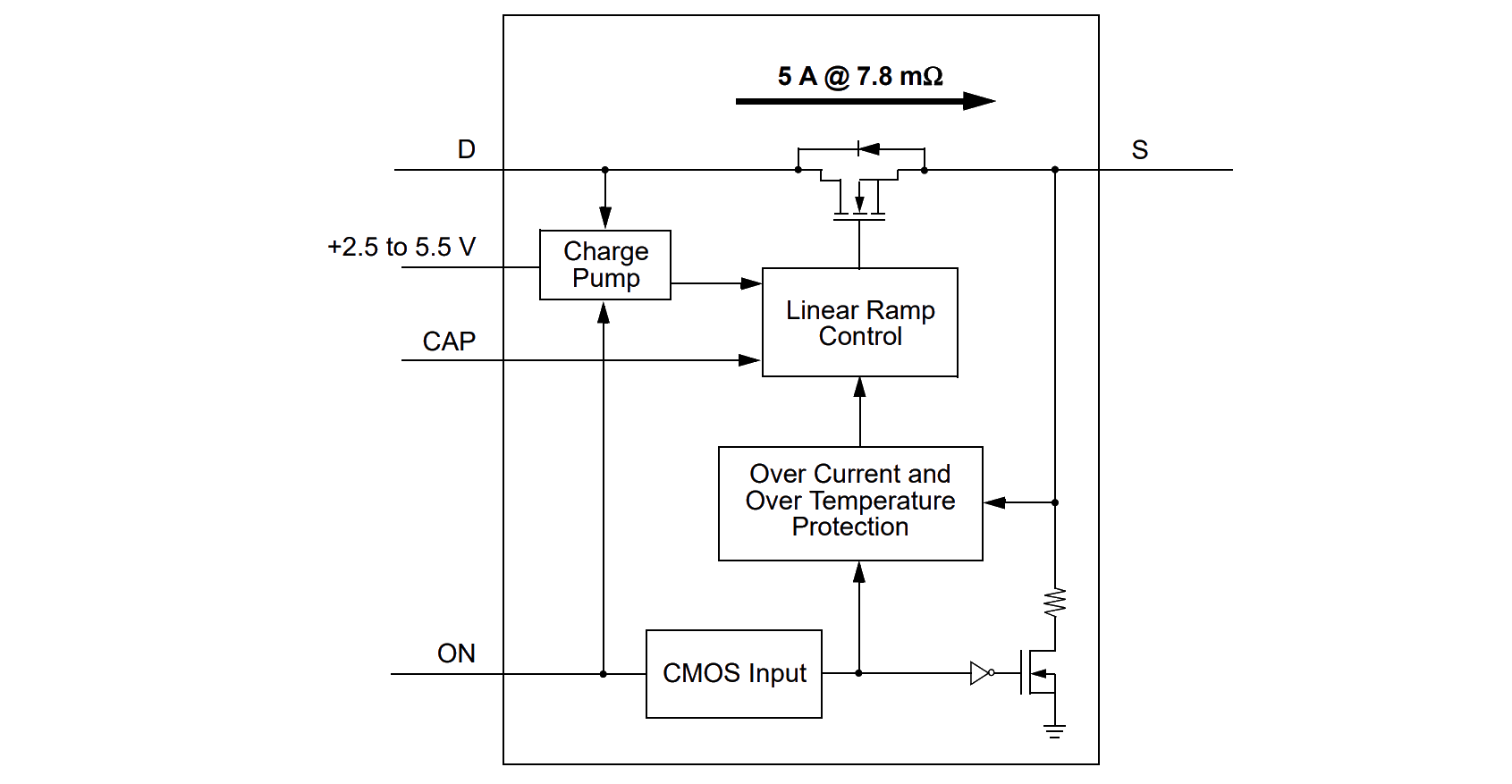

The SLG59M1456V is a 7.8mΩ 5A single-channel load switch that can switch 1V to 5.5V power rails. The product is packaged in an ultra-small 1.5mm x 2.0mm package.
特性
- Optimized for smartphone and notebook/tablet PC applications
- 7.8mΩ RDSON while supporting 5.0A
- Power supply: 2.5V ≤ VDD ≤ 5.5V
- Input voltage range: 1.0V ≤ VD ≤ VDD
- Output voltage slew-rate control by an external capacitor
- Overcurrent and over-temperature protection
- Output discharge circuitry
- Sleep mode current (IDDOFF) in low µA range
产品对比
应用
- Notebook Power Rail Switching
- Tablet Power Rail Switching
- Smartphone Power Rail Switching
