概览
描述

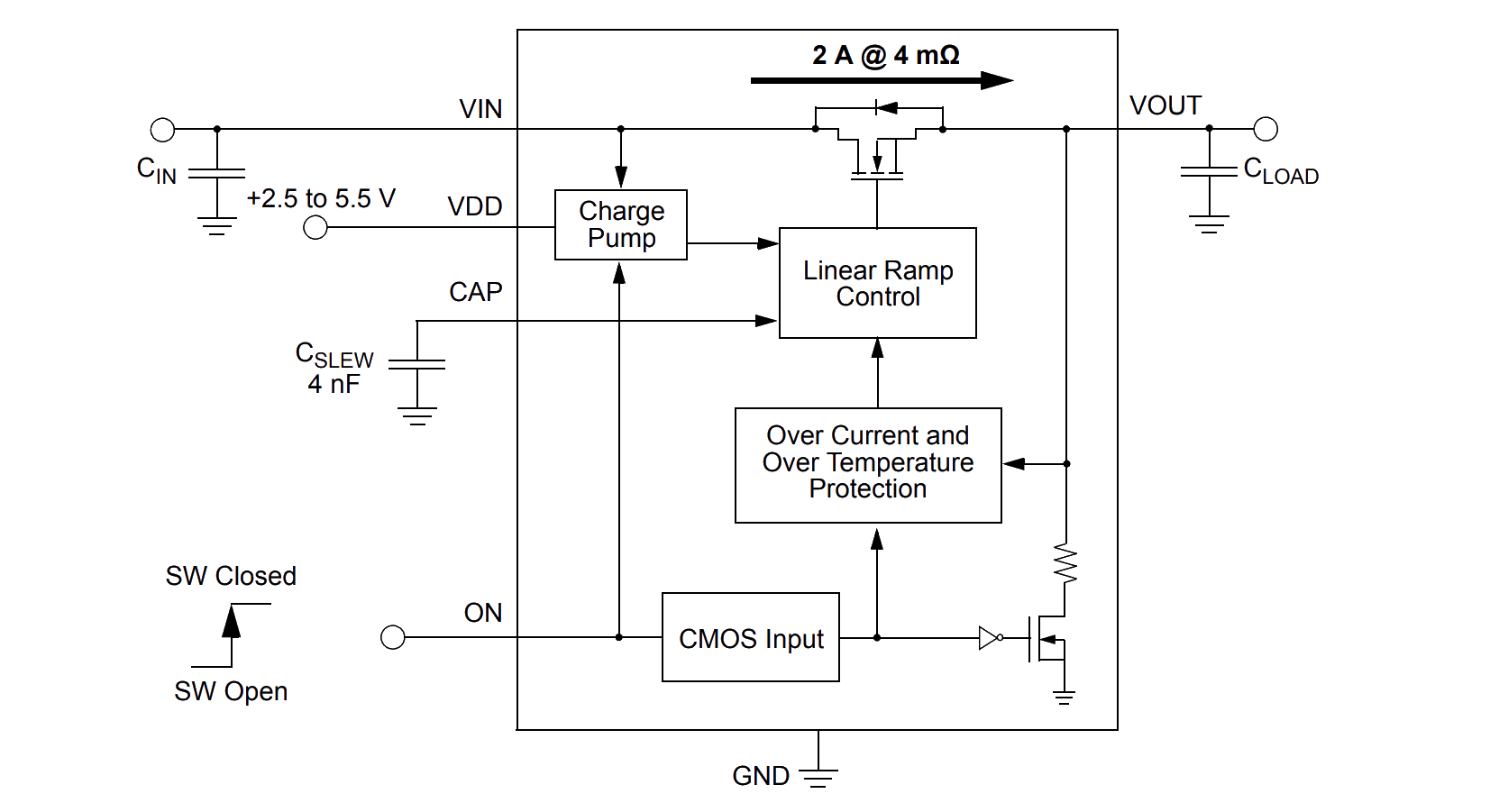

Operating from a 2.5V to 5.5V power supply and fully specified over the -40 °C to 85 °C temperature range, the SLG59M1713V is a high-performance 4mΩ, 2A single‑channel nFET load switch with adjustable inrush current control which is achieved by adjusting the VOUT slew rate with an external capacitor. Using a proprietary MOSFET design, the SLG59M1713V achieves a stable 4mΩ RDSON across a wide input/supply voltage range. Incorporating two‑stage current protection as well as thermal protection, the SLG59M1713V is designed for all 0.8V to 5.5V power rail applications. Using proprietary technology for high‑current operation, the SLG59M1713V is packaged in a space-efficient, low thermal resistance, RoHS-compliant 1.6mm x 2.5mm STQFN package.
特性
- Optimized for all high-side power-rail control applications in adapter-powered devices, set-top boxes, tablet PCs, hard-disk and solid-state drives, and PCI/PCIe cards
- 4mΩ RDSON
- Maximum continuous FET current: 2A
- Supply voltage: 2.5V ≤ VDD ≤ 5.5V
- Wide input voltage range: 0.8V ≤ VIN ≤ VDD
- Capacitor-adjustable VOUT slew-rate control
- Two-stage overcurrent protection:
- Fixed-threshold, 4A Active Current Limit
- Fixed 0.5A Short-circuit Current Limit
- Thermal shutdown protection
- Internal fast VOUT discharge
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 1022 KB | |
| 宣传手册 | PDF 5.05 MB 日本語 | |
| 指南 | PDF 2.77 MB 日本語 | |
| 其他 | PDF 383 KB | |
4 items
|
||
设计和开发
软件与工具
开发板与套件
评估
SLG59M1713V Evaluation Board
The SLG59M1713V-EVB board evaluates the SLG59M1713V GreenFET, Single N-Channel, Load Switch.
For details on how to use the evaluation board, please refer to the evaluation board user manual included in the datasheet.
Recommended Documents:
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
产品选项
当前筛选条件
视频和培训
Introduction to Ultra Low RDSon Load Switches
Video List
