SLG59M1714V Evaluation Board
The SLG59M1714V-EVB board evaluates the SLG59M1714V GreenFET, Single N-Channel, Reverse Blocking Load Switch.
For details on how to use the evaluation board, please...
特色文件:
概览
描述

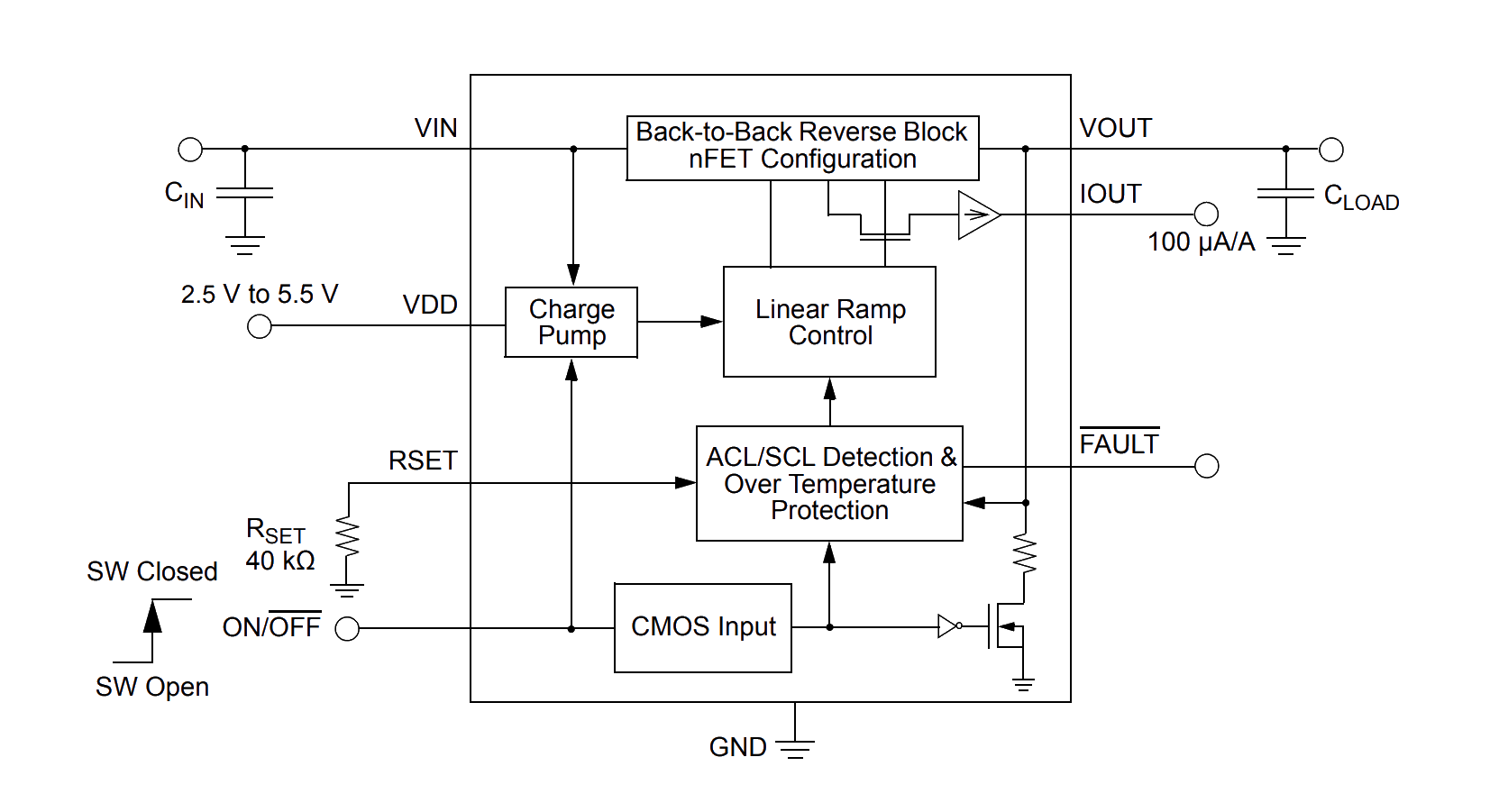

Operating from a 2.5V to 5.5V power supply, the SLG59M1714V is a 15mΩ, 4A single-channel load switch with back-to-back reverse‑current blocking when the power switch is disabled. With a fixed VOUT slew rate of 2.8V/ms, inrush current is internally limited. Incorporating two-stage current protection as well as thermal protection and fault signaling, the SLG59M1714V is designed for all 0.8V to 5.5V power rail applications. Fully specified over the -40 °C to 85 °C temperature range, the SLG59M1714V is packaged in a space-efficient, low thermal resistance 1.6mm x 2.5mm STQFN package.
特性
- Optimized for all high-side power-rail control applications in adapter-powered devices, set-top boxes, tablet PCs, hard-disk and solid-state drives, and PCI/PCIe cards
- 15mΩ RDSON
- Back-to-back, reverse-current blocking (when OFF)
- Maximum continuous FET current: 4A
- Supply voltage: 2.5V ≤ VDD ≤ 5.5V
- Wide input voltage range: 0.8V ≤ VIN ≤ VDD
- Fixed VOUT slew rate: 2.8V/ms
- Two-stage overcurrent protection:
- Resistor-adjustable active current limit
- Fixed 0.5A short-circuit current limit
- Thermal shutdown protection
- Analog FET current monitor output: 100μA/A
- Open-drain FAULT signaling
产品对比
应用
- Notebook power rail switching
- Tablet power rail switching
- Smartphone power rail switching
