封装信息
| CAD 模型: | View CAD Model |

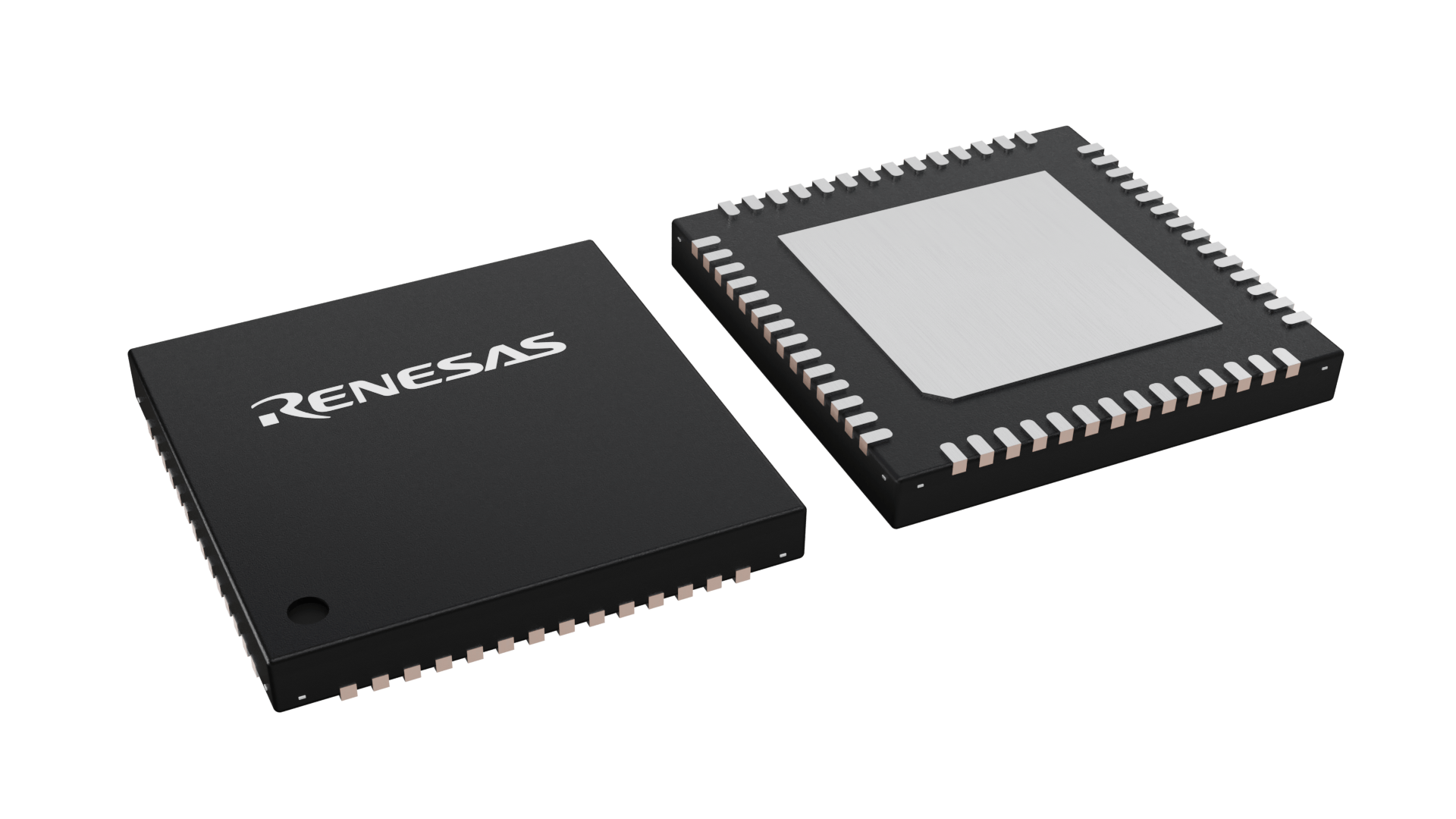

| Pkg. Type: | QFN |
| Pkg. Code: | LOE |
| Lead Count (#): | 56 |
| Pkg. Dimensions (mm): | 8.0 x 8.0 x 0.95 |
| Pitch (mm): | 0.5 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | EAR99 |
| HTS (US) | 8542.39.0090 |
| RoHS (RAA215300A2GNP#HA1) | 下载 |
产品属性
| Lead Count (#) | 56 |
| Carrier Type | Reel |
| Moisture Sensitivity Level (MSL) | 3 |
| Switch Control | On/Off Switch (PWRON) {see datasheet} |
| Pb (Lead) Free | Yes |
| Pb Free Category | Pb-Free 100% Matte Tin Plate w/Anneal-e3 |
| Temp. Range (°C) | -40 to +105°C |
| Country of Assembly | MALAYSIA, TAIWAN, THAILAND |
| Country of Wafer Fabrication | TAIWAN |
| Advanced Features | Programmable NVM for Power Up/Down Sequencing and Default Output Voltages, DDR VTT_REF, Sleep modes, Spread Spectrum, WatchDog Timer, RTC with Coin Cell Battery/SuperCap Charger |
| Battery Interface | Yes, integrated charger |
| Bus Voltage (Max) (V) | 5.5 |
| Comm. Interface | I2C |
| Function | 9-ch PMIC |
| GPIOs (#) | 6 |
| Input Voltage (Max) (V) | 5.5 |
| Input Voltage (Min) (V) | 2.75 |
| Input Voltage Range (V) | 2.75 - 5.5 |
| Integrated Battery Charger | Yes, Coin cell/super-capacitor battery charger |
| Integrated step-down DC/DC Converter Channels (#) | 6 |
| LDOs | 3 |
| Length (mm) | 8 |
| Linear Output | No |
| MOQ | 1000 |
| Output Current Max (A) | 5 |
| Outputs (#) | 9 |
| Package Area (mm²) | 49 |
| Parametric Category | Multi-Channel Power Management ICs (PMICs) |
| Pitch (mm) | 0.5 |
| Pkg. Dimensions (mm) | 8.0 x 8.0 x 0.95 |
| Pkg. Type | QFN |
| Price (USD) | $5.48034 |
| Processor Name | RZ G1E, G2L, V2L, G2LC, G3S, G3E, G3L, G3SE, V2H, V2N |
| Processor Supplier | Renesas |
| Product Type | MPU |
| Prog. Interface | I2C |
| Qty. per Carrier (#) | 260 |
| Qty. per Reel (#) | 0 |
| Qualification Level | Standard |
| Requires Terms and Conditions | Does not require acceptance of Terms and Conditions |
| Step-up DC/DC converter Channels (#) | 0 |
| Switching Frequency (MHz) | 0.769 - 1.54 |
| Switching Regulators | 6 |
| Tape & Reel | No |
| Thickness (mm) | 0.95 |
| Total step-down DC/DC converter channels (#) | 6 |
| USB-Power Management | No |
| VIN Range (V) | 2.7 - 5.5 |
| Width (mm) | 8 |
有关 RAA215300 的资源
描述
RAA215300 是一款高性能、低成本的 9 通道 PMIC，专为 32 位和 64 位 MCU 和 MPU 应用而设计。 该 PMIC 支持 DDR3、DDR3L、DDR4 和 LPDDR4 内存供电接口。 内部补偿稳压器、内置实时时钟 (RTC)、32kHz 晶体振荡器和钮扣电池充电器为系统级模块 (SOM) 应用提供了高度集成、占地面积小的电源解决方案。 扩频特性和超声波模式为噪声敏感型射频和音频应用提供了有效的解决方案。
如需了解更多信息或申请文件，请联系您当地的瑞萨电子销售 代表。
