封装信息
| CAD 模型: | View CAD Model |

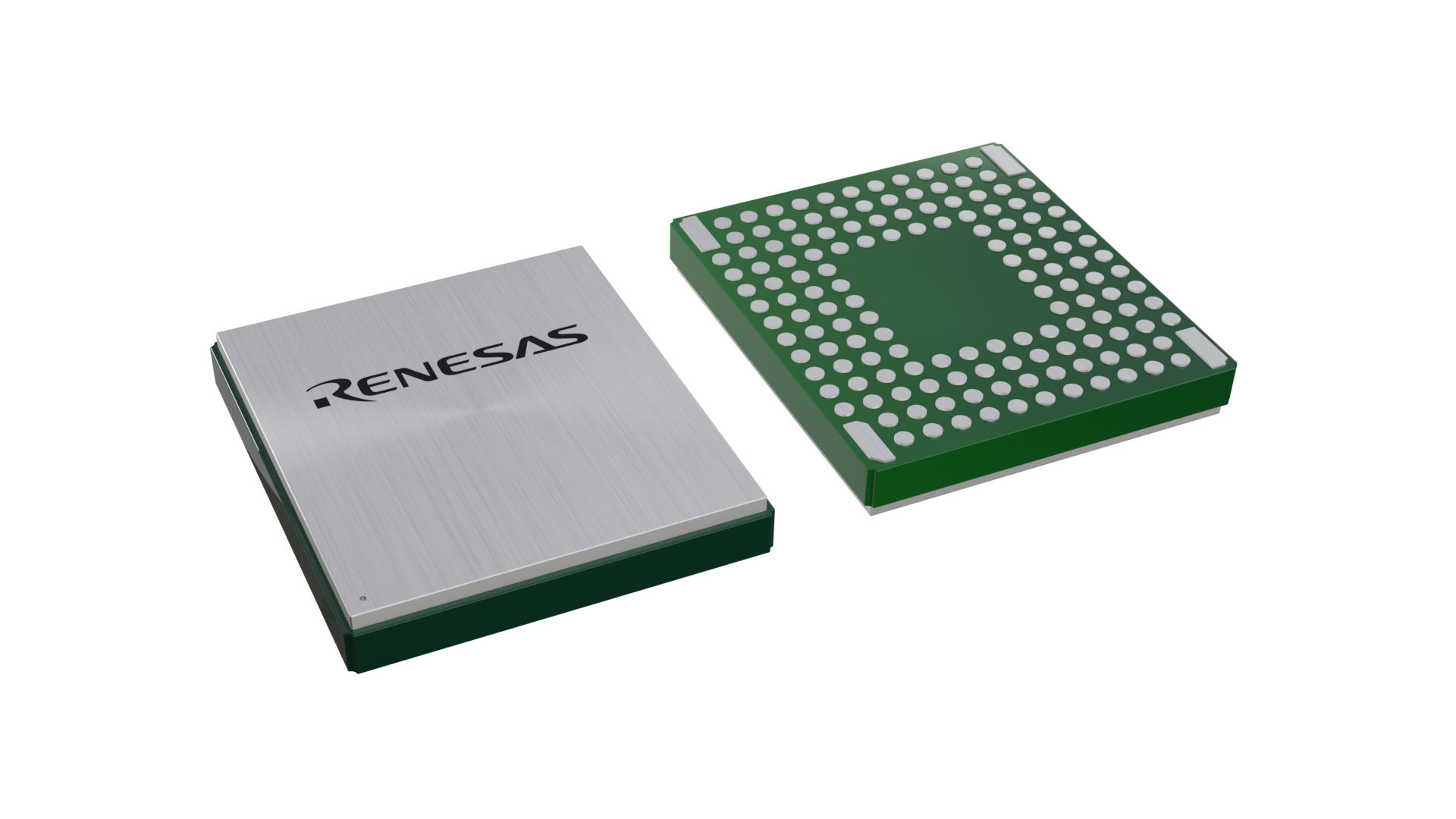

| Pkg. Type: | CLGA |
| Pkg. Code: | pkg_11862 |
| Lead Count (#): | 144 |
| Pkg. Dimensions (mm): | 15 x 13.3 x 2.03 |
| Pitch (mm): | 1 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | |
| HTS (US) |
产品属性
| Pkg. Type | CLGA |
| Lead Count (#) | 144 |
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| Advanced Features | 8M pixel for UHD, 12bit resolution@60fps, HDR Assist, Autofocus Assist |
| Application | CMOS IMAGE SENSOR |
| Device Functions | CMOS IMAGE SENSOR |
| Family Name | CMOS IMAGE SENSOR |
| Function | 12bitADC, MIPI-CSI2, SLVS, I2C |
| Length (mm) | 15 |
| MOQ | 1 |
| Pkg. Dimensions (mm) | 15 x 13.3 x 2.03 |
| Supply Voltage (V) | 1.2 - 2.8 |
| Target applications | Visual equipment |
| Thickness (mm) | 2.03 |
| Width (mm) | 13.3 |
有关 RAA462113FYL#AC2 的资源
描述
The RAA462113FYL is an 8M BSI CMOS image sensor for security applications. The sensor features High Dynamic Range (HDR) and Phase Detection Autofocus Assist (PDAF Assist) functions for performance at high contrast and variable ranges; it supports both MIPI-CSI2 or SLVS output formats, with support to 60fps (12-bit digital output).
