封装信息
| CAD 模型: | View CAD Model |

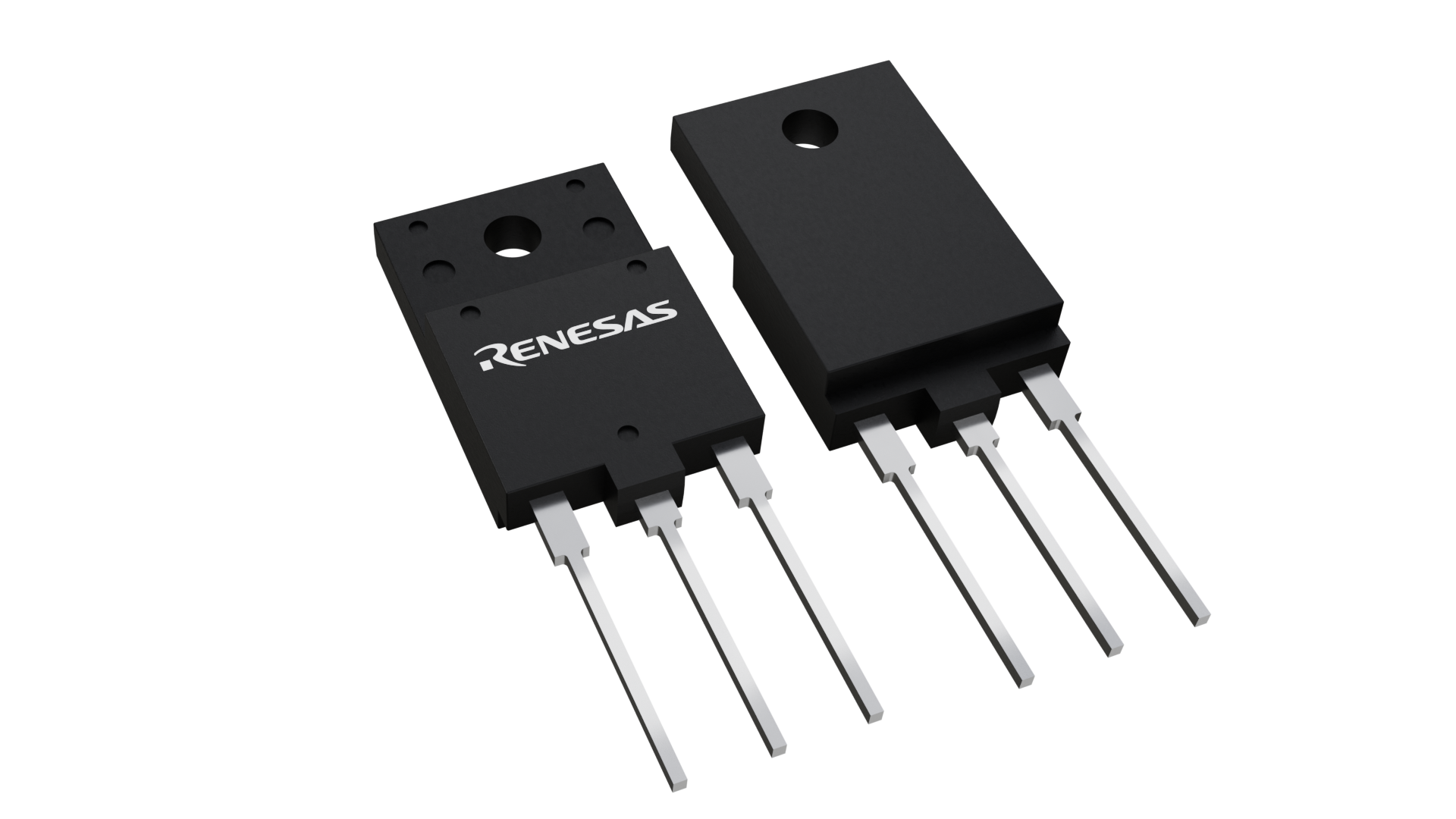

| Pkg. Type: | TO-3PF |
| Pkg. Code: | pkg_9315 |
| Lead Count (#): | 3 |
| Pkg. Dimensions (mm): | |
| Pitch (mm): |
环境和出口类别
| Pb (Lead) Free | Yes |
| RoHS (RJP60V0DPM-80#T2) | 英语日文 |
| Moisture Sensitivity Level (MSL) | |
| ECCN (US) | |
| HTS (US) |
产品属性
| Pkg. Type | TO-3PF |
| Lead Count (#) | 3 |
| Carrier Type | Tube |
| Pb (Lead) Free | Yes |
| Application | Inverter |
| Channels (#) | 1 |
| IC @100 °C (A) | 22 |
| IC @25 °C (A) | 45 |
| Ic (Peak) (A) | 90 |
| Lead Compliant | No |
| MOQ | 1 |
| Mounting Type | Through Hole |
| Pch (W) | 60 |
| Tape & Reel | No |
| VCE (sat) (V) | 1.5 |
| VCES (V) | 600 |
| tf (Typical) (µs) | 0.07 |
| tsc (μs) | 6 |
有关 RJP60V0DPM-80 的资源
描述
Support is limited to customers who have already adopted these products.
IGBT product series for Power Factor Correction (PFC), UPS, solar power generation, and welding applications, recommended for 50 to 100 kHz frequencies, and not guaranteed against short circuit.
