Light-to-Digital Output Sensor with I²C Interface Evaluation Board
The ISL76683EVAL1Z evaluation board is an RoHS compliant evaluation board designed for exploring the operation of the ISL76683 light-to-digital output sensor. The...
概览
描述

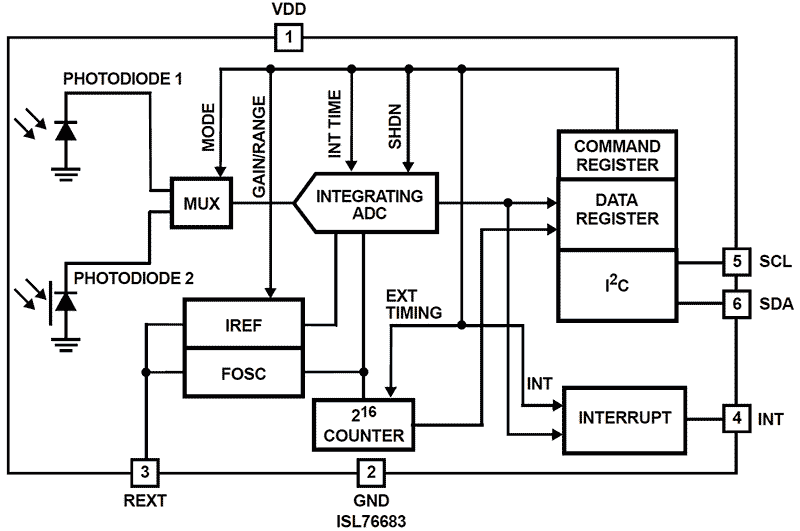

The ISL76683 is an integrated light sensor with an internal integrating ADC intended for automotive applications. The ADC provides 16-bit resolution and is capable of rejecting 50Hz and 60Hz flicker caused by artificial light sources. The I2C interface provides four user-programmable lux sensitivity ranges for optimized counts/lux in a variety of lighting conditions. The I2C interface also provides multi-function control of the sensor and remote monitoring capabilities. In normal operation, power consumption is less than 300μA. Furthermore, a software power-down mode controlled with the I2C interface reduces power consumption to less than 1μA. The ISL76683 supports twin (upper and lower) user-programmed thresholds and provides a hardware interrupt that remains asserted low until the host clears it with the I2C control interface. The ISL76683 is designed to operate on supplies from 2.5V to 3. 3V and is AEC-Q100 qualified and specified for operation across the -40 °C to +105 °C (Grade 2) ambient temperature range. To achieve this, the ISL76683 is packaged in a special extended temperature clear package.
特性
- Range select with I2C
- Range 1 = 0 lux to 1000 lux
- Range 2 = 0 lux to 4000 lux
- Range 3 = 0 lux to 16000 lux
- Range 4 = 0 lux to 64000 lux
- Human eye response (540nm peak sensitivity)
- Temperature compensated
- 16-bit resolution
- Adjustable sensitivity: up to 65 counts per lux
- User-programmable upper and lower threshold interrupt
- Simple output code, directly proportional to lux
- IR + UV rejection
- 50Hz/60Hz rejection
- 2.5V to 3.3V supply
- 6 Ld ODFN (2.1mm x 2mm)
- AEC-Q100 qualified
- Pb-free (RoHS compliant)
产品对比
应用
- Automotive ambient light sensing
- Backlight control
- Lighting controls
设计和开发
软件与工具
开发板与套件
带远程信息处理板的 TFT 仪表盘参考设计
该参考设计主要用于简化高级汽车显示屏的开发。它集成了蓝牙®低功耗连接、手机屏幕的 Wi-Fi 投屏功能，并能调节 TFT 屏幕和摄像头画面的亮度。它采用 RH850/D1M1A 高性能 MCU，内核为 G3M，运行频率为 240MHz，支持 2D 和 2.5D 图形，并配备 4MB 闪存、512KB RAM 和 32x1.2MB 视频...
可在云上实验室使用
使用我们基于 PC 的 GUI，无需物理板即可在虚拟实验室中立即开始配置和测试设计
光转数字信号输出传感器 Pmod™ 板
QCIOT030 ISL76683EVZ 电路板支持对 ISL76683 光转数字信号输出传感器进行快速原型设计，以进行定制系统设计。 ISL76683 是一款带有内部 ADC 的集成光传感器，提供四种用户可编程的勒克斯灵敏度范围，可在各种照明条件下优化性能。 其 I2C 接口支持多功能控制和远程监控，而软件省电模式可将功耗降至...
模型
ECAD 模块
点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。
产品选项
当前筛选条件
视频和培训
Automotive Grade Ambient Light Sensors
The ISL76xx family features the first transparent package qualified for -40 to 105 degrees Celsius.
Transcript
Another area that Intersil has ICs is ambient light sensors. In the past, we've had a large market share in portable devices like handsets, cell phones, cameras, etc. with our ambient light sensors. These devices are now migrating into the vehicle. So, there's a few key areas that they're used. They're used for adjusting the brightness on the lighting on your dashboards. They're also used within the mirrors in the vehicle where there is a sensor at the back of the mirror and a sensor now in the front of the mirror, where you actually, you detect the difference in light coming from headlights before you or from behind you. So, our ambient light sensors are designed specifically to meet automotive requirements. We are the only ambient light sensor supplier worldwide that meets the full requirements up to a 105 °C for our ambient light sensor packaging. All our competitors, the best they can get is up to 85 °C.
So, if you have an application where your ambient light sensor is on your dashboard or at the back of the mirror, overtime that will degrade with performance if it's only rated to 85 °C. So, our devices today are the only ones in the market rated to actually meet that requirement.
