Evaluation Kit for ZSSC3230
The ZSSC3230 SSC Evaluation Kit contains the hardware needed for configuration, calibration and evaluation of the ZSSC3230 capacitive sensor signal conditioning (SSC)...
概览
描述

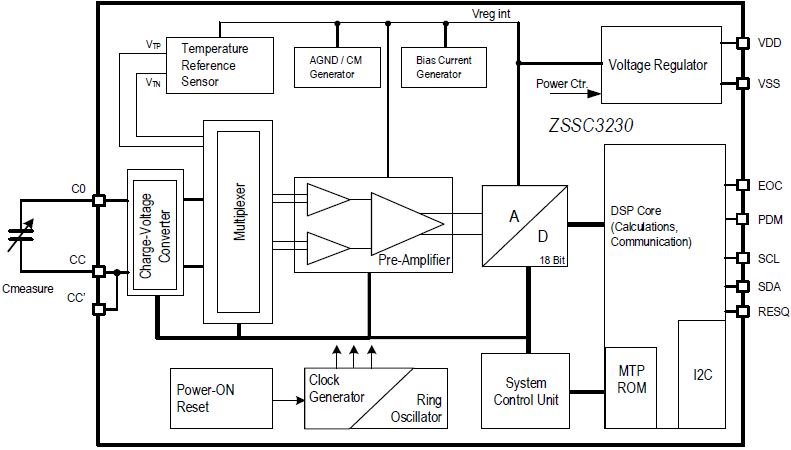

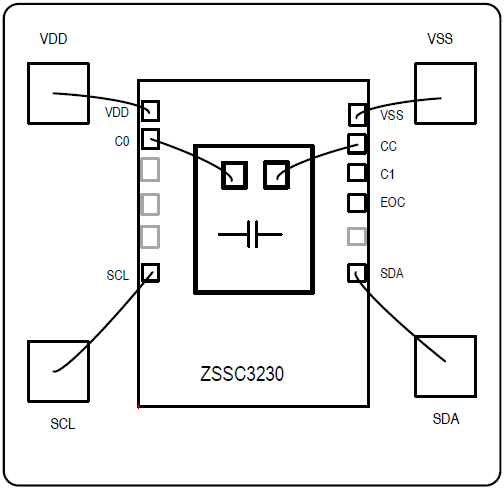

The ZSSC3230 is a CMOS integrated circuit for accurate capacitance-to-digital conversion and sensor-specific correction of capacitive sensor signals. Digital compensation of sensor offset, sensitivity, and temperature drift is accomplished via an internal digital signal processor running a correction algorithm with calibration coefficients stored in a non-volatile, multiple-time programmable (MTP) memory. Programming the ZSSC3230 is simple via the serial interface. The interface is used for the PC-controlled calibration procedure, which programs the set of calibration coefficients in memory. The ZSSC3230 is configurable for capacitive sensors with capacitances up to 30pF and will provide a scalable up to 18-bit output resolution. It is compatible with single-ended capacitive sensors. Measured and corrected sensor values can be output as I²C (≤ 3.4MHz).
The ZSSC3230 provides accelerated signal processing, increased resolution, and improved noise immunity to support high-speed control, safety, and real-time sensing applications with the highest requirements for energy efficiency.
特性
- Supply Voltage 1.68 to 3.6V
- Low current consumption with 1.3µA at 1 sample per second
- Maximum target input capacitance: 30pF
- Programmable capacitance span and offset
- High sampling rate with 430Hz at 14-bit resolution
- ADC resolution: Adjustable in speed and resolution, 18-bit in maximum
- Internal auto-compensated temperature sensor, not stress sensitive
- Programmable measurement sequence, single shot and automatic cycling of measurements with end-of-sequence interrupt output
- Oversampling modes by internal averaging
- Interrupt features
- Build in NVM for configuration and free space for arbitrary user data
- Small die size
- External reset pin (low active)
- No external trimming components required
- Highly integrated CMOS design

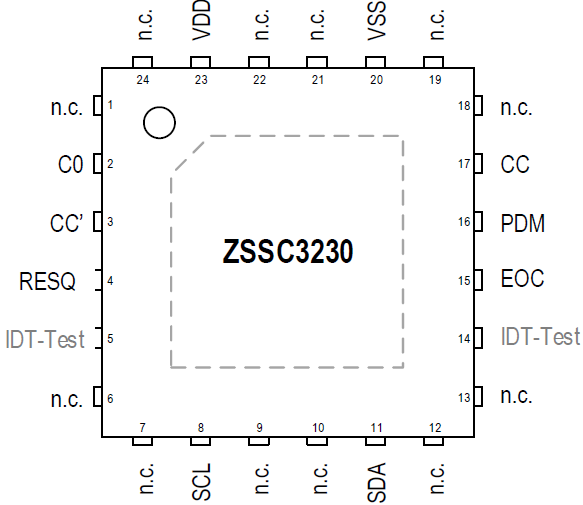

- Package: Die and 24-VFQFPN
产品对比
应用
文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 概览 | PDF 2.92 MB 日本語 | |
| 指南 | 7Z 1.21 MB | |
| 手册 - 硬件 | PDF 3.83 MB | |
| 指南 | PDF 1.02 MB | |
| 技术摘要 | PDF 647 KB | |
5 items
|
||
设计和开发
软件与工具
开发板与套件
ZSSC3230 电容式传感器评估板
US082-ZSSC3230EVZ Pmod™ 板展示了 ZSSC3230 的功能和性能。ZSSC3230 是一款 CMOS 集成电路，能够实现高精度的电容到数字信号转换，并对电容式传感器信号进行专用校准与修正。
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
产品选项
当前筛选条件
视频和培训
ZSSC3230 Sensor Signal Conditioners for Capacitive Sensing Applications
This video introduces the ZSSC3230, the newest energy efficient and highly precise 18-bit sensor signal conditioners (SSCs) from Renesas. Its combination of best-in-class signal conditioning, low power consumption and small size makes it ideal for use with humidity, pressure, level and other smart capacitive sensor modules that are included in a variety of consumer, medical and industrial applications, such as HVAC systems, weather stations, smart meters and automated smart building systems.
