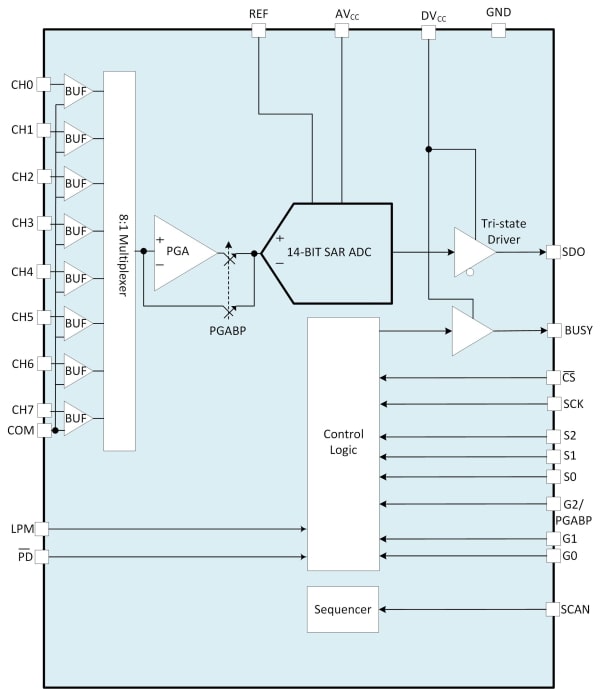

The ISL73148SEH is a radiation hardened, high-precision, 8-Channel 14-Bit 900/480ksps SAR analog-to-digital converter (ADC) with an integrated Programmable Gain Amplifier (PGA) that features an SNR of 83dBFS and dissipates only 90mW when operating from a 5V supply.
The product features 900kSPS throughput with no data latency and features excellent linearity and dynamic accuracy. The ISL73148SEH provides a high-speed SPI-compatible serial interface that supports logic ranging from 2.2V to 3.6V using a separate digital I/O supply pin. The integrated PGA has discrete gain steps of 1, 2, 3, 4, 6, 8, 12, and 16 and is controlled by external pin configurations.
The ISL73148SEH provides a separate power-down pin that reduces power dissipation to 115µW. The analog input signal range is determined by an external reference.
The ISL73148SEH operates across the military temperature range from -55 °C to +125 °C and is available in a 14Ld hermetically sealed Ceramic Dual Flat-Pack (CDFP) package.
特性
- 900kSPS throughput rate with PGA bypass 480ksps with the PGA enable all with no data latency
- Excellent linearity: ±0.5 LSB DNL, ±1.5 LSB INL
- No missing codes
- Low noise: 83dB SNR
- 5V AVCC analog supply
- Separate 2.2V to 3.6V digital I/O supply
- Low power: 90mW at 900kSPS
- AVCC = 5V, DVCC = 2.5V
- Power-down mode with 115µW power consumption
- High-speed SPI-compatible serial I/O
- Full military temperature range operation
- TA = -55 °C to +125 °C
- Radiation acceptance testing
- LDR (0.01rad(Si)/s): 75krad(Si)
- SEE hardness (see SEE report for details)
- No SEB/SEL LETTH (AVCC = 6.3V): 86MeV•cm2/mg
- No SEFIs at LET 86MeV•cm2/mg
- Qualified to Renesas Rad Hard QML-V Equivalent Screening and QCI flow (R34TB0001EU)
- All screening and QCI is in accordance with MIL-PRF- 38535L Class-V
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 2.07 MB | |
| 宣传手册 | PDF 5.41 MB 日本語 | |
| 技术摘要 | PDF 340 KB | |
| 报告 | PDF 621 KB | |
| 应用说明 | PDF 514 KB | |
| 应用说明 | PDF 1.47 MB | |
| 报告 | PDF 1.01 MB | |
| 应用说明 | PDF 224 KB | |
8 items
|
||
设计和开发
软件与工具
开发板与套件
评估
Rad Hard 14-bit 900/480ksps SAR ADC Evaluation Board (5V)
The ISL73148SEHEV1Z board evaluates the operation of the Renesas ISL73148SEH radiation hardened 14-Bit 900/480ksps SAR ADC. This evaluation board is intended to be used with the RHADC-FMCEV1Z data capture board.
The ISL73148SEH device on the evaluation board supports operation of the...
Recommended Documents:
评估
Radiation Tolerant Precision SAR ADC Evaluation Platform
The radiation hardened precision SAR ADC evaluation system enables the evaluation of the Renesas portfolio of low-power, high-performance Successive Approximate Register (SAR) Analog-to-Digital Converters (ADC). The evaluation system uses the iRADAnalyzer GUI, which displays all pertinent data...
Recommended Documents:
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
产品选项
当前筛选条件
视频和培训
ISL73148SEH Rad-Hard 14-bit SAR ADC Overview
Overview of the ISL73148 900KSPS, 8-Channel, SAR ADC with Integrated PGA. Highest performance rad-hard precision ADC for telemetry and sensing applications.
