概览
描述

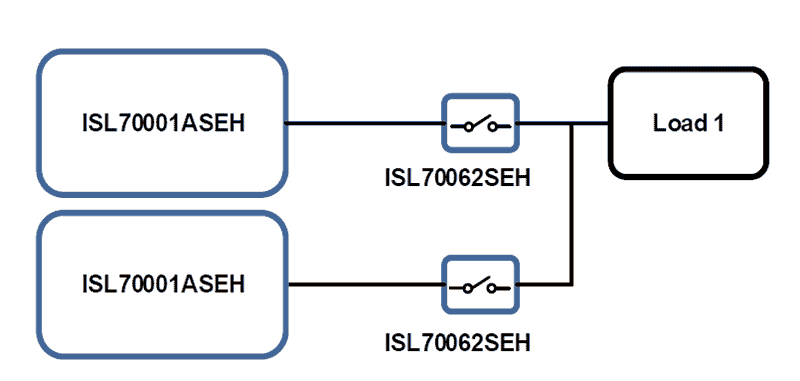

The ISL70062SEH is a radiation hardened single channel load switch featuring ultra-low rON and controlled rise time. This device uses an NMOS pass device as the main switch that operates across an input voltage range of 0V to (VCC -2V) and can support a maximum of 10A continuous current. The device has a VCC pin to power the logic and driver. The VCC voltage range is 3V to 5.5V. Simple ON/OFF digital control inputs make the device capable of interfacing directly with low voltage control signals from an FPGA, MCU, or processor. Additional features include reverse current protection to stop current from flowing toward the input when the output SWO voltage increases above the input SWI voltage, a selectable 100Ω MOSFET to discharge the output, and Undervoltage Lockout (UVLO) protection that keeps the switch OFF when the VCC voltage is too low. The ISL70062SEH device operates across the military temperature range from -55 °C to +125 °C and is available in a 14 Ld hermetically sealed Ceramic Dual Flatpack (CDFP) package or in die form.
特性
- Electrically screened to DLA SMD 5962-19212
- Integrated high-speed load switch - Turn-off time of 3µs
- Ultra-low ON-resistance (rON) of 25mΩ typical
- Continuous 10A switch current
- Controlled rise time to minimize inrush current
- Reverse current protection
- Simple ON/OFF logic control
- Undervoltage lockout
- Selectable 100Ω discharge MOSFET
- Radiation acceptance testing
- HDR (50-300rad(Si)/s): 100krad(Si)
- LDR (0.01rad(Si)/s): 75krad(Si)
- SEE hardness (see SEE report for details) - No SEB/SEL LETTH, SWI, SWO, ON, DON = 6.7V: 86MeV•cm2/mg
产品对比
应用
设计和开发
软件与工具
开发板与套件
参考设计
Renesas Rad Hard Power Management Reference Design for AMD's Space Grade XQRKU060
Over the last decade, satellites and spacecraft have seen an exponential increase in the need for onboard data processing and storage demands. Additionally, major satellite manufacturers have recently announced their latest satellites to be modular, fully digital, and capable of in-orbit...
评估
Radiation Hardened 10A NMOS Load Switch Evaluation Board
The ISL70062SEHEV1Z evaluation board provides a quick and easy method to evaluate the unique ISL70062SEH 10A NMOS load switch IC. The IC is a radiation hardened, single-channel load switch featuring ultra-low rON and controlled turn-on rise time for use in space power supply switching...
Recommended Documents:
评估
Voltage Monitor Evaluation Kit
The ISL73141VMREFEVKIT1Z evaluation kit and iRADNavigator software GUI are used to demonstrate the ISL73141SEH 14-bit SAR ADC in a voltage monitoring application.
The ISL73141VMREFEV1Z voltage monitor board uses the ISL73141SEH radiation hardened 14-bit 1000ksps SAR ADC paired with the
Recommended Documents:
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
产品选项
当前筛选条件
视频和培训
Introduction to Ultra Low RDSon Load Switches
Video List
