Radiation Tolerant SP2T RF Switch, 50MHz to 6000MHz Evaluation Board
The ISL71934MEVAL1Z evaluation board provides a quick and easy method for evaluating the ISL71934M radiation tolerant SP2T RF switch. All aspects of the switch can be...
概览
描述

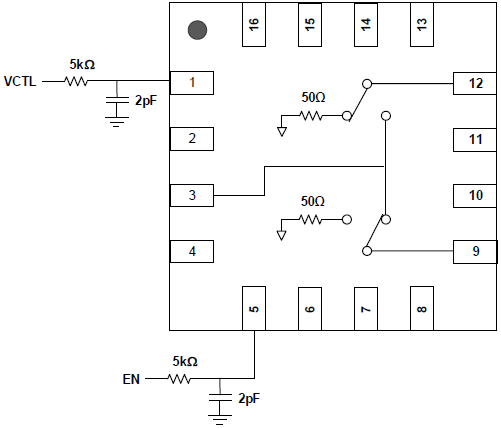

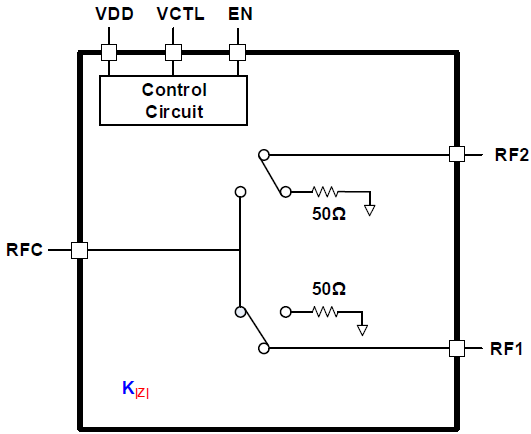

The ISL71934M is a radiation tolerant, low insertion loss, 50Ω SP2T absorptive RF switch designed for a multitude of wireless and communications applications. This device covers a broad frequency range from 50MHz to 6000MHz. In addition to providing low insertion loss, the device delivers high linearity and high isolation performance while providing a constant 50Ω termination to the unused input. The ISL71934M features patented Constant Impedance Technology which reduces transients during switching events, allowing the impedance match to stay constant.
The ISL71934M is rated for Total Ionizing Dose (TID) up to 30krad(Si) and Single Event Latch-up and Burnout up to 43MeV∙cm²/mg. The device operates over the full military temperature range of -55 °C to +125 °C and uses a NiPdAu plated uPPF roughened lead frame.
特性
- High isolation – 70dB at 1GHz, 65dB at 4GHz
- High linearity – IIP2 = 111dBm, IIP3 = 64dBm
- Constant Impedance Technology
- Active power handling up to 34dBm
- Characterized for Total Ionizing Dose and Single Event Latch-up and Burnout
- Wide supply voltage range
- Supports 1.8V and 3.3V control logic
产品对比
应用
- Satellite communications system
- Antenna switching
- IF switching
- Digital pre-distortion feedback
设计和开发
开发板与套件
模型
ECAD 模块
点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。
产品选项
当前筛选条件
视频和培训
ISL71934M Radiation Tolerant 6GHz, SPDT RF Switch
Introducing the radiation tolerant, low insertion loss, 50Ω SP2T absorptive RF switch designed for a multitude of wireless and other RF applications.
