概览
描述

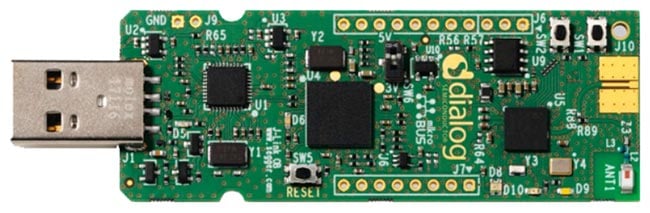

This USB development kit with onboard Flash gives users the flexibility to develop rechargeable applications like wearables, smart homes or VR controllers with confidence. All of the DA14683’s I/Os are available and mapped on to expansion connectors. A debugger is provided on the PCB which in combination with SmartSnippets™, Renesas' complete software environment, enables users to program and test their Bluetooth® Low Energy application.
特性
- Highly integrated DA14683 Bluetooth Low Energy SoC
- Access on GPIOs provided from the chip when no MikroBUS™ is plugged in
- The ability to be connected directly to PC USB without extra cables
- Reset push button
- General-purpose LEDs and buttons
- RGB LEDs connecting each color to dedicated PWM pins (LED1, LED2, LED3)
- Using USB (5V) or LDO (3V3) as the power source
- JTAG and UART interface over USB via Segger
- QSPI flash on board
- 2.4GHz chip antenna and slot for SMA connector
- 16MHz main crystal and 32.768KHz low-power crystal
- Low cost
- Compact design
- A dimension of 89mm x 26.7mm x 4.5mm
应用
- Wearables
- Smart homes
- VR controllers
