概览
描述
Renesas recommends three emulator models that support real-time debugging on the actual chip using the debugging functionality built into the Renesas MCU mounted in the user system. Each of them can be used as flash programmers. They range from an affordably priced model which is compared with full-spec emulators and is suitable for education, initial evaluation to more advanced models with functions to support full-scale development work.
特性
- Lineup [Learn More]

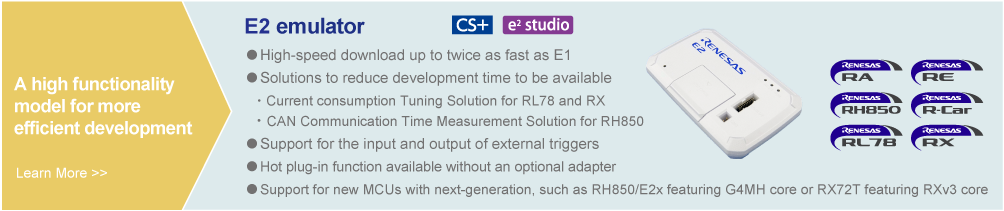

- E2 emulator

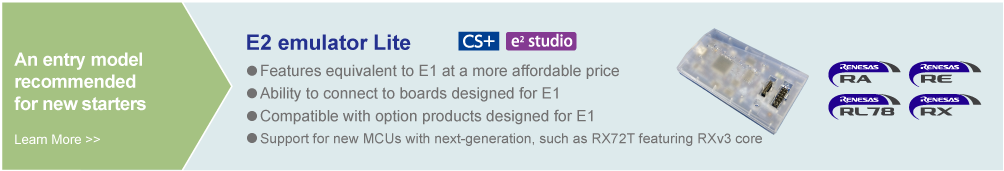

- E2 emulator Lite

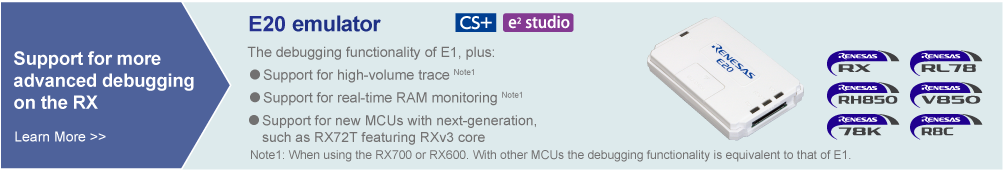

- E20 emulator
目标设备
Lineup
图像  |
图像  |
图像  |
图像  |
See other than the above of on-chip debuggers.
Design Support
On-chip Debuggers Information for Users
Information on the discontinuation of E1 emulator production and on its successor products
We have already discontinued production of the E1 emulator due to components of the product having reached their EOL (end of life, i.e. end of production). Please click on the following link to confirm the details and our successor products.
>> Tool News: [Notification] End of Life (EOL) Notice for E1 Emulator (PDF | English, 日本語)
