DRP-AI Extension Pack (Pruning Tool)

DRP-AI for RZ/V2H and RZ/V2N supports a feature for efficiently calculating the pruned AI model. The DRP-AI Extension Pack provides a pruning function optimized for RZ/V2H and RZ/V2N. The DRP-AI optimized pruning function can be used in combination with this tool and PyTorch or TensorFlow training code.

What is pruning?

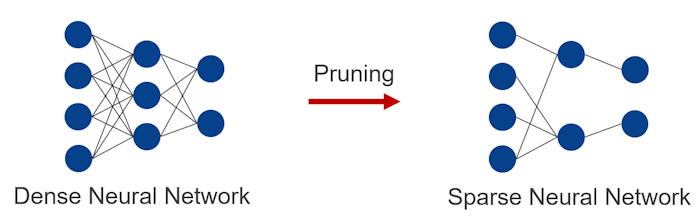

Nodes in a neural network are interconnected as shown in the figure. Methods of reducing the number of parameters by removing weights between nodes or removing nodes are referred to as “pruning”. A neural network to which pruning has not been applied is generally referred to as a dense neural network. And a neural network to which pruning has been applied is generally referred to as a sparse neural network. Applying pruning leads to a slight deterioration in the accuracy of the model but can reduce the power required by hardware and accelerate the inference process.

图像

How to embed the pruned model

The pruned model can be embedded using DRP-AI TVM. Refer to the DRP-AI TVM page on GitHub for details on TVM.
https://github.com/renesas-rz/rzv_drp-ai_tvm

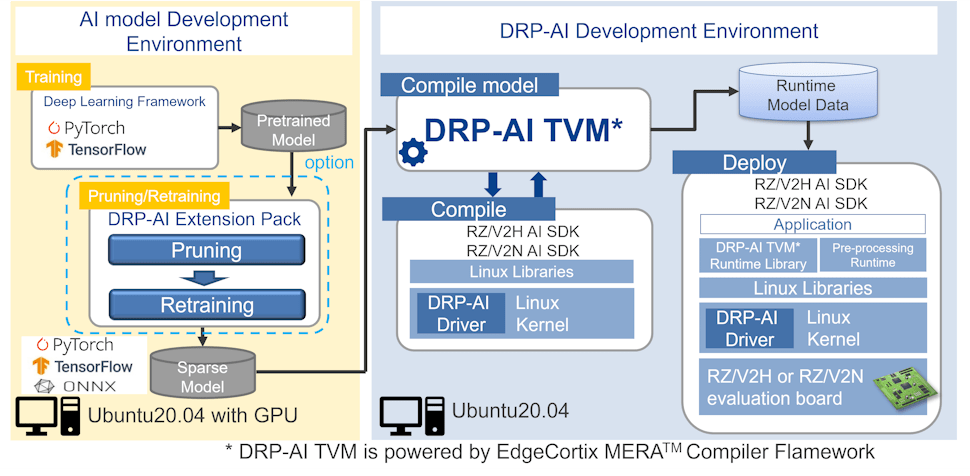

Note: As shown in the figure, pruning is an optional function. (Dense model also can be embedded.)

图像
