RZ/V2H 四核 视觉 AI MPU 评测套件
RZ/V2H AI MPU 评测套件 (RTK0EF0168C04000BJ) 用于评测瑞萨电子 RZ/V2H 四核 视觉 AI MPU。 该套件包括 CPU 板和扩展（EXP)板。 支持 RZ/V2H 标准软件包，能轻松实现低功耗 AI 推理和视频流等软件开发任务。 此外，这款评测套件还支持图像信号处理器 (ISP)、3D 图形引擎...
概览
简介

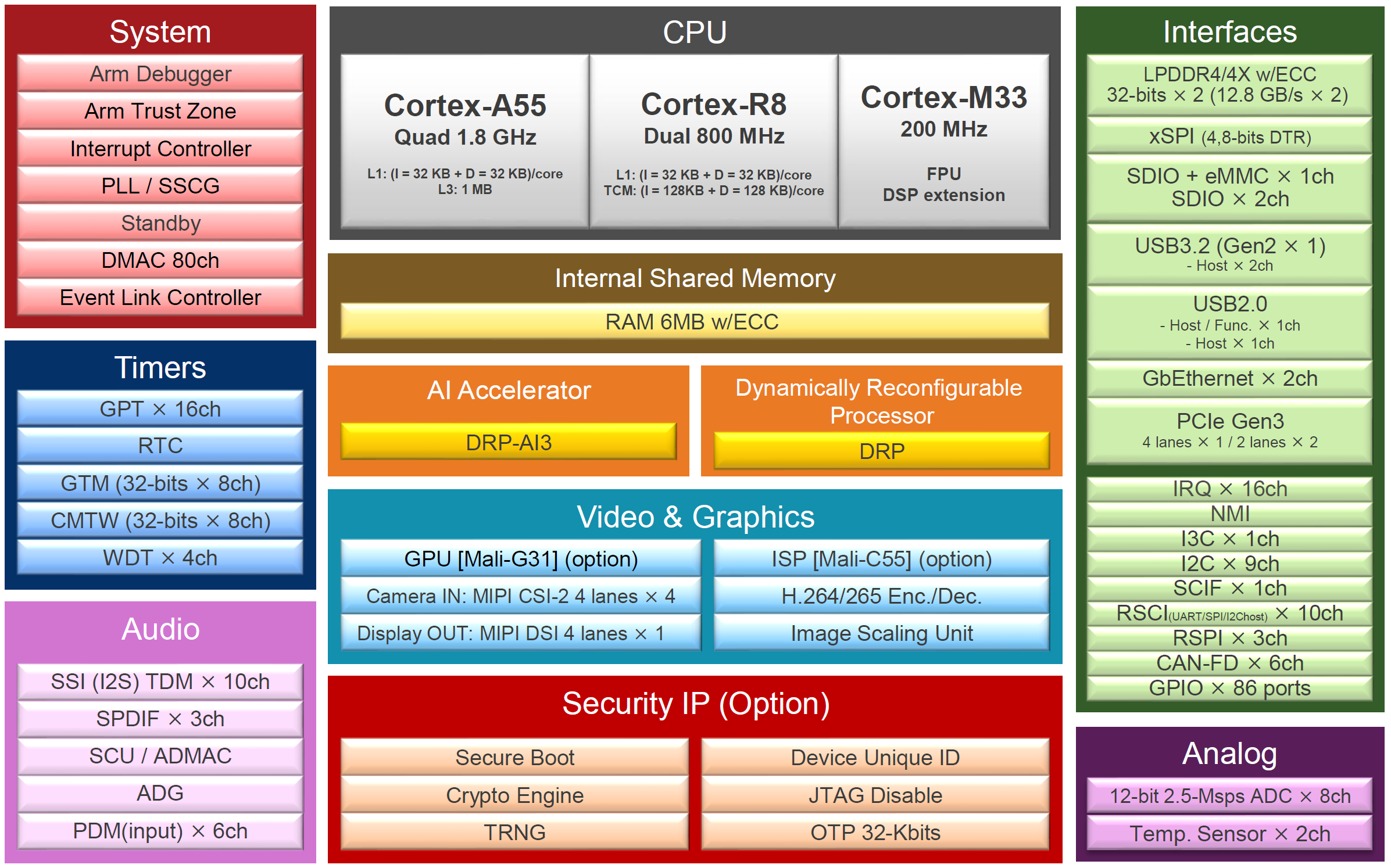

RZ/V2H 高端 AI MPU 采用瑞萨电子专有的AI 加速器-动态可重配置处理器 (DRP-AI3）、四核 Arm® Cortex®-A55 (1.8GHz) Linux 处理器，以及双核 Cortex®-R8 (800MHz) 实时处理器。 此外，RZ/V2H 还包括另一个动态、可重配置处理器 (DRP)。 这款处理器可加速图像处理，如OpenCV，以及机器人应用所需的动态计算。 它还具有 PCIe®、USB 3.2 和千兆以太网等高速接口，是工厂自动化中自主机器人和机器视觉等应用（必须以低功耗实现的先进AI 处理）的理想微处理器。
特性
- Cortex-A55 (1.8GHz) x 4 核
- Cortex-R8 (800MHz) x 2 核
- Cortex-M33 (200MHz) x 1 核
- AI 加速器 DRP-AI3（8TOPS/稠密模型、80TOPS/稀疏模型）
- 动态可重配置处理器 (DRP)
- Arm® Mali™-C55 ISP（可选）
- 6MB 片上 SRAM
- LPDDR4/LPDDR4X 内存接口
- 千兆以太网接口 × 2
- USB 2.0 接口 x 2（On-the-Go (OTG) x 1，主机 x 1）
- USB 3.2 (Gen2) 接口 x 2（仅主机）
- PCIe® 接口（Gen3/4 条通道）x 1
- MIPI® CSI-2® 摄像头接口 x 4
- CAN 接口 (CAN FD) x 6
- 封装：BGA、9mm x 19mm 1368 引脚、0.5mm 间距
产品对比
应用
- 机器人
- 自动引导汽车 (AGV)
- 自主移动机器人 (AMR)
- 工厂自动化 (FA) 机器视觉
- 智能零售
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| RZ/V2H AI Software Development Kit RZ/V2H AI Software Development Kit (AI SDK) is an AI application development environment for the RZ/V2H Evaluation Board Kit.
|
Software Package | 瑞萨电子 |
| RZ/V series AI Apps & AI SDK (GitHub) The AI SDK enables easy and rapid development of AI applications using Renesas' RZ/V series evaluation kits. Additionally, it offers a range of AI applications free of charge.
|
Software Package | 瑞萨电子 |
| DRP-AI Extension Pack (Pruning Tool) The DRP-AI Extension Pack provides a pruning function optimized for RZ/V2H. This pruning function optimized for the DRP-AI can be used in combination with the training code written with the use of PyTorch or TensorFlow.
|
Imaging | 瑞萨电子 |
| DRP-AI Translator i8 [V1.03] This is an AI model conversion tool (DRP-AI Translator i8) for DRP-AI equipped products (INT8 architecture). Please check the Release Notes and User's Manual first before using this product.
|
Imaging | 瑞萨电子 |
| DRP-AI TVM (GitHub) We provide an AI model conversion tool (DRP-AI TVM) for DRP-AI-equipped products. When using this product, please check the contents of the linked README.md first.
|
Software Package | 瑞萨电子 |
| RZ/V2H ROS2 Support Package The RZ/V2H ROS2 Support Package provides the ROS2 installation procedure on the RZ/V2H.
|
Software Package | 瑞萨电子 |
| RZ/V2H ROS2 Sample Application Package The RZ/V2H ROS2 Sample Application Package provides applications running on the RZ/V2H.
|
Software Package | 瑞萨电子 |
| RZ/V Multi-OS Package RZ/V Multi-OS Package is the software package consisting of RZ/V Flexible Software Package (FSP) as software package for Renesas MCU with Arm® Cortex-M, Cortex-R Core and OpenAMP as standardization API of framework for interprocessor communication for developing multi OS solution.
|
Software Package | 瑞萨电子 |
| RZ MPU Graphics Library Evaluation Version for RZ/V2 This product provides the Graphics Library for Mali GPU on RZ/V2L and RZ/V2H. You can use the graphics function on them by building according to the integration guide which is enclosed in the download file.
|
Software Package | 瑞萨电子 |
| RZ MPU Security Package (Linux OS) Security Package for RZ MPUs. This package is used in combination with the Linux package provided for each device.
|
Software Package | 瑞萨电子 |
| AI Navigator: IDE for AI Applications The functions required for the development of embedded systems that use artificial intelligence (AI) have been integrated in AI Navigator, shortening the development periods.
|
Solution Toolkit | 瑞萨电子 |
| RZ/V2H ISP Support Package The RZ/V2H built-in ISP (Image signal processor: ARM: Mali™-C55) is equipped with all the mechanisms required for camera control.
|
Software Package | 瑞萨电子 |
| SEGGER J-Link and J-Trace PRO The J-Link debug probes offer full support for RZ Family MPUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
|
Emulator | SEGGER |
|
13 items
|
||
开发板与套件
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Series Name |
Main CPU |
Operating Freq (Max) (MHz) |
Bit Size |
Sub CPU |
RAM (KB) |
DRAM I/F |
3D GPU |
Accelerator |
PCI Express (generation and ch) |
CAN (ch) |
CAN-FD (ch) |
Ethernet |
USB |
I/O Ports |
Pkg. Type |
Lead Count (#) |
Temp. Range |
PLP |
Data Flash (KB) |
RTC |
DMA |
Timer |
ADC |
Human Machine Interface |
Supply Voltage (V) |
CPU |
Price (USD) | 1ku |
购买 / 样片 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 器件号 | |||||||||||||||||||||||||||||
| RZ/V | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 1800 | 64 | Cortex-R8 x 2, Cortex-M33 | 6144 | LPDDR4-3200, LPDDR4X-3200 (32-bit) | - | DRP-AI3 | PCIe (Rev.3.0 4Lane) x 1 ch | 0 | 6 | 10/100M/1G x 2ch | USB3.2 Gen2x1 x 2 ch (2H) USB2.0 x 2 ch(1H. 1H/F/OTG ) | 86 | FC-BGA | 1368 | Tj = -40 to 125°C | N/A | 0 | 是 | Yes | 32-bit x 8-ch, 32-bit x 16-ch | 12bit x 8-ch | Display Function, Video in | 3.135 - 3.465 | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 74.72 | ||
| RZ/V | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 1800 | 64 | Cortex-R8 x 2, Cortex-M33 | 6144 | LPDDR4-3200, LPDDR4X-3200 (32-bit) | Mali-G31 | DRP-AI3 | PCIe (Rev.3.0 4Lane) x 1 ch | 0 | 6 | 10/100M/1G x 2ch | USB3.2 Gen2x1 x 2 ch (2H) USB2.0 x 2 ch(1H. 1H/F/OTG ) | 86 | FC-BGA | 1368 | Tj = -40 to 125°C | N/A | 0 | 是 | Yes | 32-bit x 8-ch, 32-bit x 16-ch | 12bit x 8-ch | Display Function, Video in | 3.135 - 3.465 | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | |||
| RZ/V | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 1800 | 64 | Cortex-R8 x 2, Cortex-M33 | 6144 | LPDDR4-3200, LPDDR4X-3200 (32-bit) | Mali-G31 | DRP-AI3 | PCIe (Rev.3.0 4Lane) x 1 ch | 0 | 6 | 10/100M/1G x 2ch | USB3.2 Gen2x1 x 2 ch (2H) USB2.0 x 2 ch(1H. 1H/F/OTG ) | 86 | FC-BGA | 1368 | Tj = -40 to 125°C | N/A | 0 | 是 | Yes | 32-bit x 8-ch, 32-bit x 16-ch | 12bit x 8-ch | Display Function, Video in | 3.135 - 3.465 | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | |||
| RZ/V | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 1800 | 64 | Cortex-R8 x 2, Cortex-M33 | 6144 | LPDDR4-3200, LPDDR4X-3200 (32-bit) | - | DRP-AI3 | PCIe (Rev.3.0 4Lane) x 1 ch | 0 | 6 | 10/100M/1G x 2ch | USB3.2 Gen2x1 x 2 ch (2H) USB2.0 x 2 ch(1H. 1H/F/OTG ) | 86 | FC-BGA | 1368 | Tj = -40 to 125°C | N/A | 0 | 是 | Yes | 32-bit x 8-ch, 32-bit x 16-ch | 12bit x 8-ch | Display Function, Video in | 3.135 - 3.465 | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 76.62 | ||
| RZ/V | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 1800 | 64 | Cortex-R8 x 2, Cortex-M33 | 6144 | LPDDR4-3200, LPDDR4X-3200 (32-bit) | Mali-G31 | DRP-AI3 | PCIe (Rev.3.0 4Lane) x 1 ch | 0 | 6 | 10/100M/1G x 2ch | USB3.2 Gen2x1 x 2 ch (2H) USB2.0 x 2 ch(1H. 1H/F/OTG ) | 86 | FC-BGA | 1368 | Tj = -40 to 125°C | N/A | 0 | 是 | Yes | 32-bit x 8-ch, 32-bit x 16-ch | 12bit x 8-ch | Display Function, Video in | 3.135 - 3.465 | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 82.43 | ||
| RZ/V | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 1800 | 64 | Cortex-R8 x 2, Cortex-M33 | 6144 | LPDDR4-3200, LPDDR4X-3200 (32-bit) | Mali-G31 | DRP-AI3 | PCIe (Rev.3.0 4Lane) x 1 ch | 0 | 6 | 10/100M/1G x 2ch | USB3.2 Gen2x1 x 2 ch (2H) USB2.0 x 2 ch(1H. 1H/F/OTG ) | 86 | FC-BGA | 1368 | Tj = -40 to 125°C | N/A | 0 | 是 | Yes | 32-bit x 8-ch, 32-bit x 16-ch | 12bit x 8-ch | Display Function, Video in | 3.135 - 3.465 | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | |||
| RZ/V | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 1800 | 64 | Cortex-R8 x 2, Cortex-M33 | 6144 | LPDDR4-3200, LPDDR4X-3200 (32-bit) | - | DRP-AI3 | PCIe (Rev.3.0 4Lane) x 1 ch | 0 | 6 | 10/100M/1G x 2ch | USB3.2 Gen2x1 x 2 ch (2H) USB2.0 x 2 ch(1H. 1H/F/OTG ) | 86 | FC-BGA | 1368 | Tj = -40 to 125°C | N/A | 0 | 是 | Yes | 32-bit x 8-ch, 32-bit x 16-ch | 12bit x 8-ch | Display Function, Video in | 3.135 - 3.465 | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 70.19 | 获取样片, | |
| RZ/V | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 1800 | 64 | Cortex-R8 x 2, Cortex-M33 | 6144 | LPDDR4-3200, LPDDR4X-3200 (32-bit) | Mali-G31 | DRP-AI3 | PCIe (Rev.3.0 4Lane) x 1 ch | 0 | 6 | 10/100M/1G x 2ch | USB3.2 Gen2x1 x 2 ch (2H) USB2.0 x 2 ch(1H. 1H/F/OTG ) | 86 | FC-BGA | 1368 | Tj = -40 to 125°C | N/A | 0 | 是 | Yes | 32-bit x 8-ch, 32-bit x 16-ch | 12bit x 8-ch | Display Function, Video in | 3.135 - 3.465 | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 85.74 | ||
| RZ/V | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 1800 | 64 | Cortex-R8 x 2, Cortex-M33 | 6144 | LPDDR4-3200, LPDDR4X-3200 (32-bit) | Mali-G31 | DRP-AI3 | PCIe (Rev.3.0 4Lane) x 1 ch | 0 | 6 | 10/100M/1G x 2ch | USB3.2 Gen2x1 x 2 ch (2H) USB2.0 x 2 ch(1H. 1H/F/OTG ) | 86 | FC-BGA | 1368 | Tj = -40 to 125°C | N/A | 0 | 是 | Yes | 32-bit x 8-ch, 32-bit x 16-ch | 12bit x 8-ch | Display Function, Video in | 3.135 - 3.465 | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 84.95 | 获取样片, | |
| RZ/V | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 1800 | 64 | Cortex-R8 x 2, Cortex-M33 | 6144 | LPDDR4-3200, LPDDR4X-3200 (32-bit) | - | DRP-AI3 | PCIe (Rev.3.0 4Lane) x 1 ch | 0 | 6 | 10/100M/1G x 2ch | USB3.2 Gen2x1 x 2 ch (2H) USB2.0 x 2 ch(1H. 1H/F/OTG ) | 86 | FC-BGA | 1368 | Tj = -40 to 125°C | N/A | 0 | 是 | Yes | 32-bit x 8-ch, 32-bit x 16-ch | 12bit x 8-ch | Display Function, Video in | 3.135 - 3.465 | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 81.66 | ||
| RZ/V | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 1800 | 64 | Cortex-R8 x 2, Cortex-M33 | 6144 | LPDDR4-3200, LPDDR4X-3200 (32-bit) | Mali-G31 | DRP-AI3 | PCIe (Rev.3.0 4Lane) x 1 ch | 0 | 6 | 10/100M/1G x 2ch | USB3.2 Gen2x1 x 2 ch (2H) USB2.0 x 2 ch(1H. 1H/F/OTG ) | 86 | FC-BGA | 1368 | Tj = -40 to 125°C | N/A | 0 | 是 | Yes | 32-bit x 8-ch, 32-bit x 16-ch | 12bit x 8-ch | Display Function, Video in | 3.135 - 3.465 | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 87.78 | 获取样片, | |
| RZ/V | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 1800 | 64 | Cortex-R8 x 2, Cortex-M33 | 6144 | LPDDR4-3200, LPDDR4X-3200 (32-bit) | Mali-G31 | DRP-AI3 | PCIe (Rev.3.0 4Lane) x 1 ch | 0 | 6 | 10/100M/1G x 2ch | USB3.2 Gen2x1 x 2 ch (2H) USB2.0 x 2 ch(1H. 1H/F/OTG ) | 86 | FC-BGA | 1368 | Tj = -40 to 125°C | N/A | 0 | 是 | Yes | 32-bit x 8-ch, 32-bit x 16-ch | 12bit x 8-ch | Display Function, Video in | 3.135 - 3.465 | Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 | 86.79 | 获取样片, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
视频和培训
RZ/V2H AI Applications Tutorial Getting Started V3.00
This video shows how to run AI applications on RZ/V2H Evaluation Board Kit (EVK), using RZ/V2H AI Software Development Kit Version 3.00.
Related Resources
RZ/V2H AI Software Development Kit
Chapter's Title & Time
00:00 Opening
00:46 Preparation
03:39 Set up AI SDK
07:56 Run the Application
23:18 Ending
Video List
新闻和博客
| 适用于视觉 AI 应用的全新 MPU 平台为网络边缘提供性能、能效和客户易用性 | 博客 | 2024年4月24日 |
| RZ/V2H MPU 提升机器人与自主应用中的 AI 性能和实时控制 | 博客 | 2024年4月2日 |
