瑞萨电子 (Renesas Electronics Corporation)
搜索

QE for Camera: Development Assistance Tool for Camera Applications

解决方案工具包

QE for Camera [RA] V1.1.0: Development Assistance Tool for Camera ApplicationsQE for Display [RX,RA] V3.6.0, QE for Camera [RA] V1.1.0 Release Note

概览

Topics
- Supports the new device RA8P1 group of the RA Family

This development assistance tool supports the development of embedded systems which use the camera functions of display controllers from Renesas. It supports MCUs of the RZ/RA Family.
This product is a plug-in which extends the Renesas IDE "e² studio".
This product is available free of charge.

  • Easy Settings for the Timing of Input Signals from Cameras
  • Easy Alterations to the Operation of the Camera Module
  • Support for the Debugging of Images Captured by Cameras
  • Check the Results of the Settings on the Actual Camera & Display
  • Generate a Header File Which Reflects the Settings for Use in Projects
  • Learn More

Product NameLatest Ver.ReleasedTarget Device(Note1)DetailsDownloadOperating Environment
QE for Camera[RZ]V1.1.12020/04/07RZ FamilySee Release NoteDownload
e² studio plug-in
Operating Environment
QE for Camera[RA]V1.1.02025/07/01RA FamilySee Release NoteDownload

Installing This Product >>

下载

精选
类型 文档标题 日期
软件和工具 - 软件
QE for Camera [RA] V1.1.0: Development Assistance Tool for Camera Applications
登录后下载 ZIP 23.59 MB 日本語
软件和工具 - 其他
QE for Camera V1.1.1: Development Assistance Tool for Camera
登录后下载 ZIP 2.45 MB 日本語
2 项目

文档

设计和开发

相关页面
e² studio - information for RZ Family
Eclipse-based Renesas integrated development environment (IDE).
IDE and Coding Tool 瑞萨电子
RZ Smart Configurator
RZ Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
 Solution Toolkit 瑞萨电子
RZ/A2M FreeRTOS™ Software Package
Software package for the RZ/A2M that supports DRP(Dynamically Reconfigurable Processor), camera input, LCD output, and image adjustment.
Software Package 瑞萨电子
e² studio - RA 产品家族信息
基于 Eclipse 的瑞萨集成开发环境（IDE）。
下载
[Upgrade to Revision] Solution Toolkit QE for Camera[RA] V1.1.0: Development Assistance Tool for Camera Applications
 IDE and Coding Tool 瑞萨电子
RA 可扩展性强的配置软件包 (FSP)
FSP 是一款增强型软件包，旨在为使用瑞萨电子 RA 系列 Arm 微控制器的嵌入式系统设计提供简单易用且可扩展性强的高质量软件。
 Software Package 瑞萨电子
5 项目

样例程序
类型
文档标题
日期
示例代码
RZ/A1LU Group RZ/A1LU Software Package
[Software=RZ FreeRTOS Software Package|v3.40],[Toolchains=GNU Arm Embedded|V12.2.Rel1;IAR Compiler for Arm|v.9.40.2]
登录后下载 ZIP 176.70 MB
应用: 工业, 消费电子产品
Compiler: GNU ARM Embedded, ICCARM Function: Application Example, BSP, HMI, I/O or Pin, Memory, OS, Other peripherals, Software Package, Timer IDE: e2 studio, IAR EWARM
相关文件：
1 项目
评估
EK-RA8D1 有效

RA8D1 MCU 群组评估套件

EK-RA8D1 评估套件可通过瑞萨电子的灵活软件包 (FSP) 和 e2 studio IDE，帮助用户轻松评估 RA8D1 MCU 产品组的特性，并开发嵌入式系统应用程序。 用户可利用丰富的板载功能以及自选的热门生态系统插件来将丰富创意变为现实。

EK-RA8D1 套件由三块板组成：EK-RA8D1 板采用 RA8D1 MCU 和片上图形 LCD 控制器，MIPI 图形扩展板采用 4.5 英寸 TFT 彩色 LCD (480 x 854)，带电容式触摸覆盖层，而摄像头扩展板则采用 300 万像素 CMOS 图像传感器。

入门

运行快速入门示例项目

  1. EK-RA8D1...
推荐文档：
EK-RA8D1 - Quick Start Guide
EK-RA8D1 v1 – User Manual
EK-RA8D1 v1 - Design Package
立即订购
EK-RA8P1 Evaluation Board
评估
EK-RA8P1 有效

RA8P1 MCU 群组评估套件

EK-RA8P1 评估套件旨在用户能够轻松评估 RA8P1 MCU 功能，并使用瑞萨电子的灵活配置软件包 （FSP） 和 e2 studio IDE 开发嵌入式系统应用程序。 用户可以利用丰富的板载功能和选择常用的生态系统附加组件来实现广泛的应用程序，包括人工智能 （AI） 和物联网 （IoT）。 为用户提供了一套示例项目包可供下载，能快速评估关键外设性能，从而加速概念验证开发进程。

该套件包含一个 7.0 英寸、1024x600 并行接口 LCD 板和一个 5百万像素摄像头模块。 套件中预装了展示 RA8P1 卓越性能的演示。 将 LCD 板和摄像头模块与 EK-RA8P1...

推荐文档：
EK-RA8P1 v1 Quick Start Guide
EK-RA8P1 v1 User's Manual
EK-RA8P1 v1 - Design Package
立即订购

Additional Details

Functions

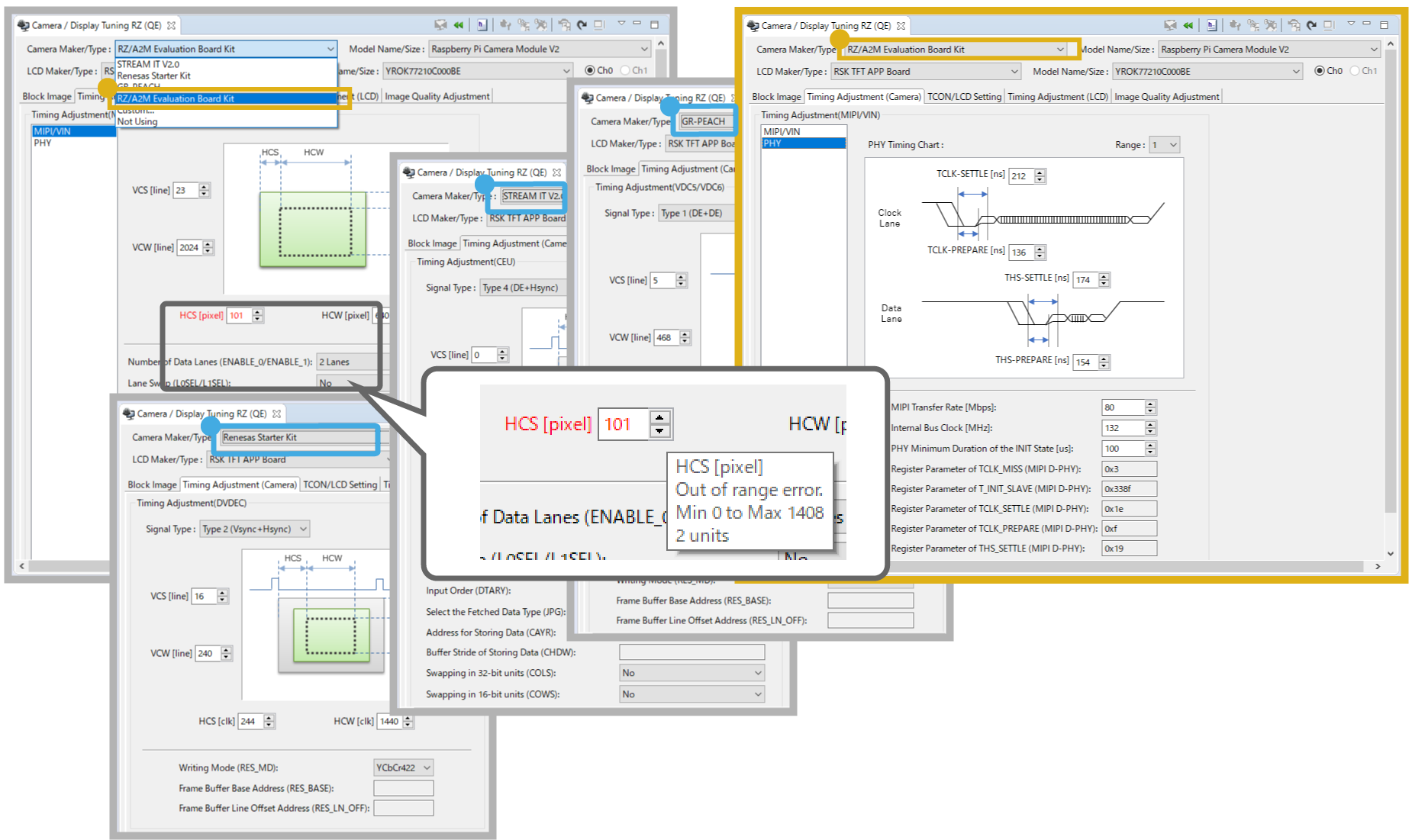

Easy Settings for the Timing of Input Signals from Cameras

The GUI allows the easy adjustment of the timing settings of a camera during testing. GUI displays with appropriate settings for various RZ/A target boards or custom boards for development are set up by selecting a target board or setting custom board configurations (Note1). The settings corresponding to those in the GUI display are created in a header file for direct incorporation in projects. If the value of a setting is not in accordance with the MCU spec., it is marked as being in error. This makes it easy for users to identify problems.

Note

  1. Only the RZ/A2M supports MIPI-standard cameras.

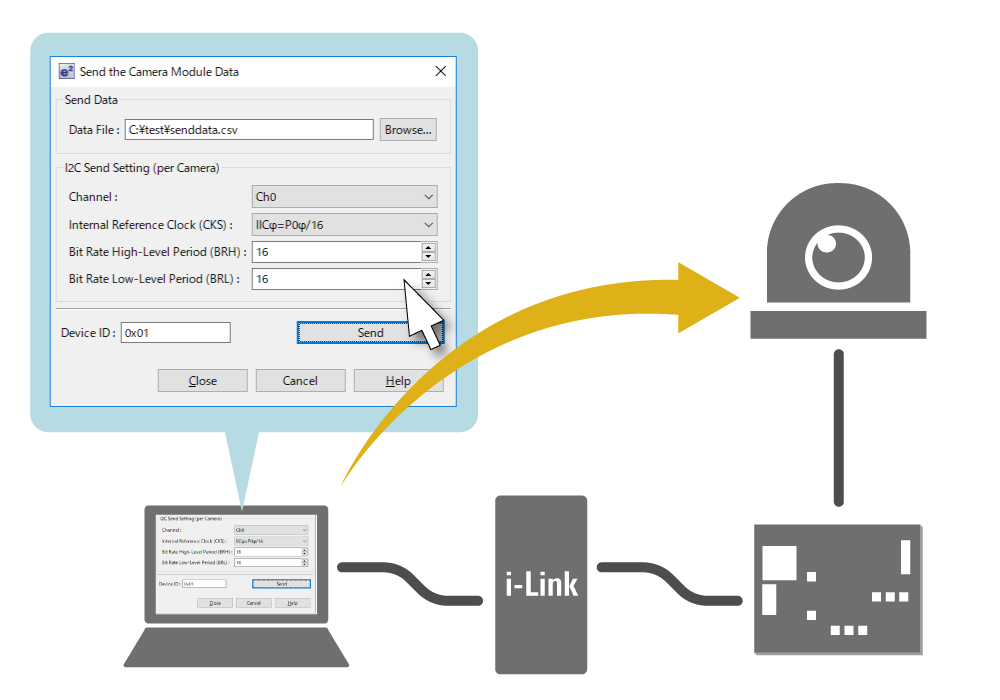

Easy Alterations to the Operation of the Camera Module

Operation settings such as the image format and capture size of the camera module to be connected can be specified by sending a parameter file (csv file) from QE for Camera.

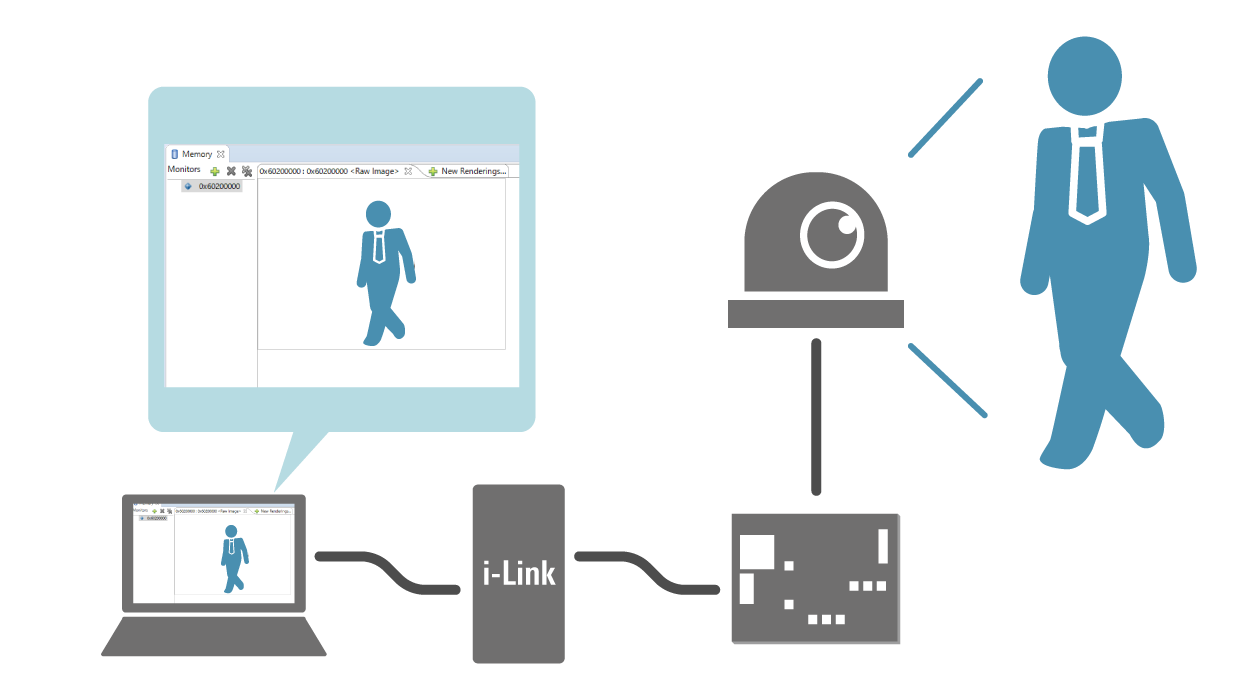

Support for the Debugging of Images Captured by Cameras

Even for a system that has no display device, such as a surveillance camera, interlinking with the in-memory image display function of the e² studio allows you to check images in the buffers for the VDC5.

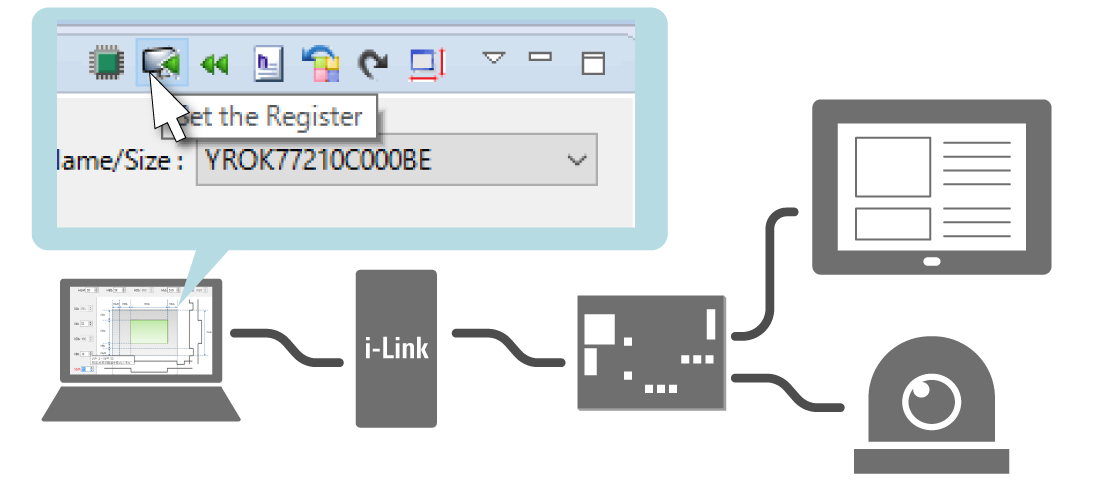

Check the Results of the Settings on the Actual Camera & Display

A single button press writes the current settings to registers, so you can check the results for the actual camera and LCD panel. This tool also has a mode for automatically writing the changes to registers every time a setting is changed.

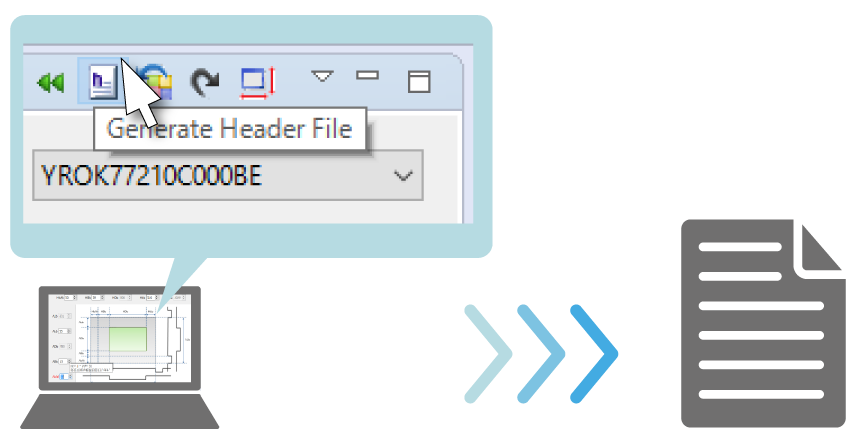

Generate a Header File Which Reflects the Settings for Use in Projects

When you have finished the settings, the settings corresponding to those in the GUI display are created in a header file for direct incorporation in projects. QE for VDC5 can also operate in conjunction with the Supported Sample Programs.

Supported Sample Programs

Product NameSample Program
QE for Camera[RZ]RZ/A1LU Software Package
RZ/A2M Software Package
RZ/A1H Group, RZ/A1M Group, RZ/A1LU Group, RZ/A1L Group, RZ/A1LC Group RZ/A1 Framework
