高速运算放大器 (GBW >= 50MHz)
跳转至页面部分：
瑞萨的高速运算放大器（运放）产品系列提供同类最佳的性能功耗比以及在全带宽卓越的驱动和转化速率性能。 这使我们的运算放大器成为视频和高速数据传输、A/D 转换缓冲和高频滤波的理想选择。
推荐产品
产品选型表
Processing table
Channels (#) |
Bandwidth (MHz) |
Gain Min |
Offset Voltage (Max) (mV) |
IBIAS (nA) |
IOUT (A) |
CMRR (dB) |
PSRR (db) |
Rail-to-Rail Input |
Rail-to-Rail Output |
IS (per amp) (mA) |
Noise VN (nV/√Hz) |
Single Supply Voltage Range (V) |
Slew Rate (V/µs) |
VOUT (V) |
VS (Min) (V) |
VS (Max) (V) |
2nd Harmonic (dB) |
3rd Harmonic (dB) |
Diff Gain (%) |
Diff Phase (°) |
AVOL (dB) |
Topology [Rail 1] |
Enable |
Output Headroom (V) |
Distortion Conditions |
Gain Error/Measurement Error (Max) |
THD (dB) |
Qualification Level |
Lead Count (#) |
Pkg. Type |
Simulation Model Available |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 器件号 | ||||||||||||||||||||||||||||||||
| Triple Differential Twisted-Pair Driver with Common-Mode Sync Encoding | 3 | 350 | 2 | 10 | 15000 | 0.06 | 80 | 80 | No | 否 | 14.5 | 27 | 5 - 12 | 1200 | 5 | 12 | 0.01 | 0.01 | Yes | Standard | 24 | QSOP | ||||||||||
| 200MHz Low-power Current Feedback Amplifiers | 1 | 200 | 1 | 5 | 5000 | 0.07 | 62 | 74 | No | 否 | 0.75 | 4 | 5 - 10 | 1700 | 6.8 | 5 | 10 | -74 | -50 | 0.1 | 0.1 | 126 | CFA | Yes | 1 | 2.5Vpp, 5MHz | Standard | 6 | SOT23 | |||
| 200MHz Low-power Current Feedback Amplifiers | 1 | 200 | 1 | 5 | 5000 | 0.07 | 62 | 74 | No | 否 | 0.75 | 4 | 5 - 10 | 1700 | 6.8 | 5 | 10 | -74 | -50 | 0.1 | 0.1 | 126 | CFA | No | 1 | 2.5Vpp, 5MHz | Standard | 5 | SOT23 | iSim | ||
| 700MHz Differential Twisted-Pair Drivers | 3 | 700 | 2 | 30 | 14000 | 0.06 | 78 | 75 | No | 否 | 12.5 | 18 | 4.75 - 11 | 1000 | 7.4 | 4.75 | 11 | -83 | -88 | 0.06 | 0.13 | VFA | Yes | 1.3 | 2Vpp, 5MHz | Standard | 28 | QSOP | ||||
| 100MHz, High Input Impedance, Very Wideband, Uncompensated Operational Amplifiers | 1 | 100 | 5 | 0.5 | 1 | 0.022 | 100 | 90 | No | 否 | 3 | 11 | 10 - 40 | 35 | 24 | 10 | 40 | VFA | No | 3 | Standard | 8 | CAN | |||||||||
| 110MHz, High Slew Rate, High Output Current Buffer | 1 | 110 | 0.995 | 5 | 2000 | 0.2 | 64 | No | 否 | 8.3 | 10 - 40 | 1300 | 27 | 10 | 40 | Fixed Gain | No | 1.5 | 86 | Standard | 8 | CAN, SOICN | ||||||||||
| 120MHz, Ultra-Low Noise Precision Operational Amplifiers | 1 | 120 | 10 | 0.03 | 15 | 0.025 | 120 | 96 | No | 否 | 3.5 | 3.2 | 10 - 40 | 35 | 27 | 10 | 40 | No | Standard | 8 | CERDIP | |||||||||||
| Dual 125MHz Video Current Feedback Amplifier | 2 | 125 | 1 | 3 | 4000 | 0.02 | 53 | 60 | No | 否 | 7.5 | 4.5 | 9 - 30 | 475 | 6 | 9 | 30 | -51 | -55 | 0.03 | 0.03 | CFA | No | 2 | 2Vpp, 10MHz | Standard | 8 | SOICN | ||||
| 330MHz, Low Power, Current Feedback Video Operational Amplifier | 1 | 330 | 1 | 5 | 2000 | 0.06 | 50 | 54 | No | 否 | 5.8 | 3.5 | 9 - 11 | 1000 | 6.8 | 9 | 11 | -48 | -50 | 0.02 | 0.03 | 114 | CFA | No | 1.6 | 2Vpp, 10MHz | Standard | 8 | SOICN | iSim | ||
| 850MHz, Output Limiting, Low Distortion Current Feedback Operational Amplifier | 1 | 850 | 1 | 6 | 25000 | 0.06 | 46 | 50 | No | 否 | 21 | 4 | 9 - 11 | 2300 | 6.6 | 9 | 11 | -56 | -80 | 0.03 | 0.05 | 110 | CFA | No | 1.7 | 2Vpp, 30MHz | Standard | 8 | SOICN | |||
| 360MHz, Low Power, Video Operational Amplifier with Output Limiting | 1 | 360 | 1 | 5 | 6000 | 0.06 | 50 | 54 | No | 否 | 6.9 | 3.5 | 9 - 11 | 1200 | 6.8 | 9 | 11 | -50 | -50 | 0.02 | 0.04 | CFA | No | 1.6 | 2Vpp, 10MHz | Standard | 8 | SOICN | ||||
| Single Supply Ultra-Low Noise, Low Distortion Rail-to-Rail Output, Op Amp | 1 | 61 | 1 | 0.63 | 3000 | 0.13 | 100 | 80 | -Vs | 是的 | 2.6 | 1.7 | 3 - 5.5 | 17 | 4.97 | 3 | 5.5 | -76 | -70 | 98 | VFA | Yes | 0.05 | 1MHz, 2Vpp | 115 | Standard | 6 | SOT23, uTDFN | iSim | |||
| Dual Supply Ultra-Low Noise, Low Distortion Rail-to-Rail Output, Op Amp | 2 | 61 | 1 | 0.63 | 3000 | 0.13 | 100 | 80 | -Vs | 是的 | 2.6 | 1.7 | 3 - 5.5 | 17 | 4.97 | 3 | 5.5 | -76 | -70 | 98 | VFA | Yes | 5 | 1MHz, 2Vpp | Standard | 8, 10 | MSOP, SOICN, uTQFN | iSim | ||||
| High Supply Voltage 220MHz Unity-Gain Stable Operational Amplifier | 1 | 220 | 1 | 3 | 1720 | 0.145 | 90 | 90 | No | 否 | 9 | 12 | 5 - 30 | 300 | 11.5 | 5 | 30 | -72 | -80 | 0.01 | 0.05 | 84.6 | VFA | No | 2.2 | 2MHz, 2Vpp | Standard | 8 | SOICN | iSim | ||

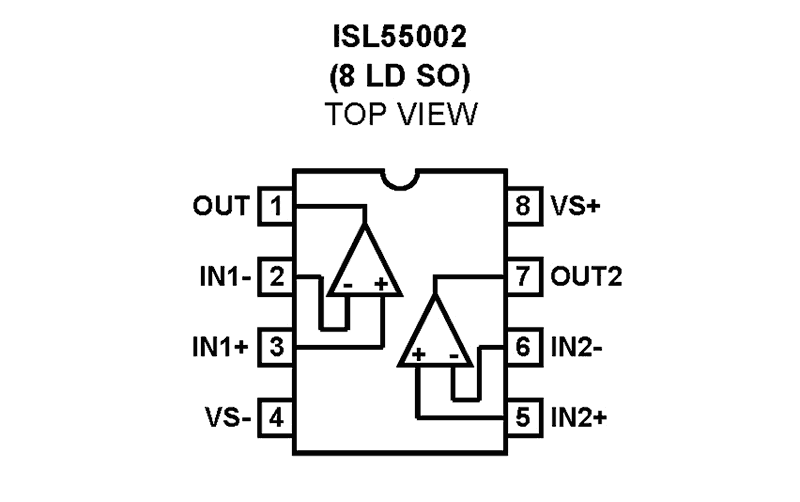

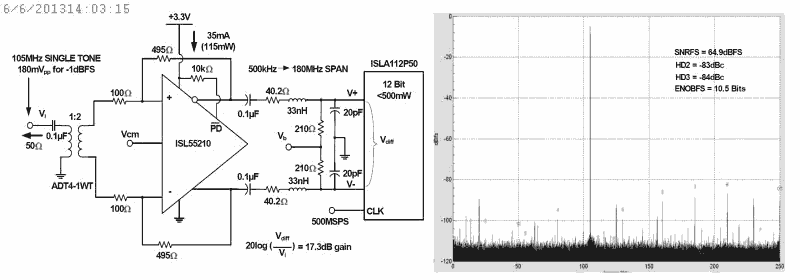

| High Supply Voltage 200MHz Unity-Gain Stable Operational Amplifier | 2 | 200 | 1 | 5 | 600 | 0.14 | 90 | 100 | No | 否 | 8.5 | 12 | 5 - 30 | 300 | 10.7 | 5 | 30 | -72 | -80 | 0.01 | 0.05 | 86.44 | VFA | No | 2.25 | 2MHz, 2Vpp | Standard | 8 | SOICN | |||
| Wideband, Low-power, Ultra-High Dynamic Range Differential Amplifier | 1 | 2200 | 2 | 1.4 | 50000 | 0.045 | 75 | 90 | No | 否 | 35 | 0.85 | 3 - 4.2 | 5600 | 3.8 | 3 | 4.2 | -105 | -120 | 100 | FDA | Yes | 1 | 2Vpp, 20MHz | Standard | 16 | TQFN | |||||

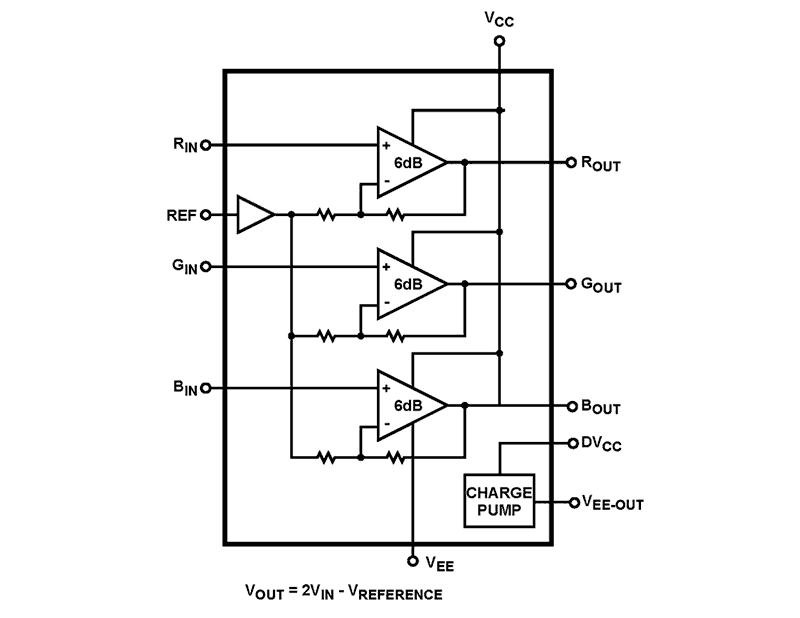

| 200MHz Single Supply Video Driver With Charge Pump | 3 | 200 | 2 | 25 | 0.05 | 62 | Yes | 是的 | 32.3 | 20 | 3 - 3.6 | 500 | 5.1 | 3 | 3.6 | 0.07 | 0.06 | VFA | Yes | 1.5 | Standard | 16 | QSOP | |||||||||

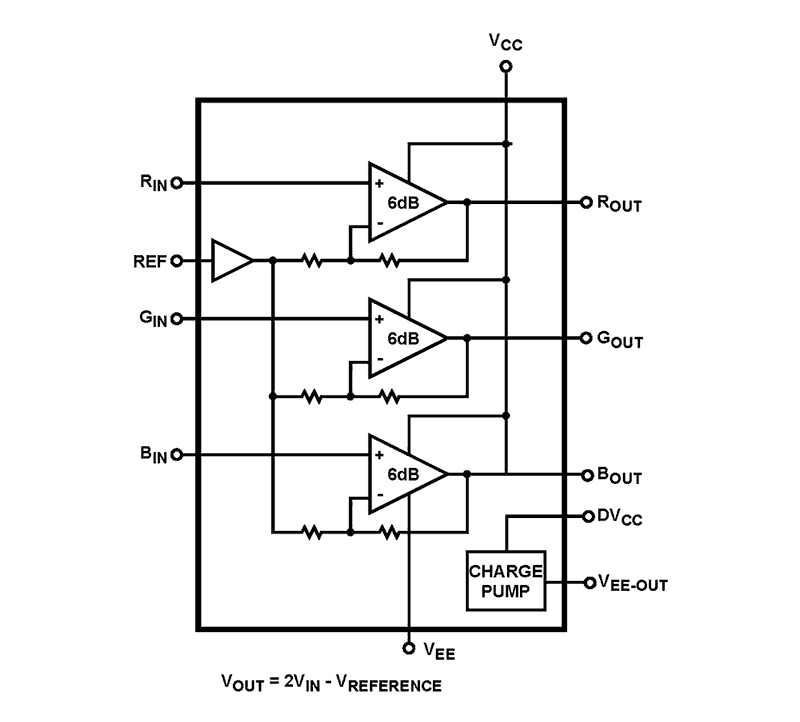

| 200MHz Single Supply Video Driver With Charge Pump and Power Down | 3 | 200 | 2 | 25 | 0.05 | 62 | Yes | 是的 | 32.3 | 20 | 3 - 3.6 | 500 | 5.1 | 3 | 3.6 | 0.07 | 0.06 | VFA | Yes | 1.5 | Standard | 16 | QSOP |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
文档
|
|
日期 | |
|---|---|---|
| PDF 5.20 MB 日文 | 手册 | |
| PDF 974 KB | 应用文档 | |
| PDF 245 KB | 手册 | |
| PDF 285 KB | 应用文档 | |
| PDF 204 KB | 应用文档 | |
| PDF 425 KB | 应用文档 | |
6 items
|
||
视频和培训
Analog 101 Webinar
This webinar provides an introductory technical overview of analog signal path products. Signal path products include operational amplifiers, voltage references, digital potentiometers, rs-485/rs-422, data converters, switches, muxes, and real time clocks.
Video List
