Analog Products

Renesas offers a diverse portfolio of programmable gamma buffers and TFT-LCD reference voltage generator ICs for general-purpose and automotive-grade applications.

产品选型表

    Processing table
    Channels (#)
    Rail-to-Rail
    Supply Voltage Vs Range
    IS (mA)
    Bus Interface Speed (MHz)
    Interface
    Lead Count (#)
    Pkg. Type
    器件号
    ISL24813
    Programmable 18-Channel x 2 Bank, 10-Bit TFT-LCD VREF Generator with Buffered VCOM Calibrator    		 18 Out 5 to 19 20 0.4 I2C 32 TQFN

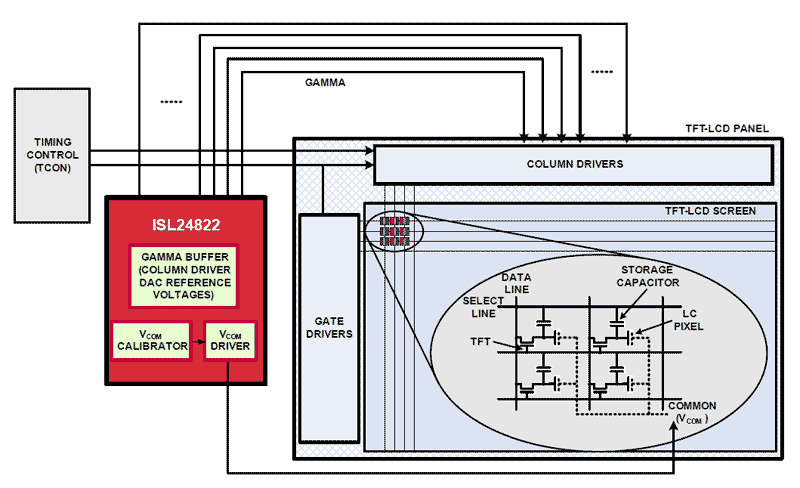

    ISL24822
    Programmable 14-Channel x 2 Bank, 10-bit TFT-LCD VREF Generator with Buffered VCOM Calibrator    		 14 Out 5 to 19 20 0.4 I2C 32 TQFN

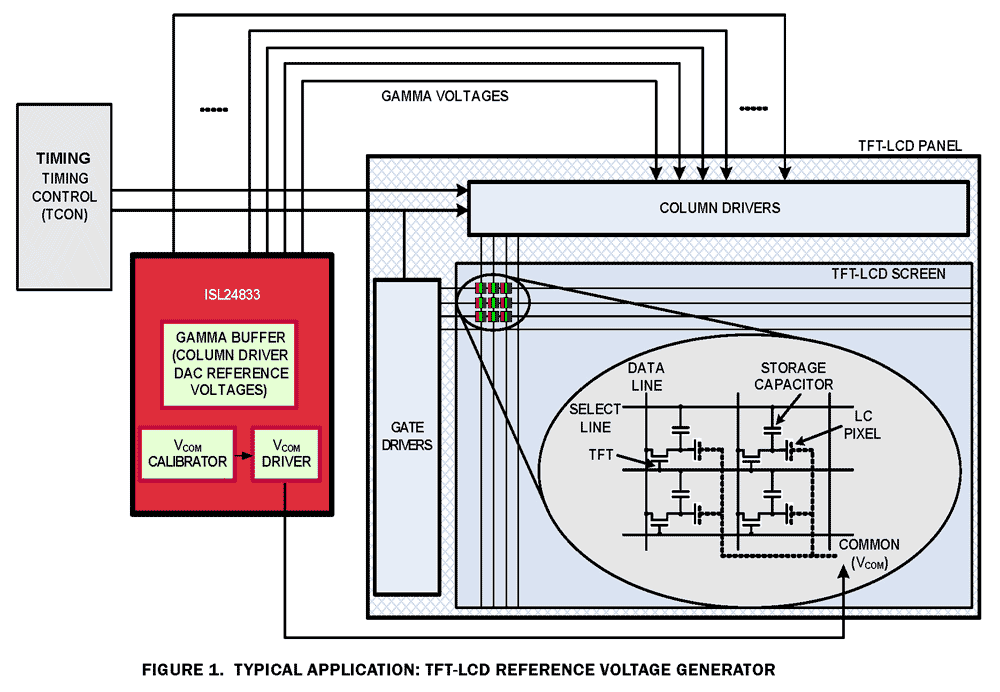

    ISL24833
    18-Channel Programmable I2C TFT-LCD Reference Voltage Generator with VCOM, Integrated VCOM Calibrator and 2 Banks of Integrated EEPROM    		 18 Out 10.8 to 19 15 0.4 I2C 32 QFN

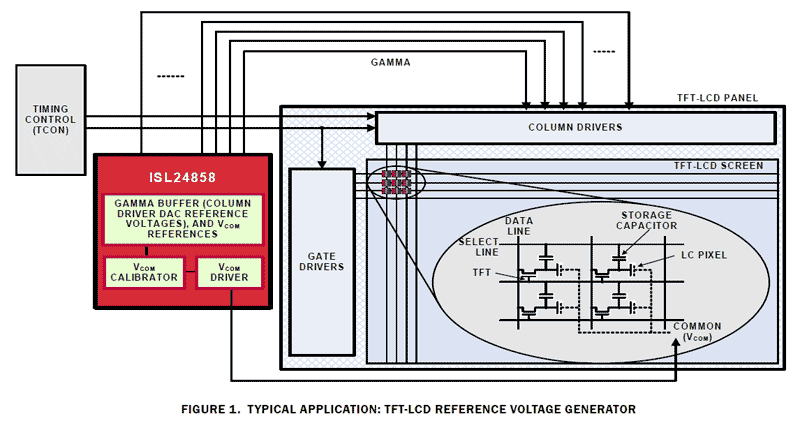

    ISL24858
    15-Channel I2C Programmable TFT-LCD Reference Voltage Generator with Integrated EEPROM, and Ultra-low Power Operation    		 15 Out 6.3 to 19 1 0.4 I2C 28 X2QFN
    ISL76534
    Ultra-Low Power 14-Channel Programmable Gamma Buffer with Integrated EEPROM    		 15 Out 6.3-19 1 0.4 I2C 28 X2QFN
