Renesas' highly integrated audio switches offer features such as ultra-low distortion, click and pop suppression and accurate USB 2.0 high-speed data signal switching. These devices are an ideal choice for compact MP3 players, docking speaker systems, cell phones, portable DVD players, and sound cards.

Analog Products

分类

Audio Click and Pop Switches

Switches that eliminate noise during audio equipment power on/off

USB Audio Switches

Low distortion audio and accurate USB 2.0 high-speed data signal switching

产品选型表

    Processing table
    器件号
    Channels (#)
    Switch or MUX
    Configuration
    Type of Switch
    RDS (ON) (Ohms)
    Leakage (nA)
    Source Cap (pf)
    IS (mA)
    VCC (Single) (V)
    Qualification Level
    TON (ns)
    TOFF (ns)
    Charge Injection (pC)
    Drain Capacitance
    Dual Supply Range (V)
    Supply Voltage Vcc Range
    ISL54062
    Negative Signal Swing, Sub-ohm, Dual SPDT with Click and Pop Elimination Single Supply Switch    		 Stereo Switch Dual NO SPDT 0.57 Standard
    ISL54063
    Negative Signal Swing, Sub-ohm, Dual SPST with Click and Pop Elimination Single Supply Switch    		 Stereo Switch Dual NO SPST 0.65 Standard
    ISL54064
    Negative Signal Swing, Sub-ohm, Dual SPST with Click and Pop Elimination Single Supply Switch    		 Stereo Switch Dual NC SPST 0.65 Standard
    ISL54214
    USB 2.0 High-Speed x 2 Channels/Stereo Audio Dual SP3T (Dual 3-to-1 Multiplexer)    		 USB/USB/MP3 0.0062 Standard
    ISL54405
    CD/MP3 Quality Stereo 2:1 Multiplexer with Click and Pop Elimination    		 Stereo Mux Diff 2x1 DPDT 1.9 Standard

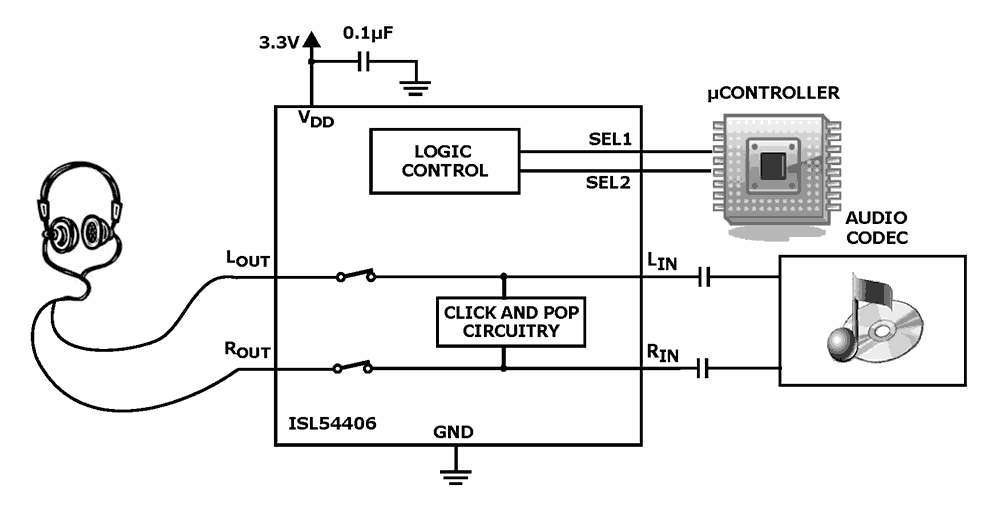

    ISL54406
    Stereo Click and Pop Eliminator with Audio Muting    		 Switch Dual NO SPST 2.5 Standard
