Renesas' low quiescent current linear regulators are ideal for “always-on” and “keep alive” automotive applications.

汽车产品

产品选型表

    Processing table
    器件号
    Input Voltage (Min) (V)
    Input Voltage (Max) (V)
    Output Voltage (Min) (V)
    Output Voltage (Max) (V)
    Output Current 1 (Max) (A)
    Output Current 2 (Max) (A)
    Fixed Output Voltage Option
    O/P Voltage Accuracy (±%)
    PSRR (db)
    Noise (10Hz to 100kHz) (μVrms)
    Qualification Level

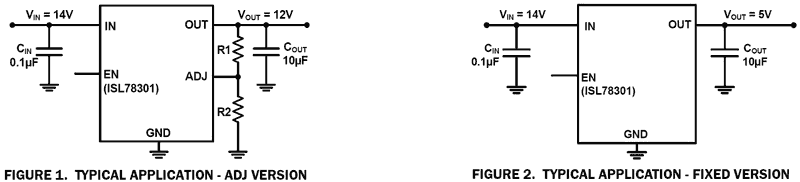

    ISL78301
    40V, Low Quiescent Current, 150mA Linear Regulator for Automotive Applications    		 6 40 2.5 12 0.15 是的 1.8 66 Automotive
    ISL78302
    Dual LDO with Low Noise, High Performance and Low IQ    		 2.3 6.5 1.2 3.3 0.3 0.3 是的 1.8 64 37 Automotive

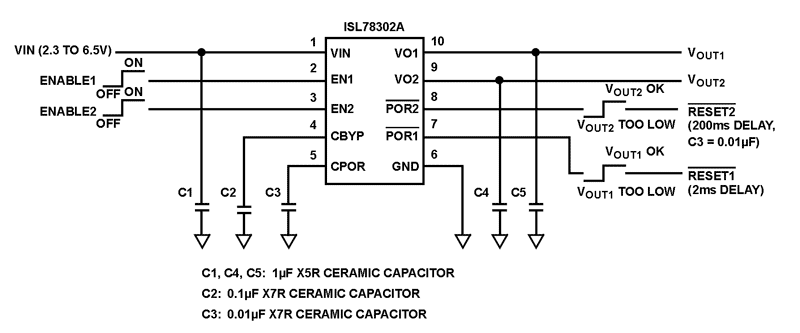

    ISL78302A
    Dual LDO with Low Noise, Very High PSRR and Low IQ    		 2.3 6.5 1.5 3 0.3 0.3 是的 1.8 90 30 Automotive
    ISL78310
    High Performance 1A LDO    		 2.2 6 0.8 5 1 是的 1.8 72 63 Automotive
