适用于 HEV/EV 电机逆变器的高压栅极驱动器。瑞萨电子计划扩大产品阵容来满足客户的广泛需求，如提高效率、降低成本和增强安全性能。

如需了解 48V 电源系统的栅极驱动器（如 MHEV），请参阅半桥、全桥和三相汽车驱动器页面。

汽车产品

产品选型表

    Processing table
    器件号
    Channels (#)
    Input Voltage (Max) [Rail 1] (V)
    Input Voltage (Max) [Rail 2] (V)
    Isolation Voltage (Vrms)
    Common Mode Transient Immunity (kV/µs)
    On Resistance (Ω)
    Turn-On Prop Delay (ns)
    Turn-Off Prop Delay (ns)
    IGBT temperature monitor
    Parametric Applications
    Qualification Level
    Pkg. Type
    Temp. Range
    DA29020
    Glow Plug Current Controller     		TQFP48
    ISL78420
    100V, 2A Peak, Half-Bridge Driver with Tri-Level PWM Input and Adjustable Dead-Time    		 32 32 Automotive TSSOP-EP -40 to 125°C
    ISL78424
    100V Boot, 4A Peak, Half-Bridge Driver with Single PWM Input and Adaptive Dead Time Control    		 45 45 Automotive TSSOP-EP
    ISL78434
    100V Boot, 4A Peak, Half-Bridge Driver with Single PWM Input and Adaptive Dead Time Control    		 45 45 Automotive TSSOP-EP
    ISL78444
    100V Boot, 4A Peak, Half-Bridge Driver with Single PWM Input and Adaptive Dead Time Control    		 45 45 Automotive TSSOP-EP

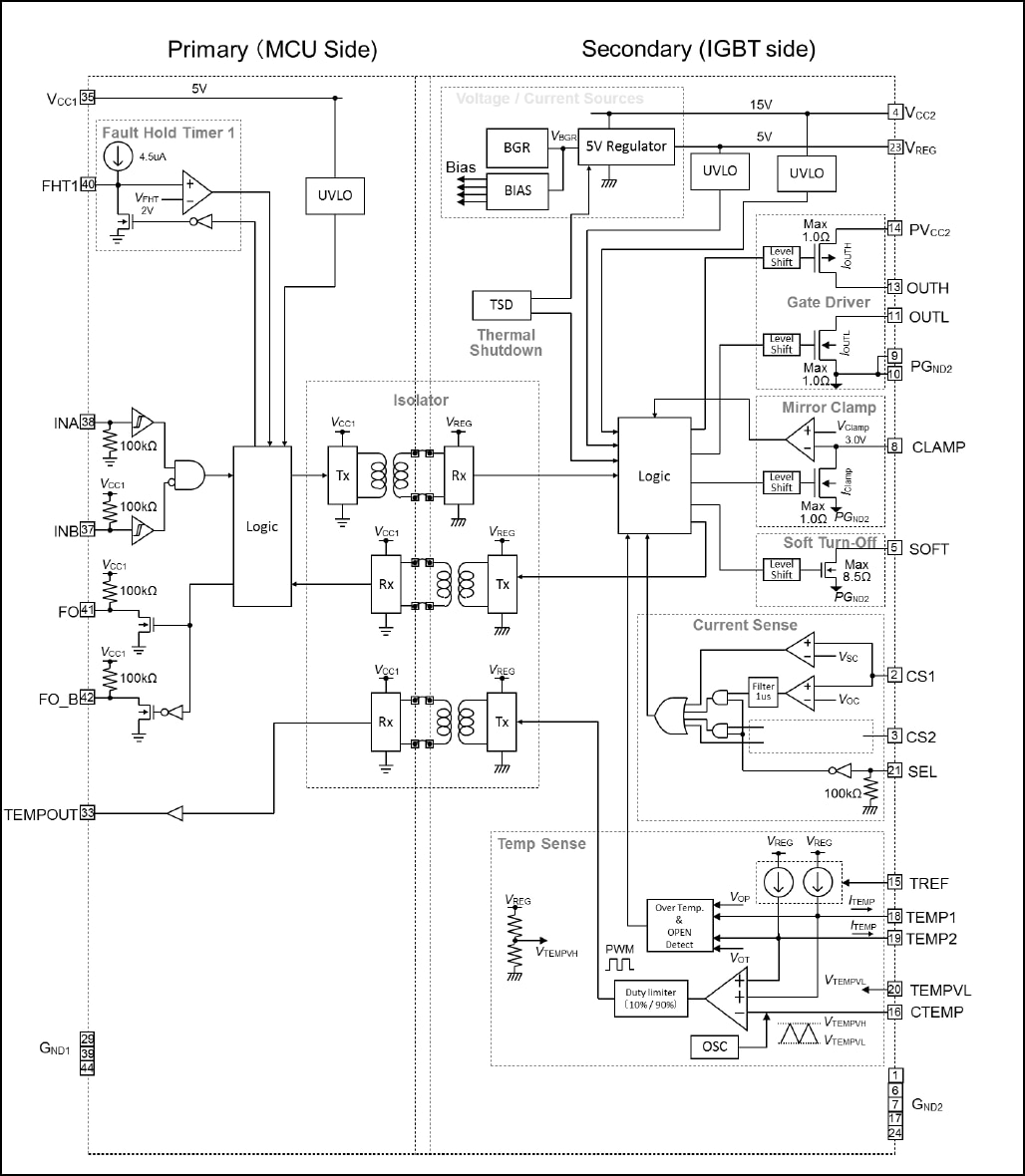

    R2A25110KSP
    适用于 HEV/EV 的栅极驱动器    		 1 4.5 - 5.5 12.5 - 21.5 2500 35 1 140 140 Available (PWM output) Automotive Inverter/Converter Automotive SSOP48 -40 to 125°C

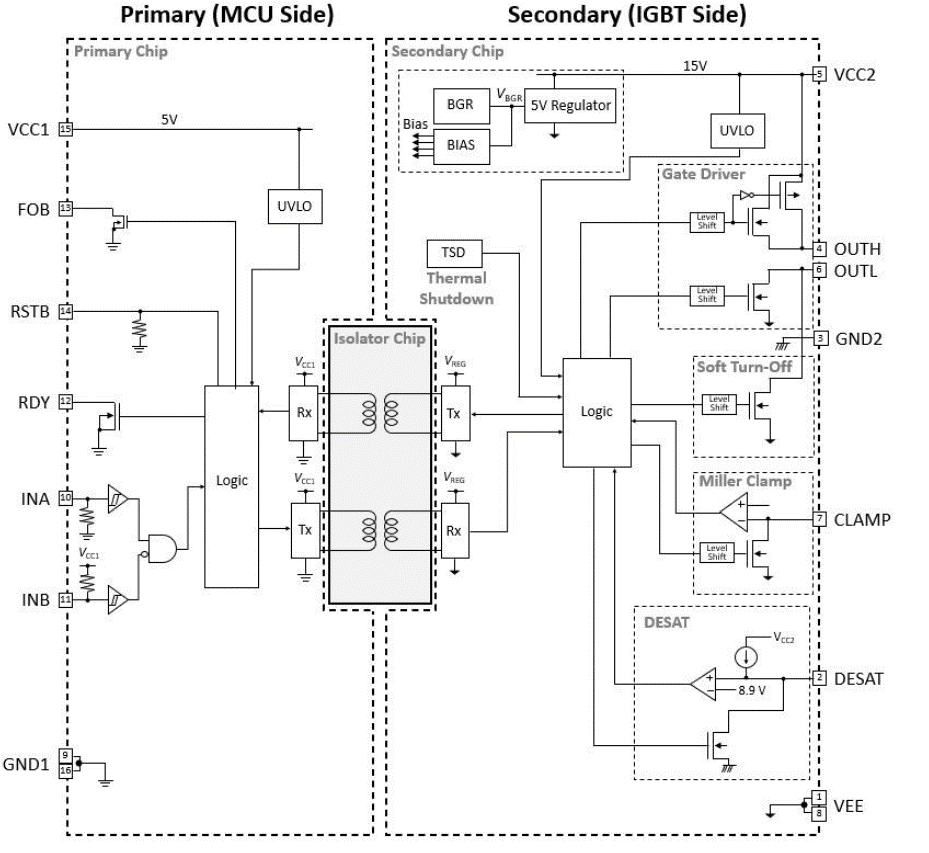

    RAJ2930004AGM
    Gate Driver for HEV/EV    		 1 4.5 - 5.5 12.5 - 33 3750 150 0.3 140 140 None DC-DC converter for EV, On-board charger for EV, Traction inverter for EV Automotive SOP16 -40 to 125°C
