储存器和逻辑器件

瑞萨是先进先出 (FIFO) 领域的市场领导者，拥有同步 FIFO、异步 FIFO、队列 FIFO 和双向 FIFO 产品，可帮助设计人员解决速率匹配、缓冲和总线匹配等芯片间通信协议问题。 并行 FIFO 结构允许设计任何字节大小，而串行 FIFO 通信则可提供与其他结构之间的快速简单链路。

瑞萨并行 FIFO 产品的优势包括：

  • 用于高性能应用的卓越现成并行 FIFO 解决方案，如网络、无线基站、图形、医疗成像、数据采集和工业自动化
  • 帮助设计人员解决速率匹配、缓冲和总线匹配等芯片间通信协议问题的标准并行 FIFO 产品

分类

同步 FIFO

用于缓冲大量数据的内存

异步 FIFO

在传输完成之前，允许继续进行其他数据处理的内存

队列 FIFOs

在配置列队方面提供灵活性的器件

产品选型表

    Processing table
    Core Voltage (V)
    Bus Width (bits)
    Density (Kb)
    Pkg. Code
    Interface
    I/O Type
    I/O Frequency (MHz)
    Organization
    Temp. Range
    Architecture
    Access Time (ns)
    105°C Max. Case Temp.
    器件号
    7200
    256 x 9 AsyncFIFO, 5.0V    		 5 9 2 PEG28, PLG32 Asynchronous 5.0 V TTL 256 x 9 -40 to 85°C, 0 to 70°C Uni-directional 12, 15

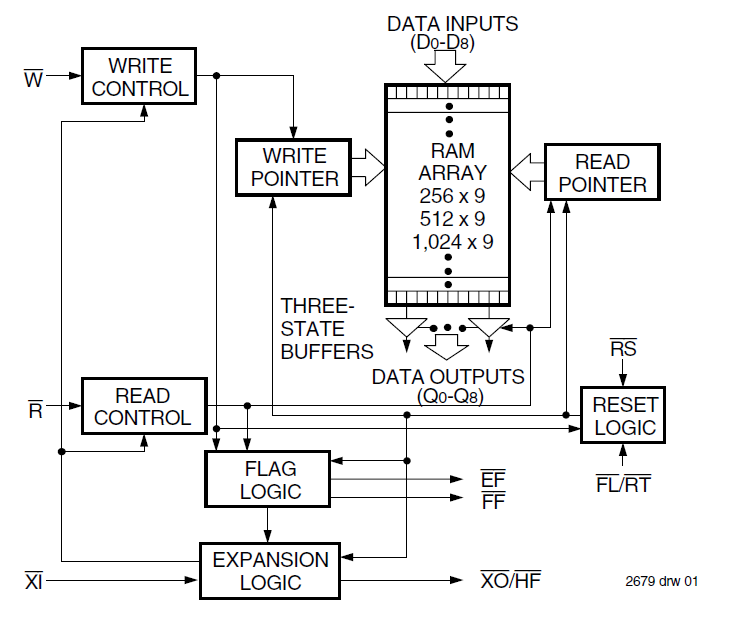

    7201
    512 x 9 AsyncFIFO, 5.0V    		 5 9 4 PEG28, PLG32, PTG28 Asynchronous 5.0 V TTL 512 x 9 -40 to 85°C, 0 to 70°C Uni-directional 12, 15
    7202
    1K x 9 AsyncFIFO, 5.0V    		 5 9 9 PEG28, PLG32, PTG28 Asynchronous 5.0 V TTL 1K x 9 -40 to 85°C, 0 to 70°C Uni-directional 12, 15, 50
    7203
    2K x 9 AsyncFIFO, 5.0V    		 5 9 18 PLG32, PTG28 Asynchronous 5.0 V TTL 2K x 9 -40 to 85°C, 0 to 70°C Uni-directional 12, 15
    7204
    4K x 9 AsyncFIFO, 5.0V    		 5 9 36 PEG28, PLG32, PTG28 Asynchronous 5.0 V TTL 4K x 9 -40 to 85°C, 0 to 70°C Uni-directional 12, 15
    7205
    8K x 9 AsyncFIFO, 5.0V    		 5 9 72 PLG32, PTG28 Asynchronous 5.0 V TTL 8K x 9 -40 to 85°C, 0 to 70°C Uni-directional 12, 15

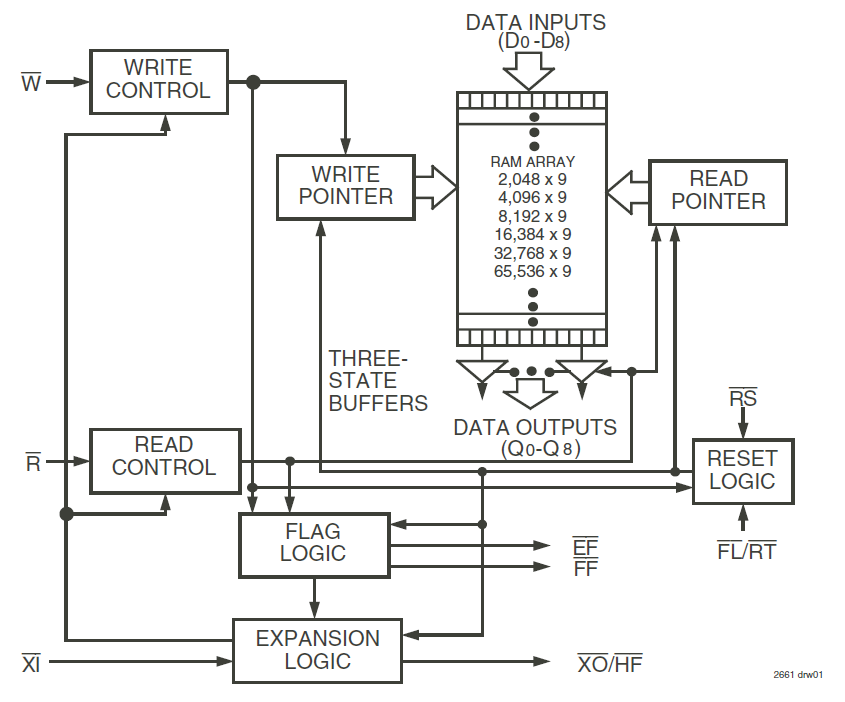

    7206
    16K x 9 AsyncFIFO, 5.0V    		 5 9 144 PLG32 Asynchronous 5.0 V TTL 16K x 9 0 to 70°C Uni-directional 15
    7207
    32K x 9 AsyncFIFO, 5.0V    		 5 9 288 PLG32 Asynchronous 5.0 V TTL 32K x 9 -40 to 85°C, 0 to 70°C Uni-directional 15, 20
    7208
    64K x 9 AsyncFIFO, 5.0V    		 5 9 512 PLG32 Asynchronous 5.0 V TTL 64K x 9 -40 to 85°C, 0 to 70°C Uni-directional 20, 25

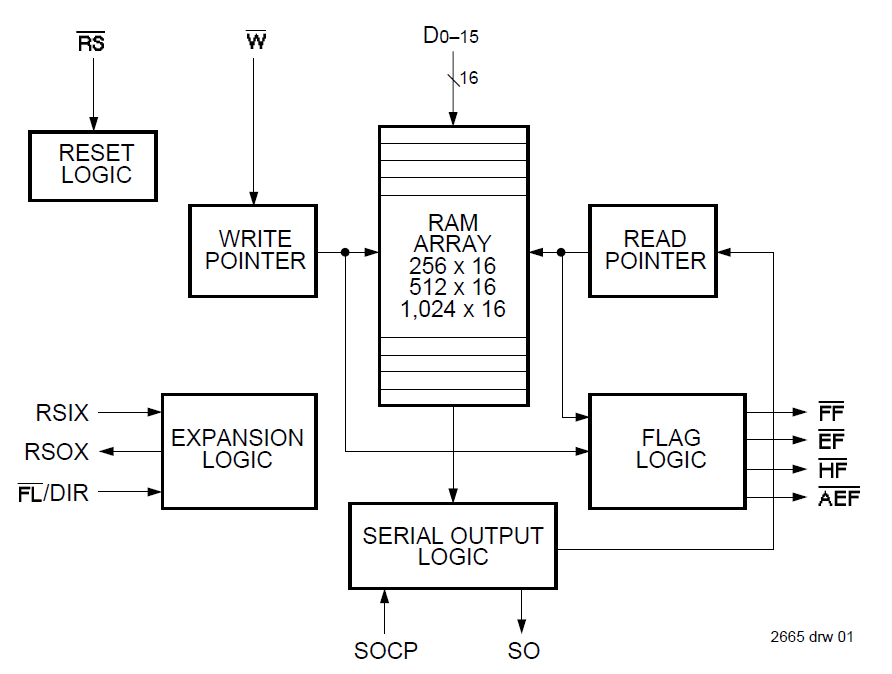

    72125
    1K x 16 Parallel-to-Serial FIFO, 5.0V    		 5 16 16 PEG28, PTG28 Asynchronous 5.0 V TTL 1K x 16 0 to 70°C Parallel/Serial FIFOs 25
    72205
    256 x 18 SyncFIFO, 5.0V    		 5 18 4 PNG64 Synchronous 5.0 V TTL 100 256 x 18 0 to 70°C Uni-directional
    72215
    512 x 18 SyncFIFO, 5.0V    		 5 18 9 PNG64 Synchronous 5.0 V TTL 100, 66 512 x 18 -40 to 85°C, 0 to 70°C Uni-directional
    72225
    1K x 18 SyncFIFO, 5.0V    		 5 18 18 PNG64, PPG64 Synchronous 5.0 V TTL 100, 66 1K x 18 -40 to 85°C, 0 to 70°C Uni-directional

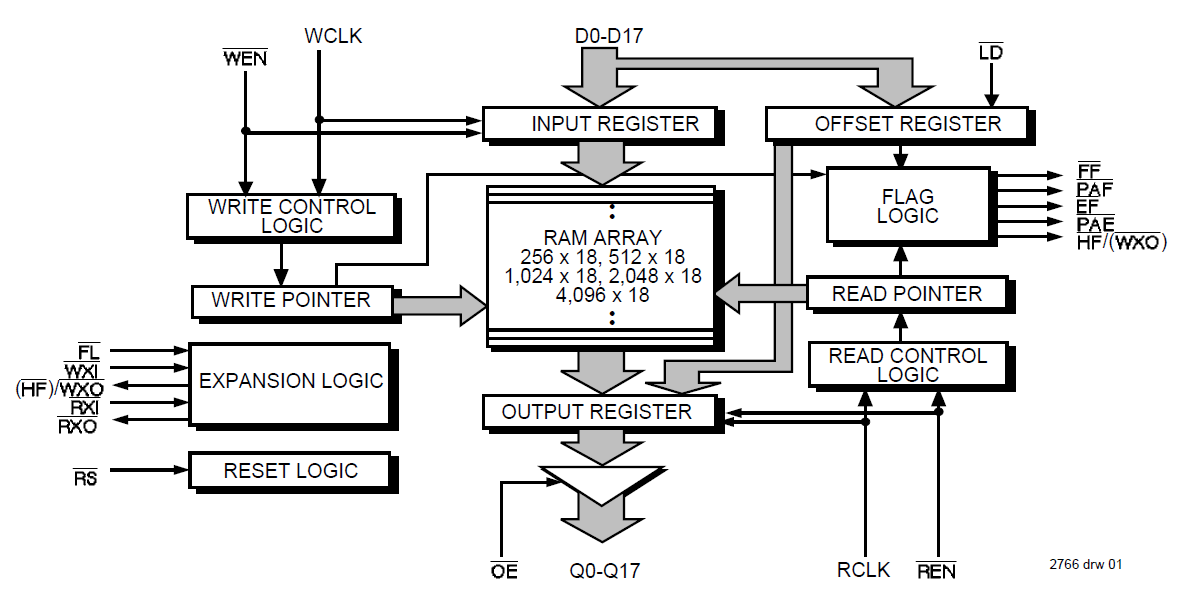

    72235
    2K x 18 SyncFIFO, 5.0V    		 5 18 36 PLG68, PNG64, PPG64 Synchronous 5.0 V TTL 100, 66 2K x 18 -40 to 85°C, 0 to 70°C Uni-directional
    72245
    4K x 18 SyncFIFO, 5.0V    		 5 18 64 PNG64 Synchronous 5.0 V TTL 100 4K x 18 0 to 70°C Uni-directional

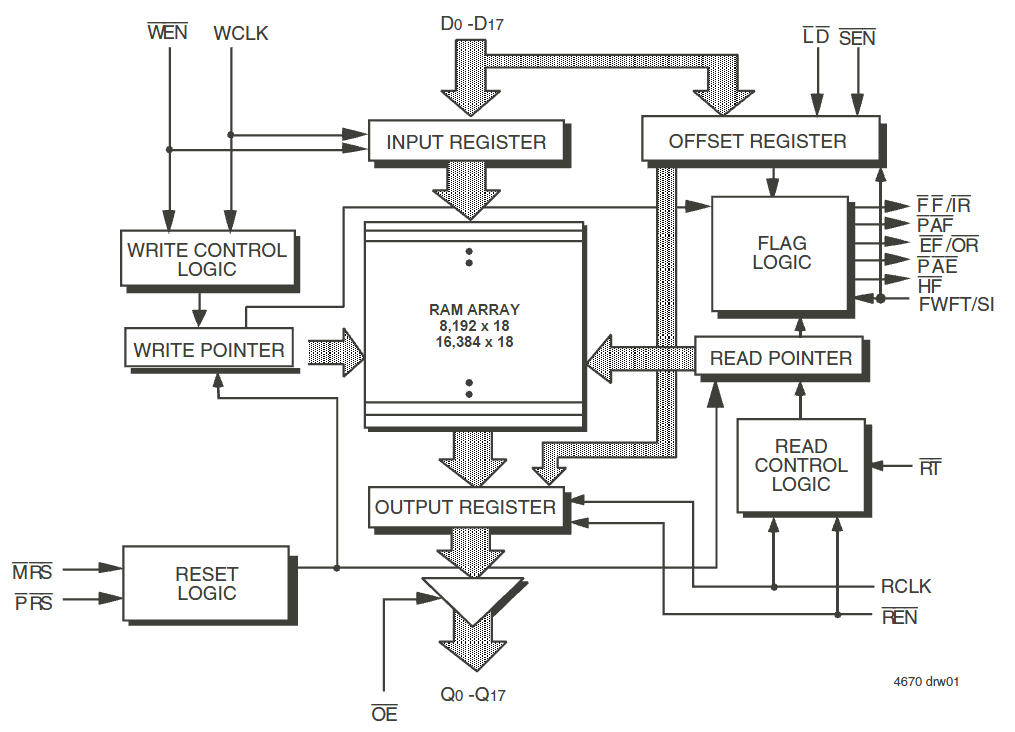

    72255
    8K x 18 SuperSync FIFO, 5.0V    		 5 18 144 PNG64, PPG64 Synchronous 5.0 V TTL 100, 66 8K x 18 -40 to 85°C, 0 to 70°C Uni-directional
    72261
    16K x 9 SuperSync FIFO, 5.0V    		 5 9 144 PNG64, PPG64 Synchronous 5.0 V TTL 66, 100 16K x 9 -40 to 85°C, 0 to 70°C Uni-directional
    72265
    16K x 18 SuperSync FIFO, 5.0V    		 5 18 288 PNG64, PPG64 Synchronous 5.0 V TTL 100, 66 16K x 18 -40 to 85°C, 0 to 70°C Uni-directional

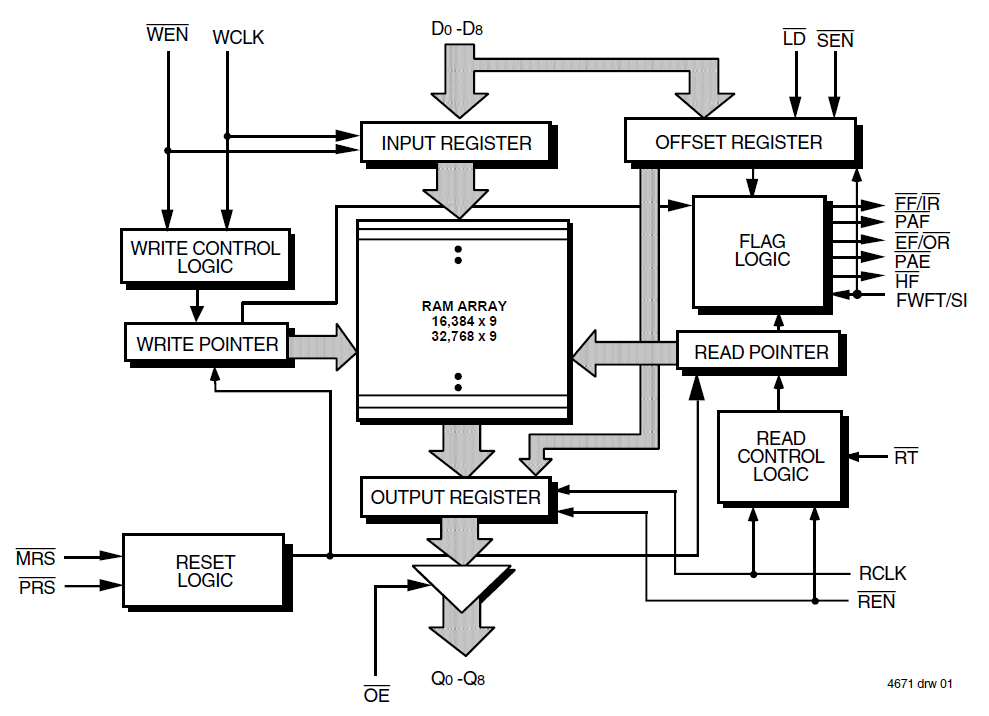

    72271
    32K x 9 SuperSync FIFO, 5.0V    		 5 9 288 PNG64 Synchronous 5.0 V TTL 100 32K x 9 0 to 70°C Uni-directional

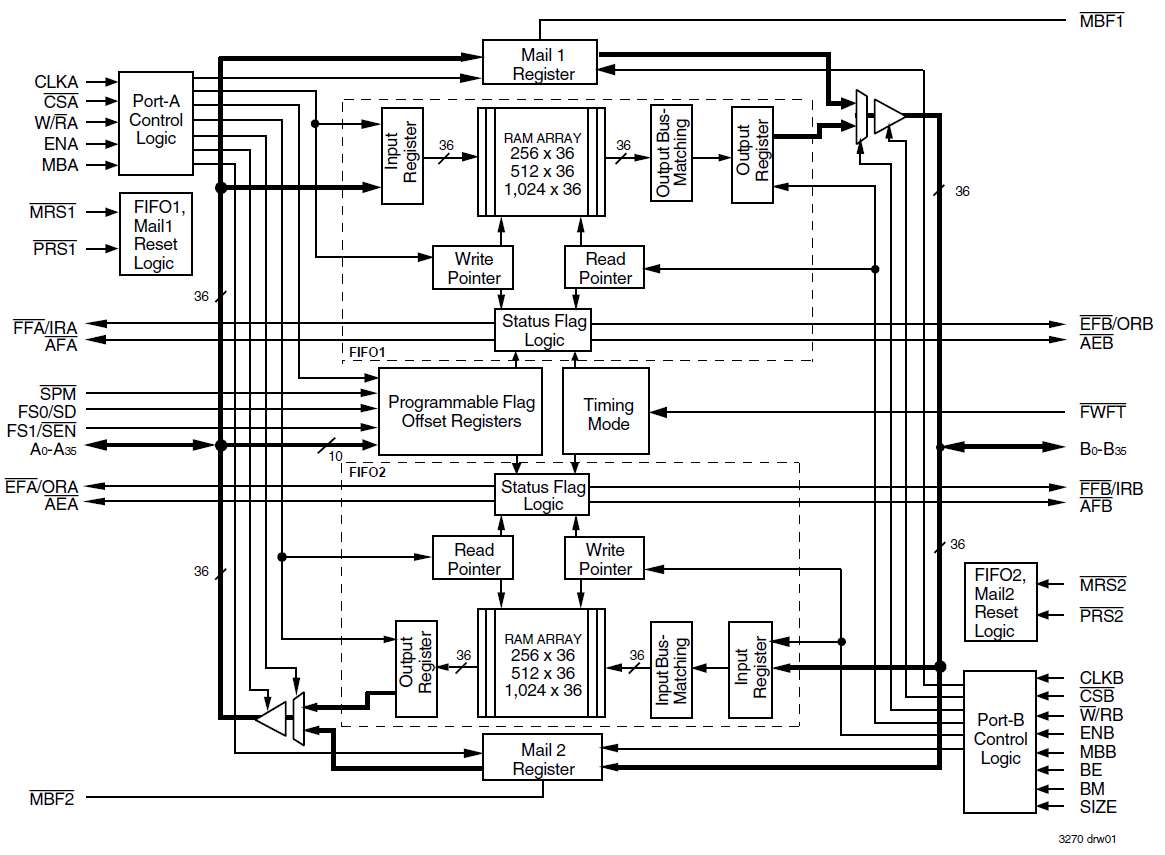

    723624
    256 x 36 x 2 SyncBiFIFO, 5.0V    		 5 36 18 PKG128 Synchronous 5.0 V TTL 66 256 x 36 x 2 0 to 70°C Bi-directional

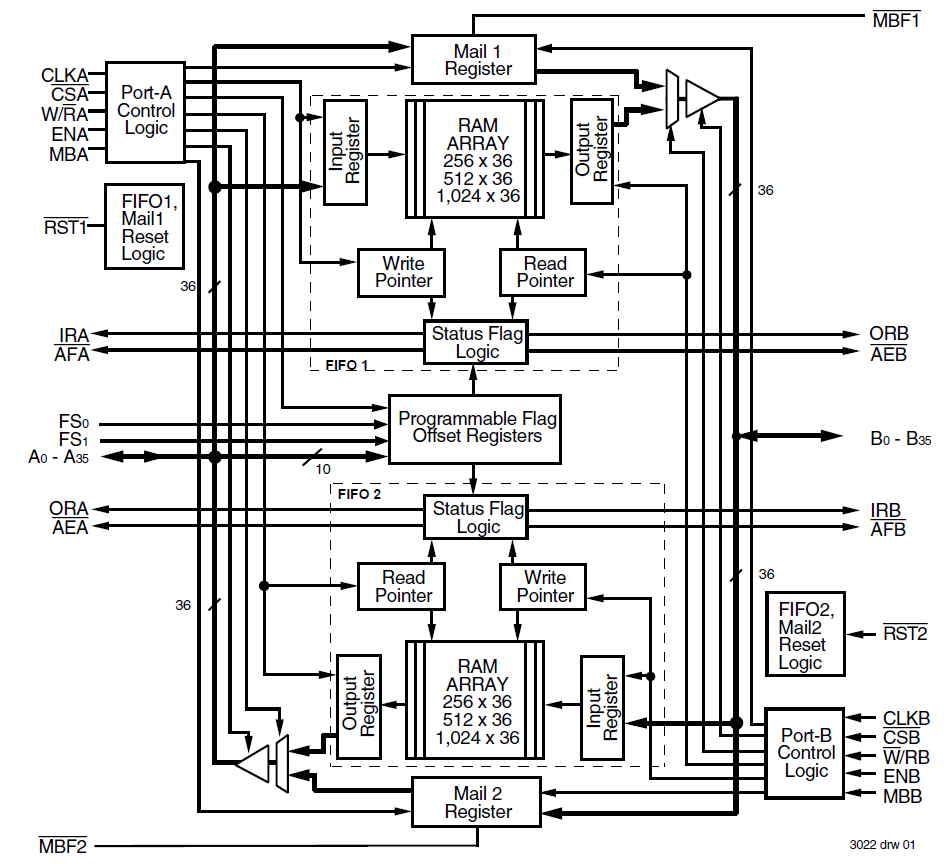

    723632
    512 x 36 x 2 SyncBiFIFO, 5.0V    		 5 36 36 PNG120 Synchronous 5.0 V TTL 66 512 x 36 x 2 0 to 70°C Bi-directional

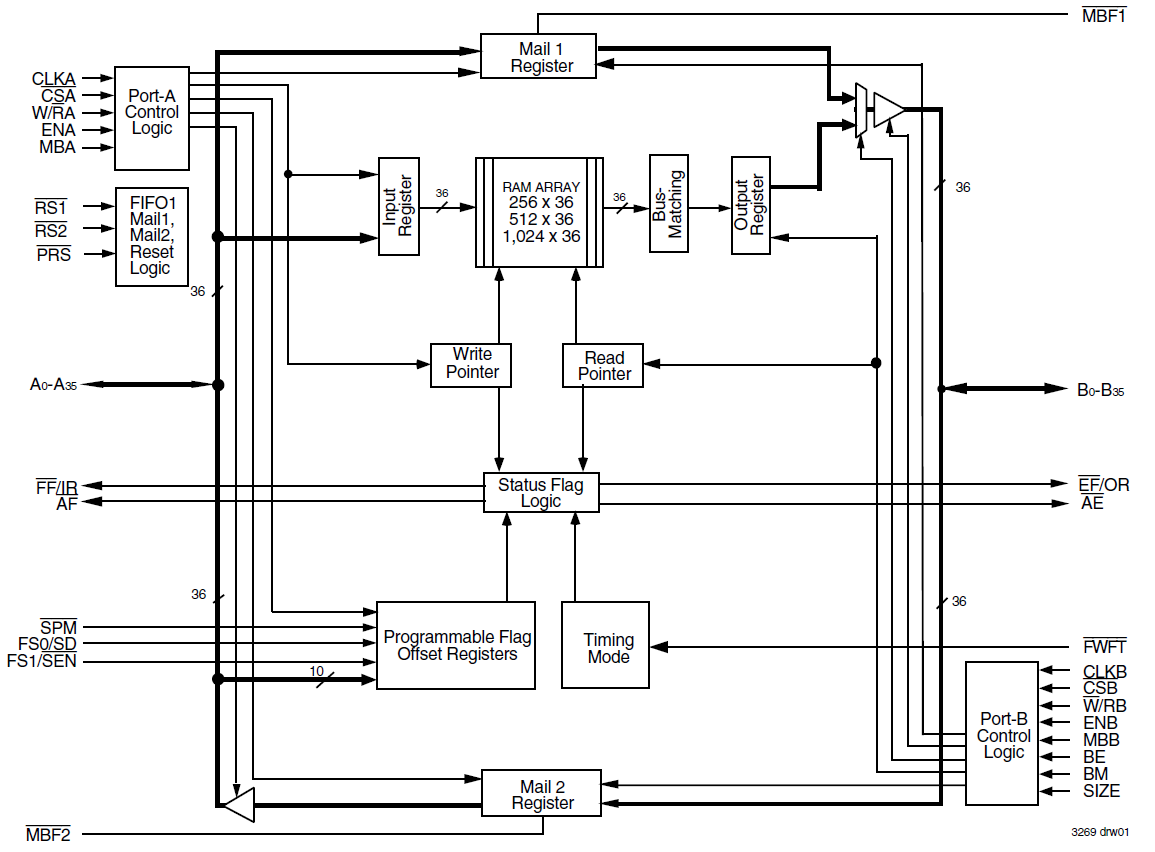

    723633
    512 x 36 SyncFIFO, 5.0V    		 5 36 9 PKG128 Synchronous 5.0 V TTL 83 512 x 36 0 to 70°C Uni-directional
    723651
    2K x 36 SyncFIFO, 5.0V    		 5 36 72 PNG120 Synchronous 5.0 V TTL 50 2K x 36 -40 to 85°C Uni-directional

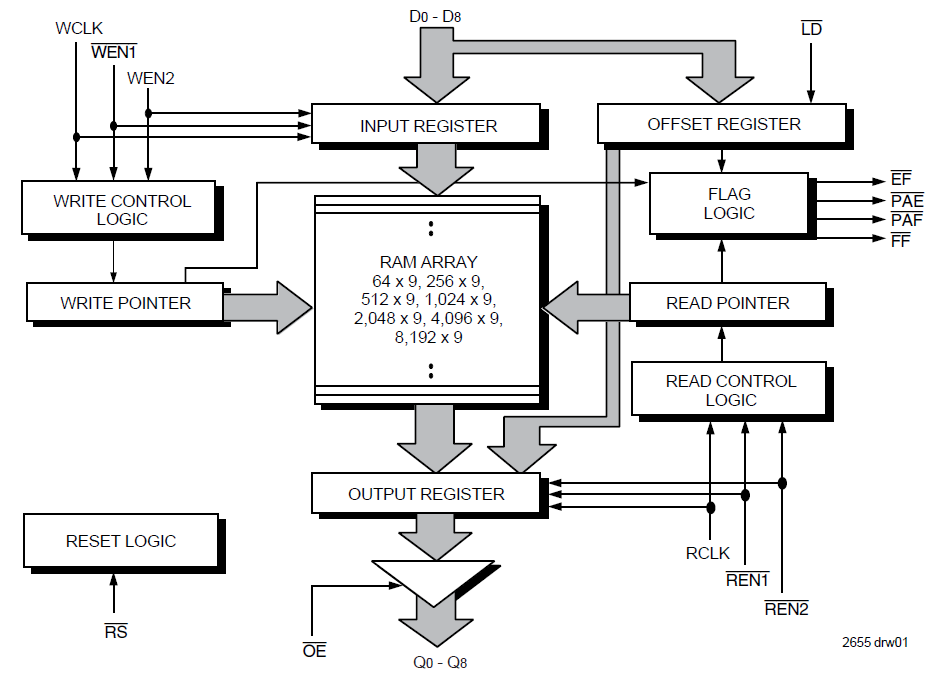

    72421
    64 x 9 SyncFIFO, 5.0V    		 5 9 1 PR32 Synchronous 5.0 V TTL 100 64 x 9 0 to 70°C Uni-directional

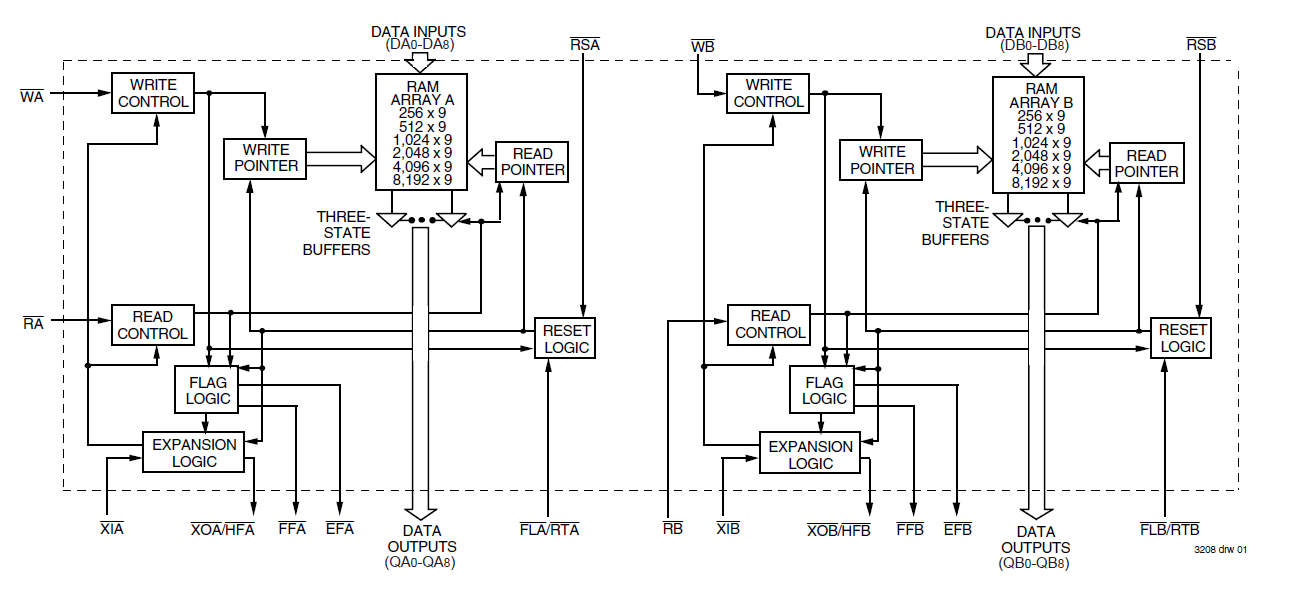

    7282
    1K x 9 DualAsync FIFO, 5.0V    		 5 9 9 PAG56 Asynchronous 5.0 V TTL 1K x 9 0 to 70°C Dual FIFO 12
    72T18105
    128K x 18 / 256K x 9 TeraSync FIFO, 2.5V    		 2.5 18 2048 BB240, BBG240 Synchronous 1.5 V HSTL, 1.8 V HSTL, 2.5 V LVTTL, 3.3 V LVTTL 100, 225, 200, 150 128K x 18, 256K x 9 -40 to 85°C, 0 to 70°C Uni-directional

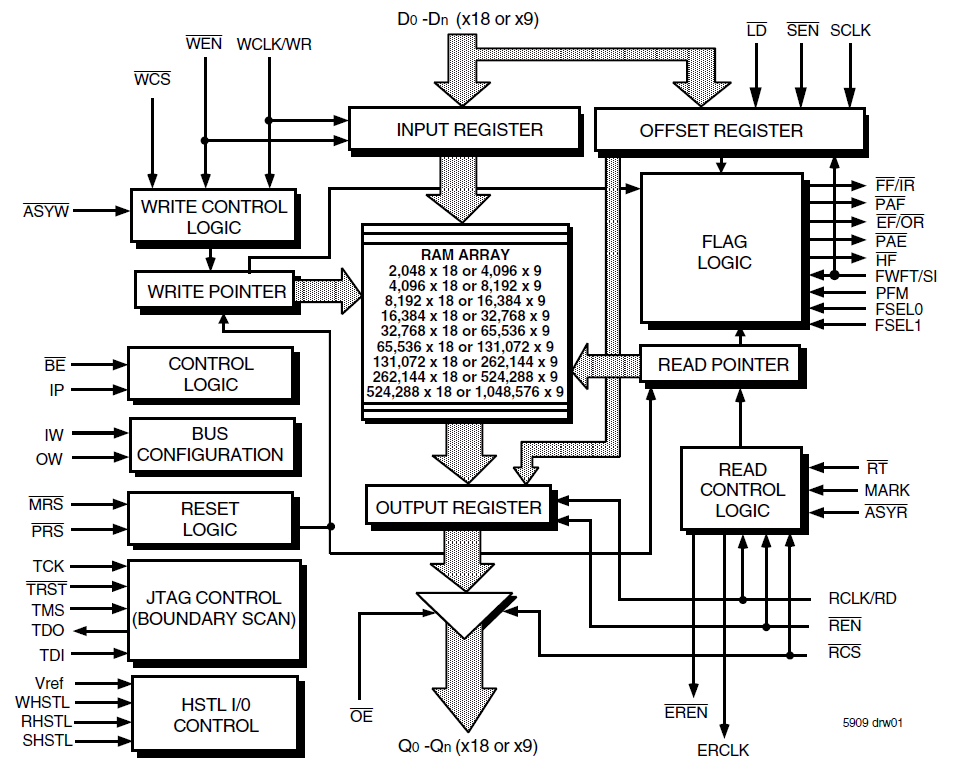

    72T18115
    256K x 18 / 512K x 9 TeraSync FIFO, 2.5V    		 2.5 18 4096 BB240 Synchronous 1.5 V HSTL, 1.8 V HSTL, 2.5 V LVTTL, 3.3 V LVTTL 100, 225, 200, 150 256K x 18, 512K x 9 -40 to 85°C, 0 to 70°C Uni-directional
    72T18125
    512K x 18 / 1M x 9 TeraSync FIFO, 2.5V    		 2.5 18 9216 BB240, BBG240 Synchronous 1.5 V HSTL, 2.5 V LVTTL, 3.3 V LVTTL 100, 225, 200, 150 1M x 9, 512K x 18 -40 to 85°C, 0 to 70°C Uni-directional
    72T36105
    64K x 36 TeraSync FIFO, 2.5V    		 2.5 36 2048 BB240 Synchronous 1.5 V HSTL, 1.8 V HSTL, 2.5 V LVTTL, 3.3 V LVTTL 100, 225, 200, 150 64K x 36 -40 to 85°C, 0 to 70°C Uni-directional
    72T36115
    128K x 36 TeraSync FIFO, 2.5V    		 2.5 36 4096 BB240 Synchronous 1.5 V HSTL, 1.8 V HSTL, 2.5 V LVTTL, 3.3 V LVTTL 100, 225, 200, 150 128K x 36 -40 to 85°C, 0 to 70°C Uni-directional

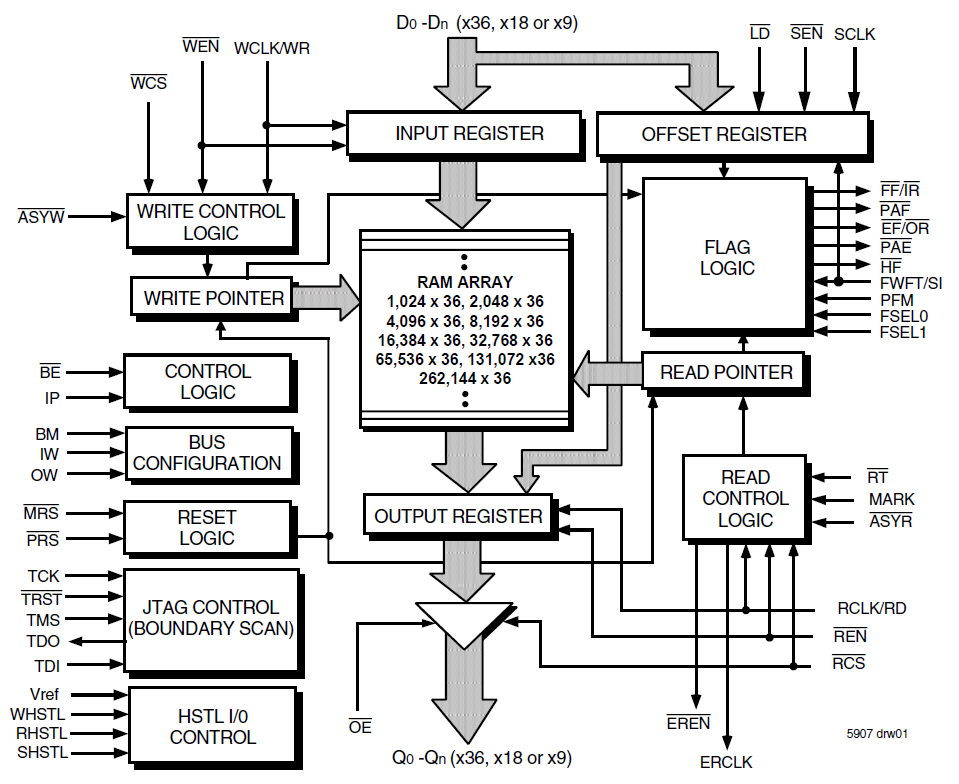

    72T36125
    256K x 36 TeraSync FIFO, 2.5V    		 2.5 36 9216 BB240, BBG240 Synchronous 1.5 V HSTL, 2.5 V LVTTL, 3.3 V LVTTL 100, 225, 200, 150 256K x 36 -40 to 85°C, 0 to 70°C Uni-directional
    72T72105
    64K x 72 TeraSync FIFO, 2.5V    		 2.5 72 4096 BB324, BBG324 Synchronous 1.5 V HSTL, 1.8 V HSTL, 2.5 V LVTTL, 3.3 V LVTTL 100, 225, 200, 150 64K x 72 -40 to 85°C, 0 to 70°C Uni-directional
    72T72115
    128K x 72 TeraSync FIFO, 2.5V    		 2.5 72 9216 BB324, BBG324 Synchronous 1.5 V HSTL, 2.5 V LVTTL, 3.3 V LVTTL 100, 225, 200, 150 128K x 72 -40 to 85°C, 0 to 70°C Uni-directional

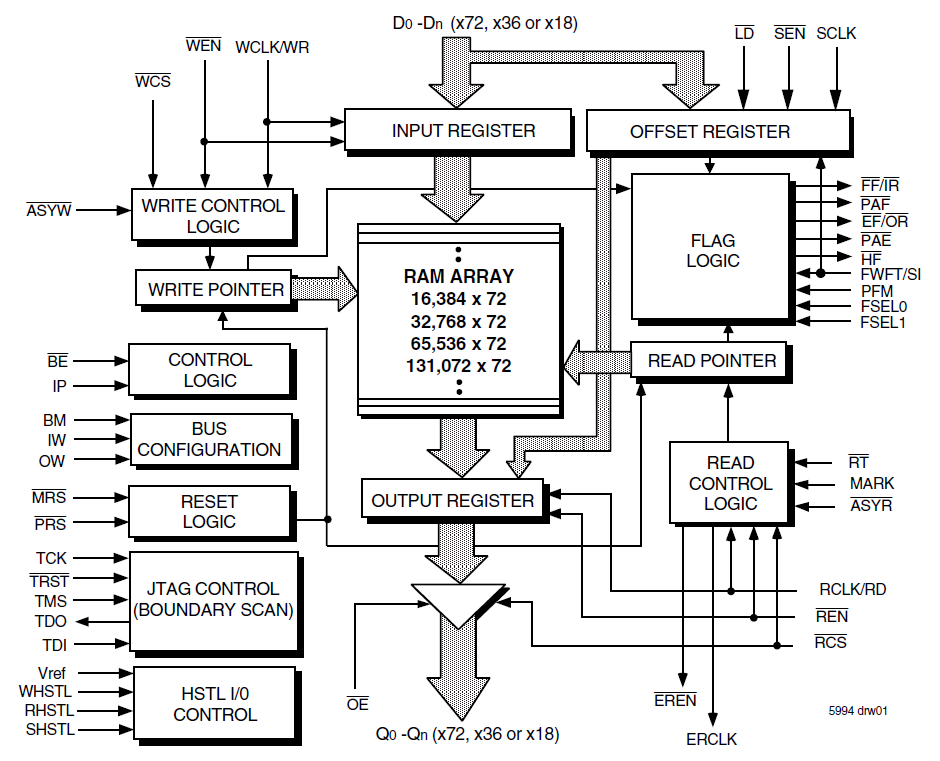

    72T7285
    16K x 72 TeraSync FIFO, 2.5V    		 2.5 72 1024 BB324, BBG324 Synchronous 1.5 V HSTL, 1.8 V HSTL, 2.5 V LVTTL, 3.3 V LVTTL 100, 225, 200, 150 16K x 72 0 to 70°C Uni-directional
    72T7295
    32K x 72 TeraSync FIFO, 2.5V    		 2.5 72 2048 BB324, BBG324 Synchronous 1.5 V HSTL, 2.5 V LVTTL, 3.3 V LVTTL 100, 225, 200, 150 32K x 72 0 to 70°C Uni-directional
    72V01
    512 x 9 AsyncFIFO, 3.3V    		 3.3 9 4 PLG32 Asynchronous 3.3 V LVTTL 512 x 9 -40 to 85°C, 0 to 70°C Uni-directional 15, 25

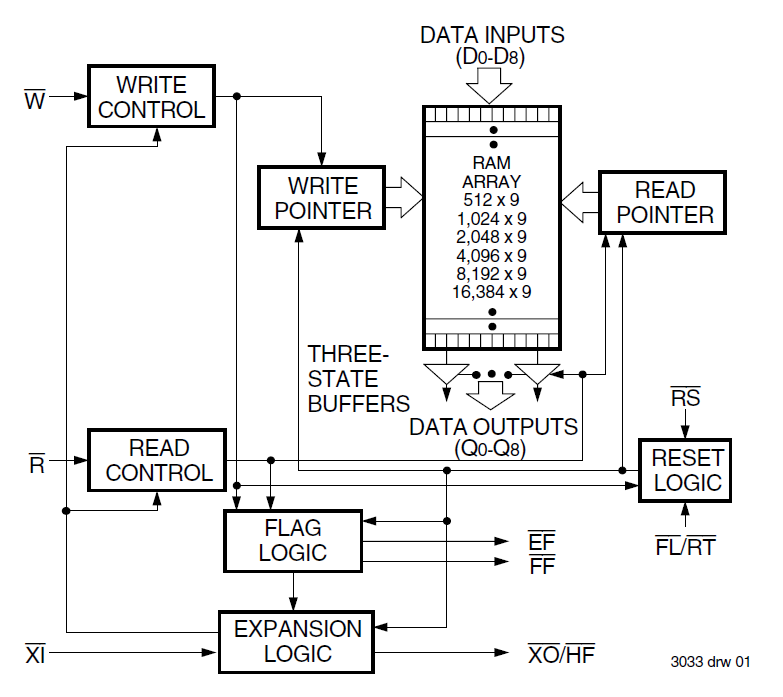

    72V02
    1K x 9 AsyncFIFO, 3.3V    		 3.3 9 9 PLG32 Asynchronous 3.3 V LVTTL 1K x 9 -40 to 85°C, 0 to 70°C Uni-directional 15, 25
    72V03
    2K x 9 AsyncFIFO, 3.3V    		 3.3 9 18 PLG32 Asynchronous 3.3 V LVTTL 2K x 9 -40 to 85°C, 0 to 70°C Uni-directional 15, 25
    72V04
    4K x 9 AsyncFIFO, 3.3V    		 3.3 9 36 PLG32 Asynchronous 3.3 V LVTTL 4K x 9 -40 to 85°C, 0 to 70°C Uni-directional 15, 25
    72V05
    8K x 9 AsyncFIFO, 3.3V    		 3.3 9 72 PLG32 Asynchronous 3.3 V LVTTL 8K x 9 -40 to 85°C, 0 to 70°C Uni-directional 15, 25
    72V06
    16K x 9 AsyncFIFO, 3.3V    		 3.3 9 144 PLG32 Asynchronous 3.3 V LVTTL 16K x 9 -40 to 85°C, 0 to 70°C Uni-directional 15, 25

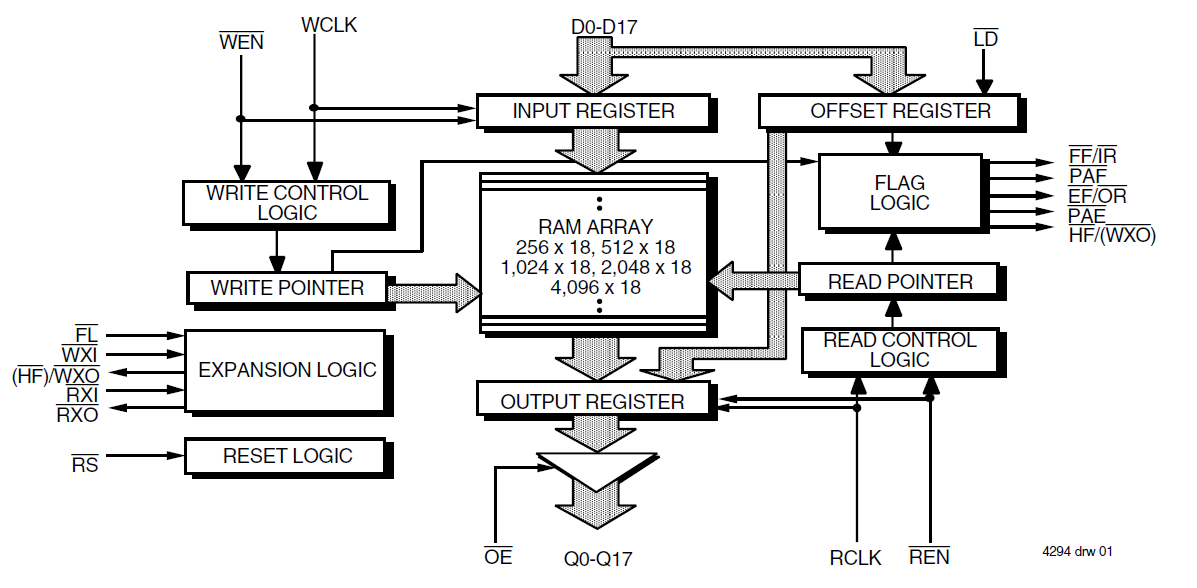

    72V205
    256 x 18 SyncFIFO, 3.3V    		 3.3 18 4 PNG64, PPG64 Synchronous 3.3 V LVTTL 100, 66 256 x 18 -40 to 85°C, 0 to 70°C Uni-directional

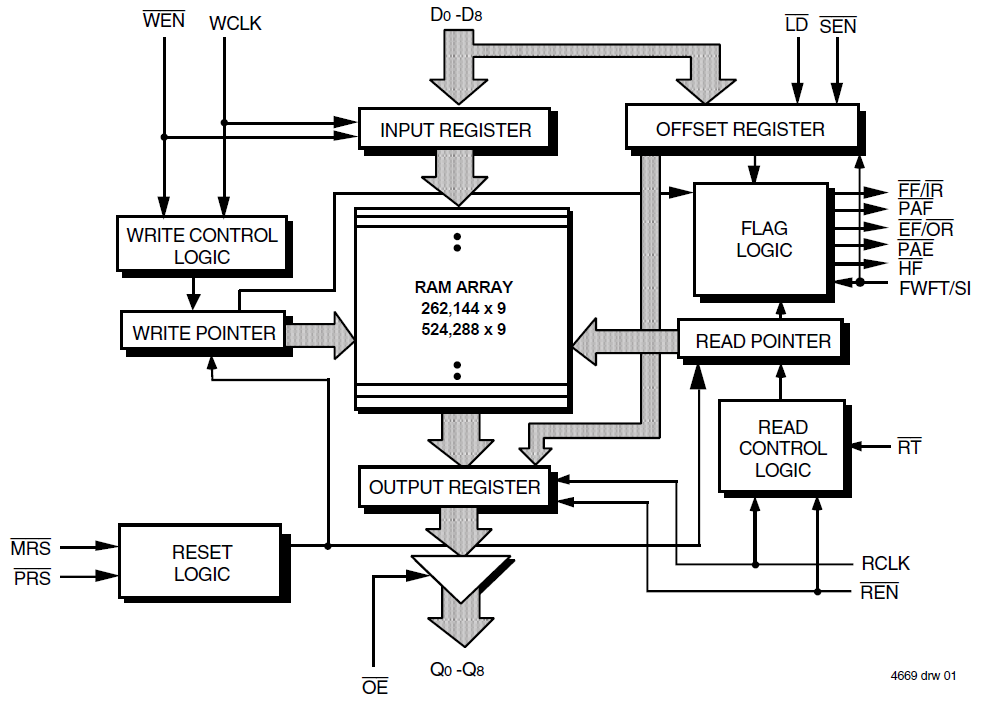

    72V2101
    256K x 9 SuperSync FIFO, 3.3V    		 3.3 9 2048 PNG64 Synchronous 3.3 V LVTTL 100 256K x 9 0 to 70°C Uni-directional
    72V2103
    128K x 18 / 256K x 9 SuperSync II FIFO, 3.3V    		 3.3 18 2048 BC100, BCG100, PNG80 Synchronous 3.3 V LVTTL 66, 166, 133 128K x 18, 256K x 9 -40 to 85°C, 0 to 70°C Uni-directional

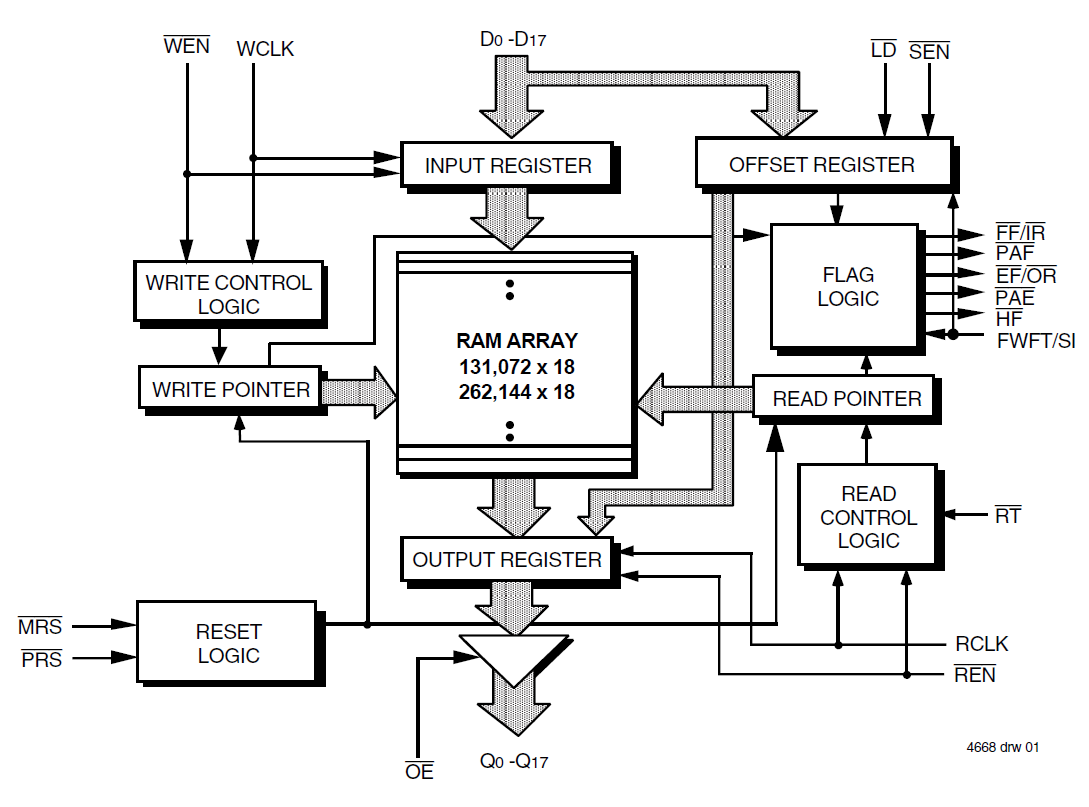

    72V2105
    256K x 18 SuperSync FIFO, 3.3V    		 3.3 18 4096 PNG64 Synchronous 3.3 V LVTTL 100, 66 256K x 18 -40 to 85°C, 0 to 70°C Uni-directional
    72V2111
    512K x 9 SuperSync FIFO, 3.3V    		 3.3 9 4096 PNG64 Synchronous 3.3 V LVTTL 100, 66 512K x 9 -40 to 85°C, 0 to 70°C Uni-directional

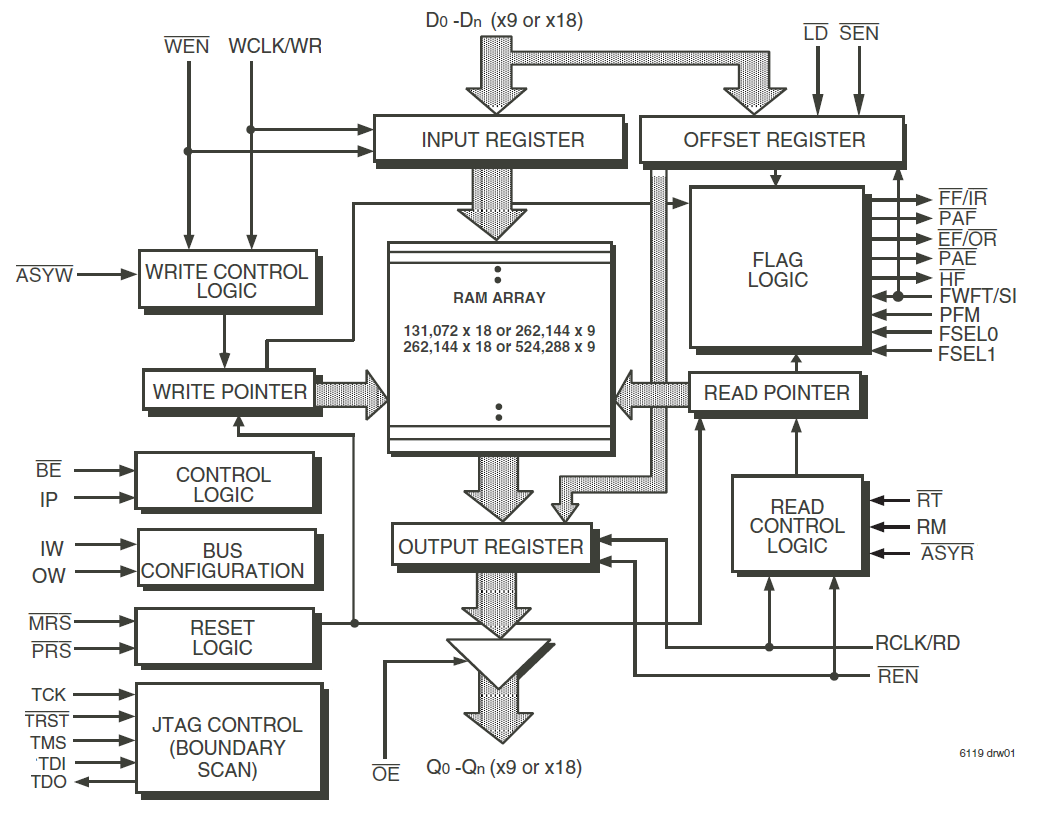

    72V2113
    256K x 18 / 512K x 9 SuperSync II FIFO, 3.3V    		 3.3 18 4096 BC100, BCG100, PNG80 Synchronous 3.3 V LVTTL 166, 133 256K x 18, 512K x 9 -40 to 85°C, 0 to 70°C Uni-directional
    72V215
    512 x 18 SyncFIFO, 3.3V    		 3.3 18 9 PPG64 Synchronous 3.3 V LVTTL 100, 66 512 x 18 -40 to 85°C, 0 to 70°C Uni-directional

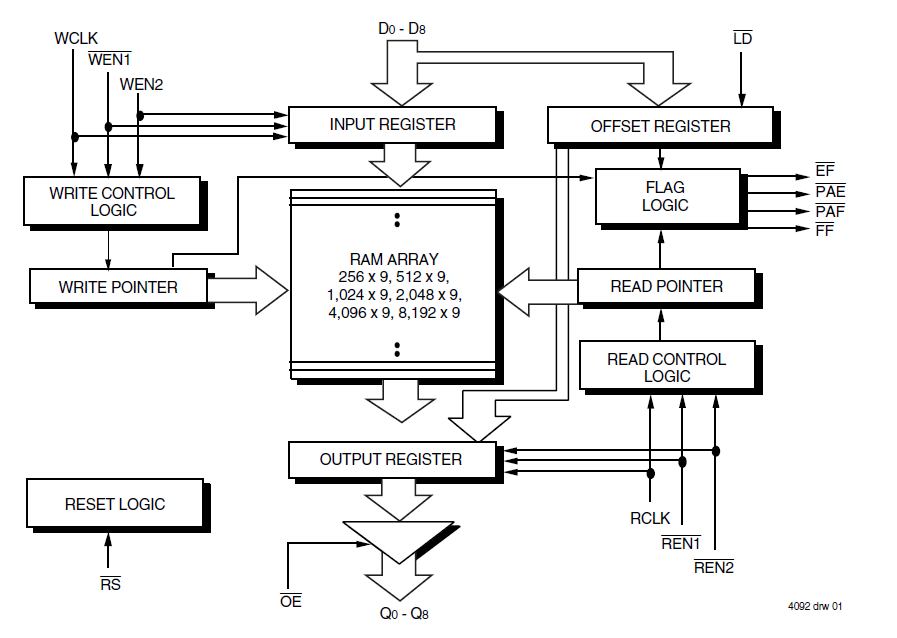

    72V221
    1K x 9 SyncFIFO, 3.3V    		 3.3 9 9 PRG32 Synchronous 3.3 V LVTTL 66 1K x 9 -40 to 85°C Uni-directional

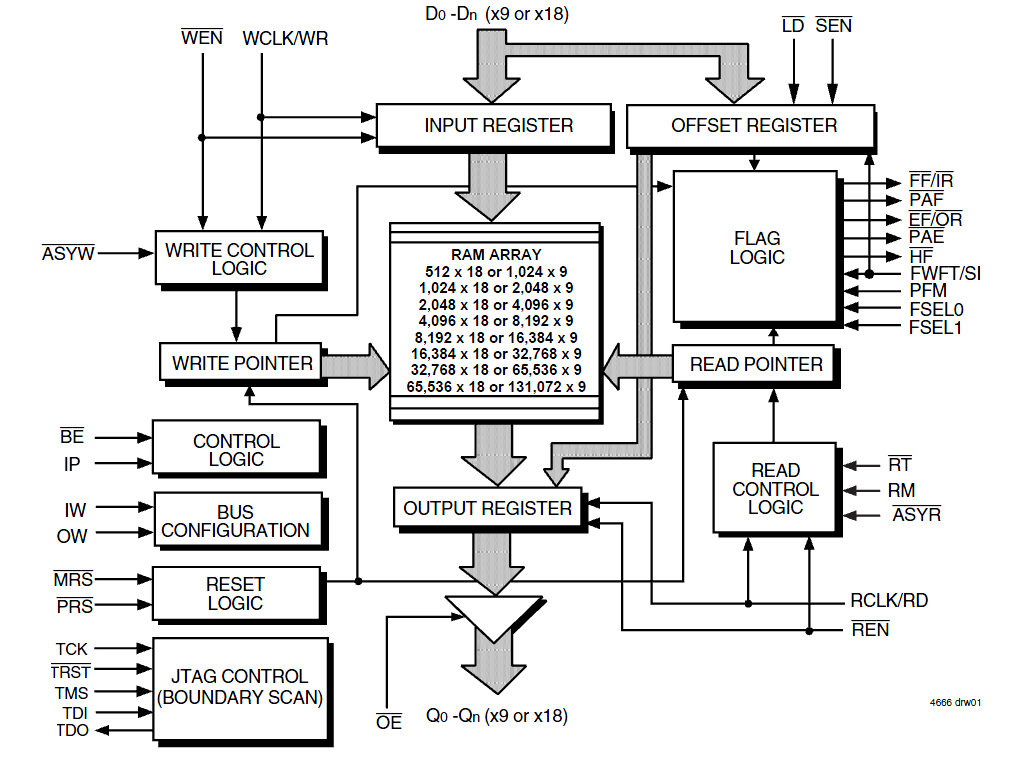

    72V223
    512 x 18 / 1K x 9 SuperSync II FIFO, 3.3V    		 3.3 18 9 BC100 Synchronous 3.3 V LVTTL 166, 133 1K x 9, 512 x 18 0 to 70°C Uni-directional
