Renesas insulated-gate bipolar transistors (IGBTs) help designers realize both low saturation voltage and fast switching through thin wafer technology. They, in turn, help to minimize power loss in power conversion systems. This product series is suitable for a variety of applications and includes IGBTs for inverters, power factor correction (PFC) and induction heating (IH).

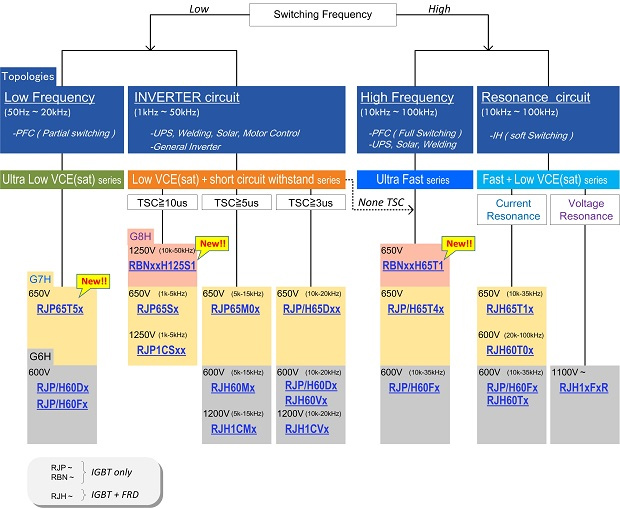

IGBT Product Lineup

IGBT Selection tree - Search from applications and characteristics

Design Topologies

Renesas offers a lineup of products with different voltage tolerances and design topologies suited to various applications including 650V or 1250V products for UPS or industrial inverters, 1800V IGBTs for wind power generation or solar inverter applications, and 650V products for air conditioner or induction heating.

Learn more about design topologies

IGBTs for Inverters

The IGBT product series for inverters is recommended for frequencies of 1k ~ 50kHz and is ideal for universal power supplies (UPS), motor control, solar power generation, and welding applications.

Power IGBTs for Inverters

IGBTs for Power Factor Correction (PFC)

Renesas' IGBT devices for power factor correction are recommended for frequencies of 50Hz ~ 100kHz and are ideal for UPS, solar power generation and welding applications.

Power IGBTs for PFC

Power IGBTs for Induction Heating (IH)

Renesas IGBTs offer soft switching for induction heating (IH) devices and are recommended for 10k to 100kHz frequencies.

Power IGBTs for IH

产品选型表

    Processing table
    Application
    Pkg. Type
    VCES (V)
    Ic (Peak) (A)
    IC @25 °C (A)
    IC @100 °C (A)
    VCE (sat) (V)
    tf (Typical) (µs)
    tsc (μs)
    FRD Vf (V)
    FRD trr (ns)
    Pc (W)
    Configuration
    Series Name
    器件号
    RBN25H125S1FPQ-A0
    IGBT 1250V 25A TO-247A Built-In FRD
    		 Inverter TO-247A 1250 100 50 25 1.8 0.058 10 2.9 102 223 Built-In FRD RBNxxH125S1 Series
    RBN40H125S1FPQ-A0
    IGBT 1250V 40A TO-247A Built-In FRD
    		 Inverter TO-247A 1250 160 80 40 1.8 0.067 10 2.8 156 319 Built-In FRD RBNxxH125S1 Series
    RBN40H65T1FPQ-A0
    IGBT 650V 40A TO-247A Built-In FRD
    		 Inverter TO-247A 650 160 80 40 1.5 0.045 1.7 55 185 Built-In FRD RBNxxH65T1 Series
    RBN50H65T1FPQ-A0
    IGBT 650V 50A TO-247A Built-In FRD
    		 Inverter TO-247A 650 200 100 50 1.5 0.04 2 65 250 Built-In FRD RBNxxH65T1 Series
    RBN75H125S1FP4-A0
    IGBT 1250V 75A TO-247plus Built-In FRD
    		 Inverter TO-247plus 1250 300 150 75 1.8 0.096 10 2.4 245 517 Built-In FRD RBNxxH125S1 Series
    RBN75H65T1FPQ-A0
    IGBT 650V 75A TO-247A Built-In FRD
    		 Inverter TO-247A 650 300 150 75 1.5 0.037 1.7 72 312 Built-In FRD RBNxxH65T1 Series
    RJH60T04DPQ-A1
    IGBT 600V 60A TO-247A Built-In FRD    		 IH Cooker TO-247A 600 180 60 30 1.5 0.045 1.2 100 208.3 Built-In FRD 60T0x Series
    RJH65T04BDPM-A0
    IGBT 650V 30A TO-3PFP Built-In FRD    		 PFC TO-3PFP 650 120 60 30 1.5 0.045 1.4 80 65 Built-In FRD 65T0x Series
    RJH65T14DPQ-A0
    IGBT 650V 50A TO-247A Built-In FRD    		 IH Cooker TO-247A 650 180 100 50 1.45 0.115 1.2 250 250 Built-In FRD 65T1x Series
    RJH65T46DPQ-A0
    IGBT 650V 40A TO-247A Built-In FRD    		 PFC TO-247A 650 300 80 40 1.8 0.045 1.7 100 340.9 Built-In FRD 65T4x Series
    RJP1CS01DWA
    IGBT 1250V 15A Wafer    		 Wafer 1250 30 15 1.8 0.21 10 1CSxx Series
    RJP1CS01DWS
    IGBT 1250V 15A Sawn    		 Sawn 1250 30 15 1.8 0.21 10 1CSxx Series
    RJP1CS03DWA
    IGBT 1250V 30A Wafer    		 Wafer 1250 60 30 1.8 0.16 10 1CSxx Series
    RJP1CS03DWS
    IGBT 1250V 30A Sawn    		 Sawn 1250 60 30 1.8 0.16 10 1CSxx Series
    RJP1CS04DWA
    IGBT 1250V 50A Wafer    		 Wafer 1250 100 50 1.8 0.16 10 1CSxx Series
    RJP1CS04DWS
    IGBT 1250V 50A Sawn    		 Sawn 1250 100 50 1.8 0.16 10 1CSxx Series
    RJP1CS05DWA
    IGBT 1250V 75A Wafer    		 Wafer 1250 150 75 1.8 0.17 10 1CSxx Series
    RJP1CS05DWS
    IGBT 1250V 75A Sawn    		 Sawn 1250 150 75 1.8 0.17 10 1CSxx Series
    RJP1CS06DWA
    IGBT 1250V 100A Wafer    		 Wafer 1250 200 100 1.8 0.16 10 1CSxx Series
    RJP1CS06DWS
    IGBT 1250V 100A Sawn    		 Sawn 1250 200 100 1.8 0.16 10 1CSxx Series
    RJP1CS07DWA
    IGBT 1250V 150A Wafer    		 Wafer 1250 300 150 1.8 0.15 10 1CSxx Series
    RJP1CS07DWS
    IGBT 1250V 150A Sawn    		 Sawn 1250 300 150 1.8 0.15 10 1CSxx Series
    RJP1CS08DWA
    IGBT 1250V 200A Wafer    		 Wafer 1250 400 200 1.8 0.14 10 1CSxx Series
    RJP1CS08DWS
    IGBT 1250V 200A Sawn    		 Sawn 1250 400 200 1.8 0.14 10 1CSxx Series
    RJP1CS10DWA
    IGBT 1250V 10A Wafer    		 Wafer 1250 20 10 1.8 0.23 10 1CSxx Series
    RJP1CS10DWS
    IGBT 1250V 10A Sawn    		 Sawn 1250 20 10 1.8 0.23 10 1CSxx Series
    RJP65S03DWA
    IGBT 650V 30A Wafer    		 Wafer 650 60 30 1.5 0.1 10 65Sx Series
    RJP65S03DWS
    IGBT 650V 30A Sawn    		 Sawn 650 60 30 1.5 0.1 10 65Sx Series
    RJP65S04DWA
    IGBT 650V 50A Wafer    		 Wafer 650 100 50 1.5 0.1 10 65Sx Series
    RJP65S04DWS
    IGBT 650V 50A Sawn    		 Sawn 650 100 50 1.5 0.1 10 65Sx Series
    RJP65S05DWA
    IGBT 650V 75A Wafer    		 Wafer 650 150 75 1.5 0.075 10 65Sx Series
    RJP65S05DWS
    IGBT 650V 75A Sawn    		 Sawn 650 150 75 1.5 0.075 10 65Sx Series
    RJP65S06DWA
    IGBT 650V 100A Wafer    		 Wafer 650 200 100 1.5 0.06 10 65Sx Series
    RJP65S06DWS
    IGBT 650V 100A Sawn    		 Sawn 650 200 100 1.5 0.06 10 65Sx Series
    RJP65S07DWA
    IGBT 650V 150A Wafer    		 Wafer 650 300 150 1.5 0.07 10 65Sx Series
    RJP65S07DWS
    IGBT 650V 150A Sawn    		 Sawn 650 300 150 1.5 0.07 10 65Sx Series
    RJP65S08DWA
    IGBT 650V 200A Wafer    		 Wafer 650 400 200 1.5 0.08 10 65Sx Series
    RJP65S08DWS
    IGBT 650V 200A Sawn    		 Sawn 650 400 200 1.5 0.08 10 65Sx Series
    RJP65T43DPM
    IGBT 650V 40A TO-3PFM    		 PFC TO-3PFM 650 150 40 20 1.8 0.045 68.8 65T4x Series
    RJP65T43DPQ-A0
    IGBT 650V 30A TO-247A    		 PFC TO-247A 650 150 60 30 1.8 0.045 150 65T4x Series
    RJP65T54DPM-A0
    IGBT 650V 30A TO-3PFP    		 PFC TO-3PFP 650 225 60 30 1.35 0.125 55.5 65T5x Series
    RJQ6008BDPM-00
    IGBT 600V 6A TO-3PFM-5 Built-In FRD    		 PFC TO-247A 600 100 13 6 1.8 0.051 1.2 100 29 Built-In FRD
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
