Harsh Environment Digital Controlled Potentiometers (DCPs)

产品选型表

Processing table

	Channels (#)	Taps (#)	Resistance Options (kΩ)	Resistance Taper	Supply Voltage Vcc Range	Supply Current Icc (µA)	Wiper Current (mA)	Wiper Resistance (ohms)	Interface	Single Supply Voltage Range (V)	End-to-End Temperature Coefficient (ppm/°C)	Qualification Level	Lead Count (#)	Pkg. Type
(3) 推荐产品 (0) 衍生产品				Linear	2.7-5.5				I2C			Standard		MSOP TSSOP
器件号				Logical Operator	Logical Operator				Logical Operator			Logical Operator		Logical Operator

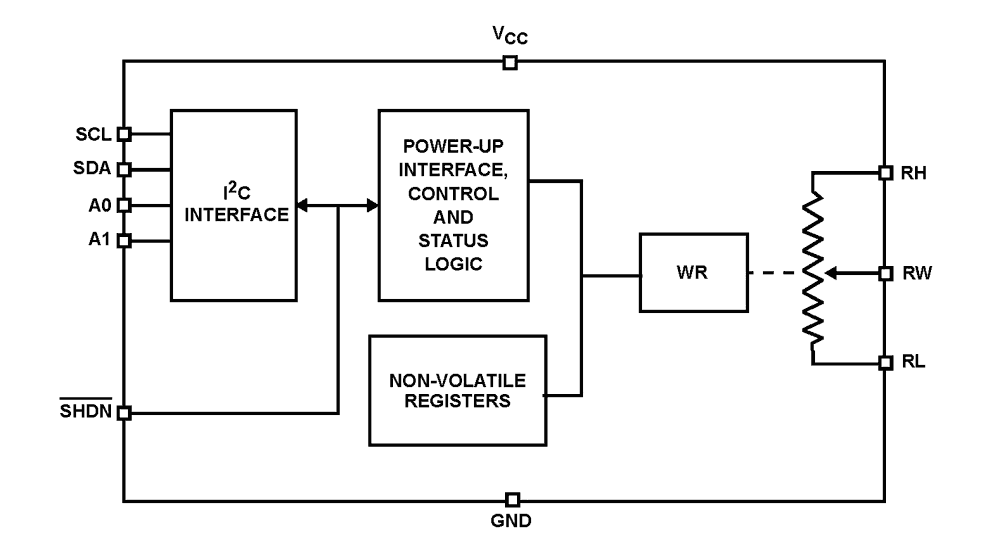

ISL22316WM PDF Single Digitally Controlled Potentiometer (XDCP™), Low Noise, Low Power I2C® Bus, 128 Taps	1	128	10	Linear	2.7-5.5	5	3	70	I²C	0 - 5.5	50	Standard	10	MSOP

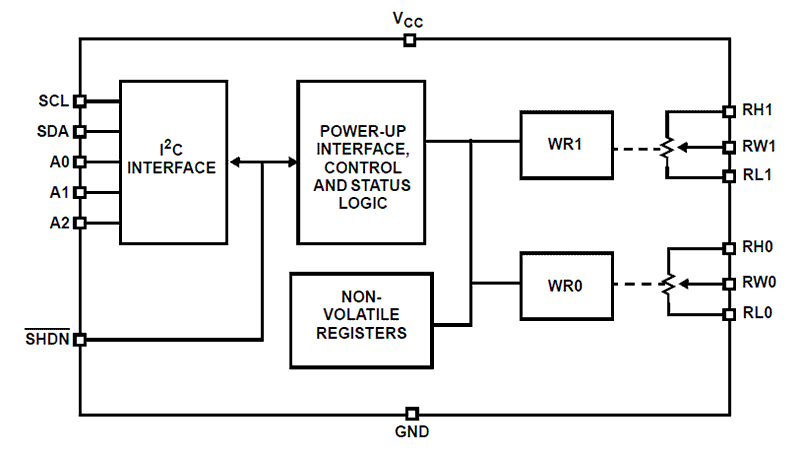

ISL22326WM PDF Dual Digitally Controlled Potentiometers (XDCP™) Low Noise, Low Power, I2C® Bus, 128 Taps	2	128	10	Linear	2.7-5.5	5	5	70	I²C	0 - 5.5	50	Standard	14	TSSOP

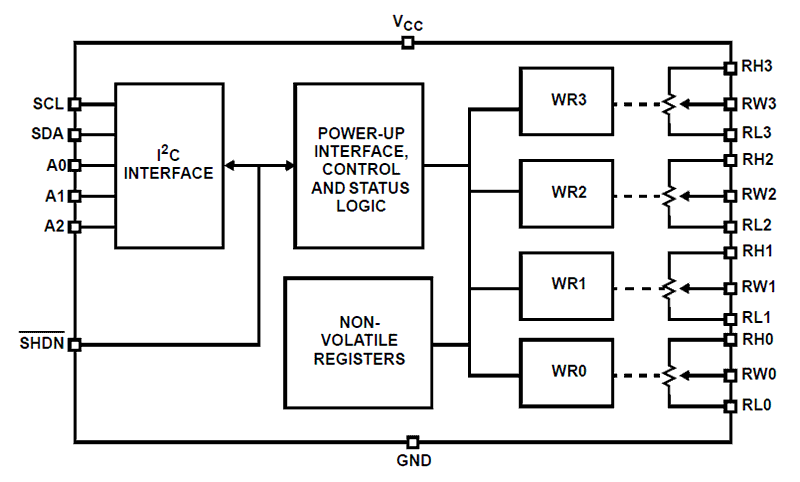

ISL22346WM PDF Quad Digitally Controlled Potentiometers (XDCP™), Low Noise, Low Power I2C® Bus, 128 Taps	4	128	10	Linear	2.7-5.5	5	3	70	I²C	0 - 5.5	50	Standard	20	TSSOP

Hide Filters button in header: Collapse or expands filters
Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
Reset button in header: Reset all filters to the page default
Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
Export button in header: Export the filtered results of the table to an Excel document
Filter parts search bar in header: Type to filter table results by part number
Hide column button in column headers: Select to hide columns in table
AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
Document icon next to product name in row: View the featured document for this product
Chip icon next to the right of the document icon in row: View the block diagram for this product
Cart icon to the right of the chip icon: Indicates that samples are available for this product

Document title 文档标题		Document type 类型	日期日期
	R14AN0002: General Digitally Controlled Potentiometers PDF 330 KB	应用文档	2022年7月5日
	AN1699: Digital Control Potentiometers Offer Hidden Benefits for Many Designs PDF 251 KB	应用文档	2004年1月19日
	AN9867: End of Life Derating: A Necessity or Overkill PDF 338 KB	应用文档	1999年11月10日
	AN9675: A Tutorial in Coherent and Windowed Sampling with A/D Converters PDF 503 KB	应用文档	1999年8月13日
	AN9705: A Theoretical View of Coherent Sampling PDF 287 KB	应用文档	1997年2月21日
	Intersil Space Products Brochure PDF 4.85 MB	手册	2023年7月19日
	Analog ICs Brochure PDF 4.91 MB 日文	手册	2022年12月4日
7 items

Software title 文档标题	Software type 类型	日期日期
DCP Evaluation Board Software v6.03 EXE 2.56 MB	库	2017年11月17日
1 item
