概览
简介
The Intersil HCS163MS is a radiation hardened synchronous presettable binary counter that features lookahead carry logic for use in high-speed counting applications. Counting and parallel load, and presetting are all accomplished synchronously with the positive transition of the clock. The HCS163MS utilizes advanced CMOS/SOS technology to achieve high-speed operation. This device is a member of the radiation hardened, high-speed, CMOS/SOS logic family. The HCS163MS is supplied in a 16-lead Ceramic Flatpack (K suffix) or an SBDIP package (D suffix).

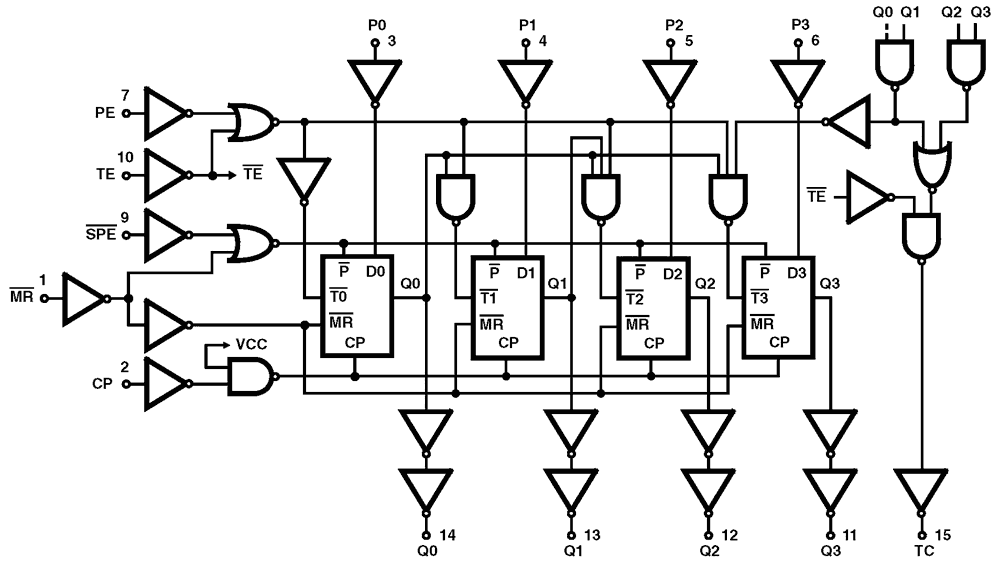

特性
- 3 micron radiation hardened CMOS SOS
- Total dose 200K RAD (Si)
- SEP effective LET no upsets: >100 MEV-cm2/mg
- Single Event Upset (SEU) immunity < 2 x 10-9 errors/bit-day (Typ)
- Dose rate survivability: >1 x 1012 RAD (Si)/s
- Dose rate upset: >1010 RAD (Si)/s 20ns pulse
- Latch-up free under any conditions
- Military temperature range: -55 °C to +125 °C
- Significant power reduction compared to LSTTL ICs
- DC operating voltage range: 4.5V to 5.5V
- Input Logic Levels
- VIL = 30% of VCC
- VIH = 70% of VCC
- Input current levels Ii ≤ 5µA at VOL, VOH
文档
| Document title | Document type
|
日期 日期 | |
|---|---|---|---|
| PDF 402 KB | 数据手册 | ||
| PDF 338 KB | 应用文档 | ||
| PDF 467 KB | 手册 | ||
| PDF 4.85 MB | 手册 | ||
| 其他 | |||
| PDF 360 KB | Price Increase Notice | ||
| PDF 499 KB | Product Advisory | ||
| PDF 230 KB | 产品变更通告 | ||
| PDF 533 KB | 白皮书 | ||
9 items
|
|||
设计和开发
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
产品选择
Processing table
| SBDIP | Tube | 25 | 5962R9580701VEC | ||
| CFP | Tray | 25 | 5962R9580701VXC |
