概述
描述

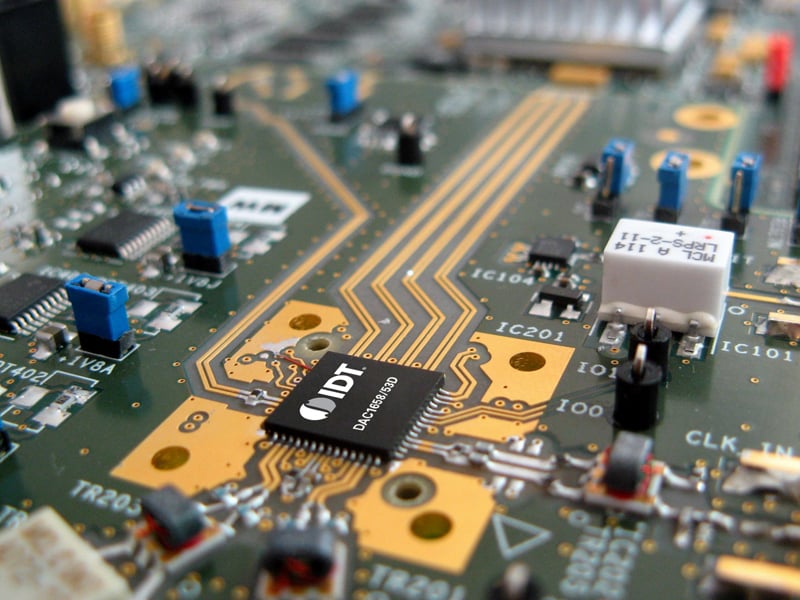

IDT's DAC demo board is suitable for dynamic performance evaluations from low to high output frequency configurations. A data-generation board can be used during design and prototype to generate various input test patterns and ease DAC performance analysis.
特性
- Software interface to easily program DAC parameters and data generation board
- Single global clock input (SMA connector) needed for both generation and data sampling (in case used in combination with data-generation board)
- JESD204B lanes up 10 Gbps (FMC-VITA-57 connector)
- Direct access to both DAC outputs channels (SMA connector)
- Single power supply
- Interoperable with Xilinx ML605 and KC705 Dev kit
- Xilinx LogiCORE IPJESD204
- Interoperable with Altera Arria V GT Dev kit (through FMC connector)
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 手册 - 硬件 | DAC165xD Evaluation Board User Manual Guide
|
|
| 手册 - 软件 | Eval Demo Board Software GUI-DAC 165xQ&DAC165XD
|
|
| 原理图 | DAC165XD Schematics and Layouts
|
|
3 项目
|
||
设计和开发
相关评估板和套件
开发板与套件
评估
Digital Pattern Generation board for High-speed JESD204B DACs
HSDC-EXTMOD03B-DB is an FPGA-based digital pattern generation board for IDT’s JESD204B serial interface DACs.
产品选项
| Part Number | Status | Stock | EPC | Pkg. Type | Lead Count (#) | Temp. Grade | Pb (Lead) Free |
|---|---|---|---|---|---|---|---|
| DAC1658D1G5-DB | Obsolete | Out of Stock | BD0 | BOARD | 0 | I | No |
