概览
描述

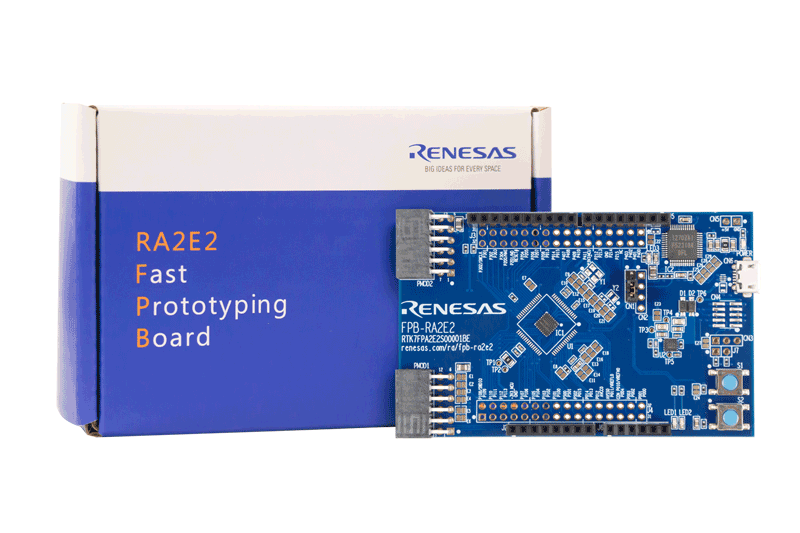

RA2E2 Fast Prototyping Board is an evaluation board specialized for prototype development for a variety of applications. It has a built-in emulator circuit equivalent to an E2 Emulator OB, so you can write/debug program without additional Tools. In addition, with Arduino Uno™ and Pmod™ interfaces included standard and through-hole access to all pins of the microcontroller, and so on. It has high expandability.
Sample software is available to demonstrate the functionality of the RA2E2 MCU and for connecting between the RA2E2 Fast Prototyping Board and various wireless modules or various sensor modules.
Please use Bluetooth®, LoRa® and Wi-Fi according to the radio regulations of each country during use.
特性
- Equipped with an RA2E2 32bit MCU 24pin ROM:64KB, RAM: 8KB
- No additional tools are required for program debugging/writing with the built-in E2 Emulator circuit
- Through-holes with access to all of the pins of the MCU
- Arduino Uno™ and Pmod™ Interfaces
- Small size board of 53mm x 85mm size
- Support for various RA2E2 software and tools
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 快速入门指南 | PDF 641 KB 日本語 | |
| 应用说明 | PDF 3.78 MB | |
| 传单 | PDF 412 KB | |
| 手册 - 开发工具 | PDF 1.16 MB 日本語 | |
| 应用说明 | PDF 1.61 MB | |
| 应用说明 | PDF 793 KB | |
| 原理图 | ZIP 44.42 MB | |
| 手册 - 开发工具 | PDF 474 KB 日本語 | |
8 items
|
||
设计和开发
样例程序
相关评估板和套件
评估
EK-RA2E2
有效
RA2E2 MCU 群组评估套件
EK-RA2E2 评估套件可通过通过瑞萨电子的灵活软件包 (FSP) 和 e2 studio IDE，帮助用户轻松评估 RA2E2 MCU 产品组的特性，并开发嵌入式系统应用程序。 用户可利用丰富的板载功能以及自选的热门生态系统插件来将丰富创意变为现实。
入门
运行快速入门示例项目
- EK-RA2E2 板具有预先编程过的快速入门示例项目（EK-RA2E2 示例项目包中提供源代码）。
- 用户可使用连接至 5V 电源的 micro USB 设备电缆，通过 USB 调试端口 (J10) 启动 EK-RA2E2 板。 白色电源 LED 指示灯将会亮起...
