概览
描述

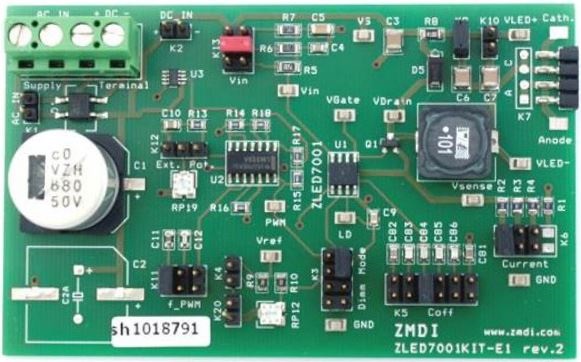

The ZLED7001 Evaluation Kit demonstrates the functionality of IDT's ZLED7001 LED Driver IC via the multi-featured, configurable ZLED7001-E1 Evaluation Board and the ZLED-PCB1 test board with one 3W white HP-LED mounted. The Evaluation Board enables up to 24VAC / 40VDC operation. Additional ZLED-PCB1 test boards can be ordered separately.
特性
- ZLED7001-E1 Evaluation Board
- ZLED-PCB1
应用
设计和开发
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
