概览
描述
The ZSLS7031KIT-D1 Demonstration Kit enables a quick and easy evaluation of ITD's ZSLS7031 Isolated/Non-isolated Flyback LED Driver IC with Active PFC, which is designed to work in buck-boost and fly-back topologies. The demonstration circuit operates with peak current detection and in constant frequency mode. The ZSLS7031KIT-D1 application demonstrates operation within the universal supply voltage range of 85VAC to 265VAC with loads from 9 (about 24V forward voltage) to 19 (52V) LEDs; if operating with 230VAC, loads down to 6 LEDs (17V) can be used.
特性

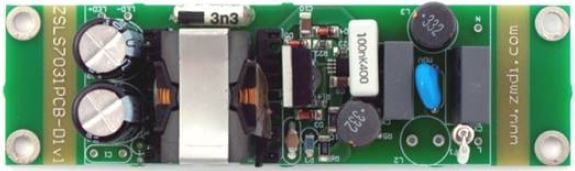

- ZLED7031PCB-D1 Demo Board
- ZSLS-PCBB
- 5 samples of ZSLS7031
应用
设计和开发
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
