概览
描述

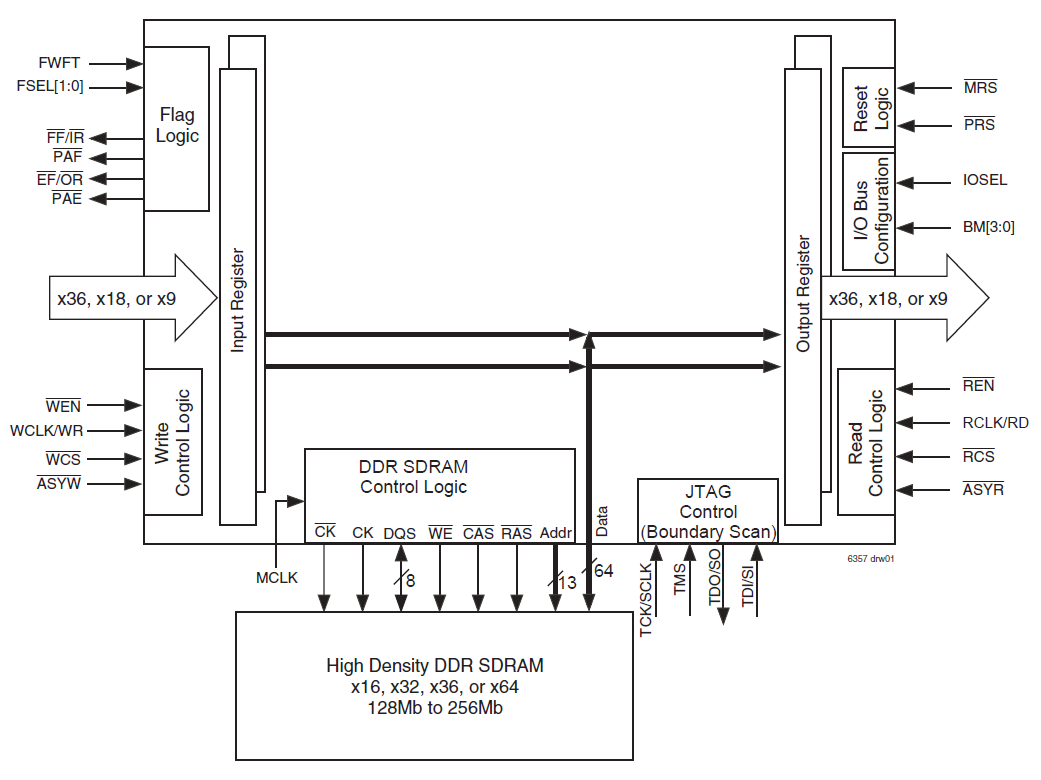

The 72T6360 is a x36 sequential flow-control device that can independently control up to four separate external memories (DDR SDRAM) for a maximum density of 1Gb (128MB). Depth expansion mode is available for applications that require more than 1Gb of storage memory. Bus-matching feature will allow the inputs and outputs to be configured to x36, x18, or x9 bus width. This device supports industry standard DDR specifications including Samsung, Micron, and Infineon memories
特性
- 166MHz operation (6ns read/write cycle time)
- 2.5V-LVTTL or 3.3V-LVTTL configured ports
- Independent and simultaneous read and write access
- IDT Standard mode or FWFT mode of operation
- Master Reset clears all data and settings
- Partial Reset clears data, but retains programmable settings
- Depth expandable with multiple devices for densities greater than 1Gb
- Width expandable with multiple devices for bus widths greater than 36 bits
- JTAG functionality (Boundary Scan)
- Available in 324-pin PBGA package
- Industrial temperature range (-40C to +85C) is available
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 771 KB | |
| 产品变更通告 | PDF 24 KB | |
| 应用说明 | PDF 104 KB | |
| 产品变更通告 | PDF 99 KB | |
| 产品变更通告 | PDF 729 KB | |
| 产品变更通告 | PDF 80 KB | |
| 产品变更通告 | PDF 38 KB | |
| 产品变更通告 | PDF 26 KB | |
8 items
|
||
