封装信息
| Lead Count (#) | 64 |
| Pkg. Code | PNG64 |
| Pitch (mm) | 0.8 |
| Pkg. Type | TQFP |
| Pkg. Dimensions (mm) | 14.0 x 14.0 x 1.4 |
环境和出口类别
| Pb (Lead) Free | Yes |
| ECCN (US) | NLR |
| HTS (US) | 8542320071 |
| Moisture Sensitivity Level (MSL) | 3 |
产品属性
| Lead Count (#) | 64 |
| Pb (Lead) Free | Yes |
| Carrier Type | Reel |
| Price (USD) | 1ku | 113.33863 |
| Architecture | Uni-directional |
| Bus Width (bits) | 18 |
| Core Voltage (V) | 3.3 |
| Density (Kb) | 2048 |
| Family Name | SuperSync |
| I/O Frequency (MHz) | 1 - 1 |
| I/O Type | 3.3 V LVTTL |
| Interface | Synchronous |
| Length (mm) | 14 |
| MOQ | 750 |
| Moisture Sensitivity Level (MSL) | 3 |
| Organization | 128K x 18 |
| Package Area (mm²) | 196.0 |
| Pb Free Category | e3 Sn |
| Pitch (mm) | 0.8 |
| Pkg. Dimensions (mm) | 14.0 x 14.0 x 1.4 |
| Pkg. Type | TQFP |
| Qty. per Carrier (#) | 0 |
| Qty. per Reel (#) | 750 |
| Reel Size (in) | 13 |
| Requires Terms and Conditions | Does not require acceptance of Terms and Conditions |
| Tape & Reel | Yes |
| Temp. Range | 0 to 70°C |
| Thickness (mm) | 1.4 |
| Width (mm) | 14 |
描述

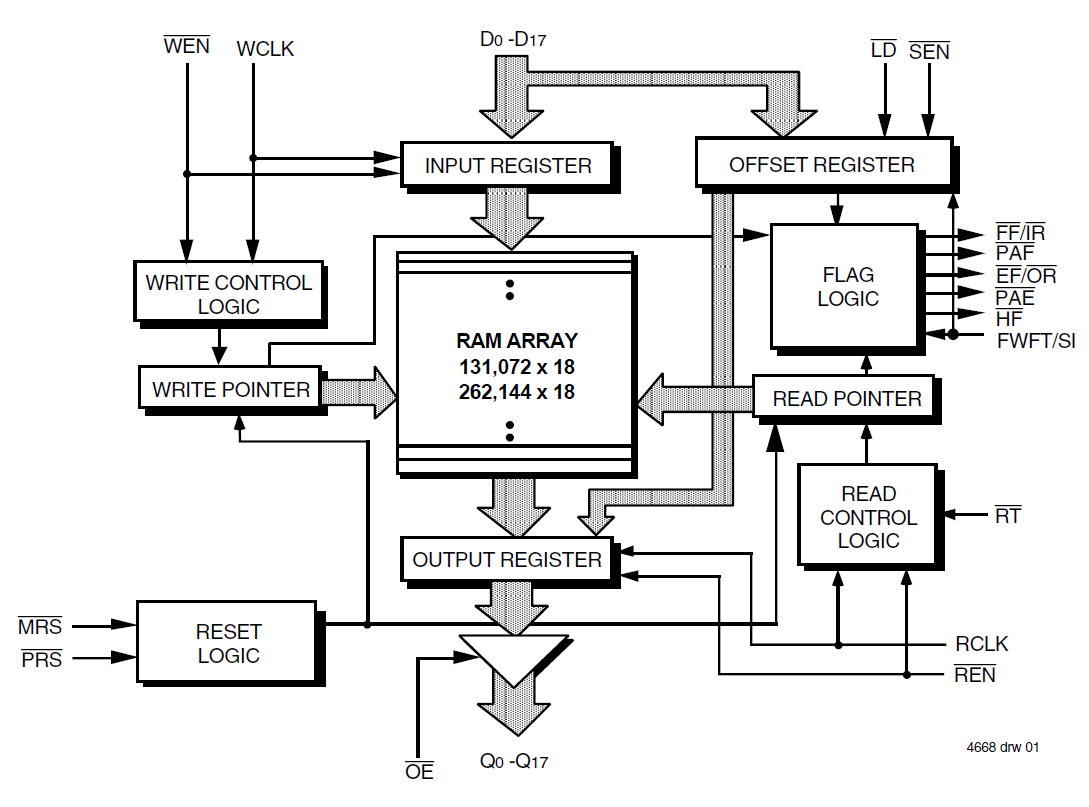

The 72V295 is an 128K x 18 SuperSync FIFO memory with clocked read and write controls. The Frequency Select pin (FS) has been removed, thus it is no longer necessary to select which of the two clock inputs, RCLK or WCLK, is running at the higher frequency. SuperSync FIFOs are particularly appropriate for networking, video, telecommunications, data communications and other applications that need to buffer large amounts of data.
