封装信息
| CAD 模型: | View CAD Model |

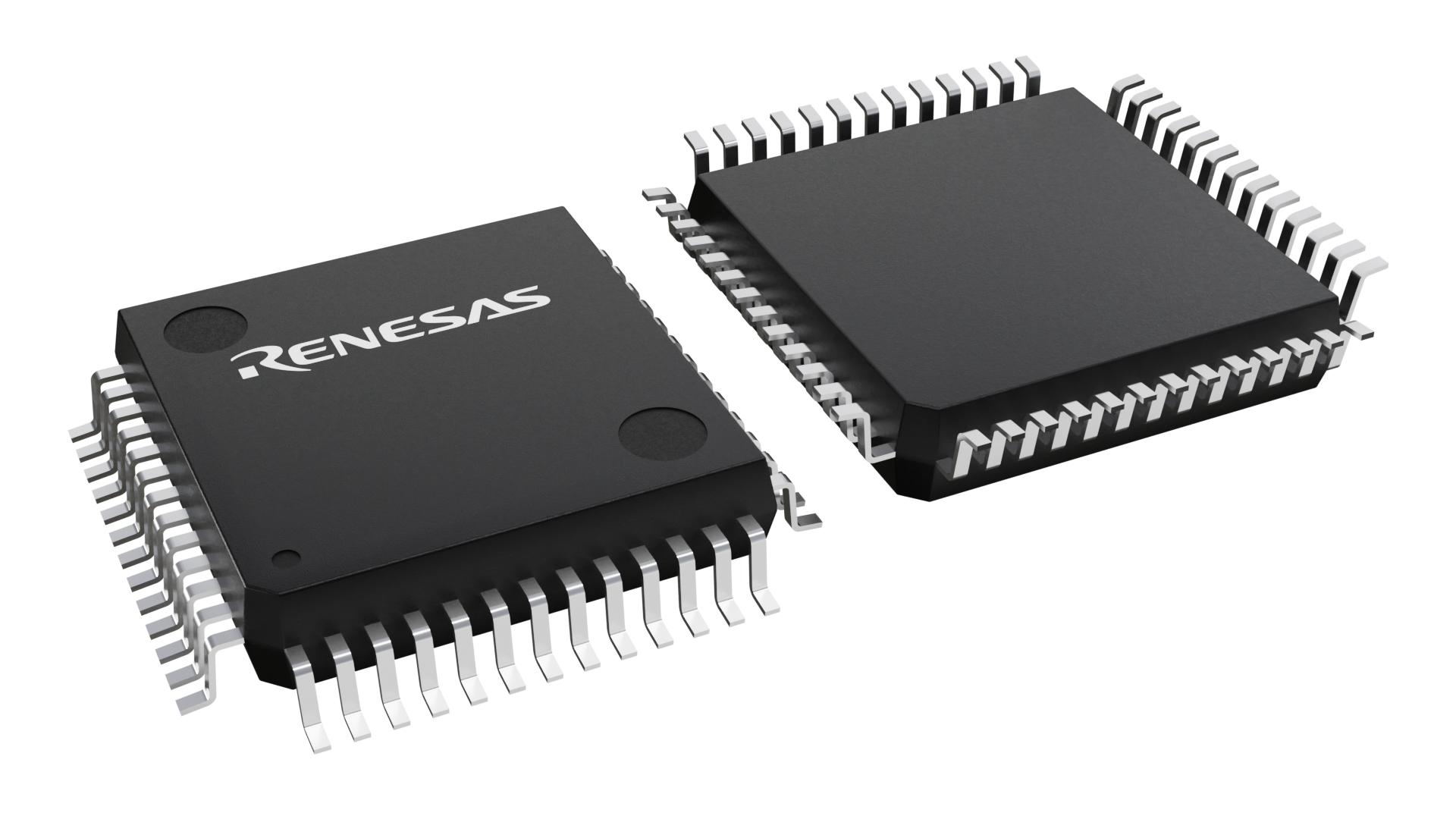

| Pkg. Type: | PQFP |
| Pkg. Code: | DNG52 |
| Lead Count (#): | 52 |
| Pkg. Dimensions (mm): | 14.0 x 14.0 x 2.7 |
| Pitch (mm): | 1 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | |
| HTS (US) |
产品属性
| Lead Count (#) | 52 |
| Carrier Type | Tray |
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| Pb Free Category | e3 Sn |
| Temp. Range (°C) | -40 to 85°C |
| Country of Assembly | Philippines |
| Country of Wafer Fabrication | Taiwan |
| Function | CODEC |
| Length (mm) | 14 |
| MOQ | 168 |
| Package Area (mm²) | 196 |
| Pitch (mm) | 1 |
| Pkg. Dimensions (mm) | 14.0 x 14.0 x 2.7 |
| Pkg. Type | PQFP |
| Qty. per Carrier (#) | 84 |
| Qty. per Reel (#) | 0 |
| Requires Terms and Conditions | Does not require acceptance of Terms and Conditions |
| Tape & Reel | No |
| Thickness (mm) | 2.7 |
| Width (mm) | 14 |
| 已发布 | No |
有关 821034 的资源
描述
The 821034 is a single-chip, four-channel PCM codec with on-chip filters and a programmable gain setting. This device provides both µ-Law and A-Law companding digital-to-analog and analog-to-digital conversions based on ITU-T G.711 - G.714 specifications. The digital filters in the 821034 provide the necessary transmit and receive filtering for voice telephone circuits to interface with time-division multiplexed systems. The 821034 has a flexible PCM interface with software-selectable timing modes and an independently programmable time slot for each transmit and receive channel. It also integrates the SLIC signaling functions through internal registers. The Codec and SLIC control/status registers are accessed via the serial control interface.
