封装信息
| CAD 模型: | View CAD Model |

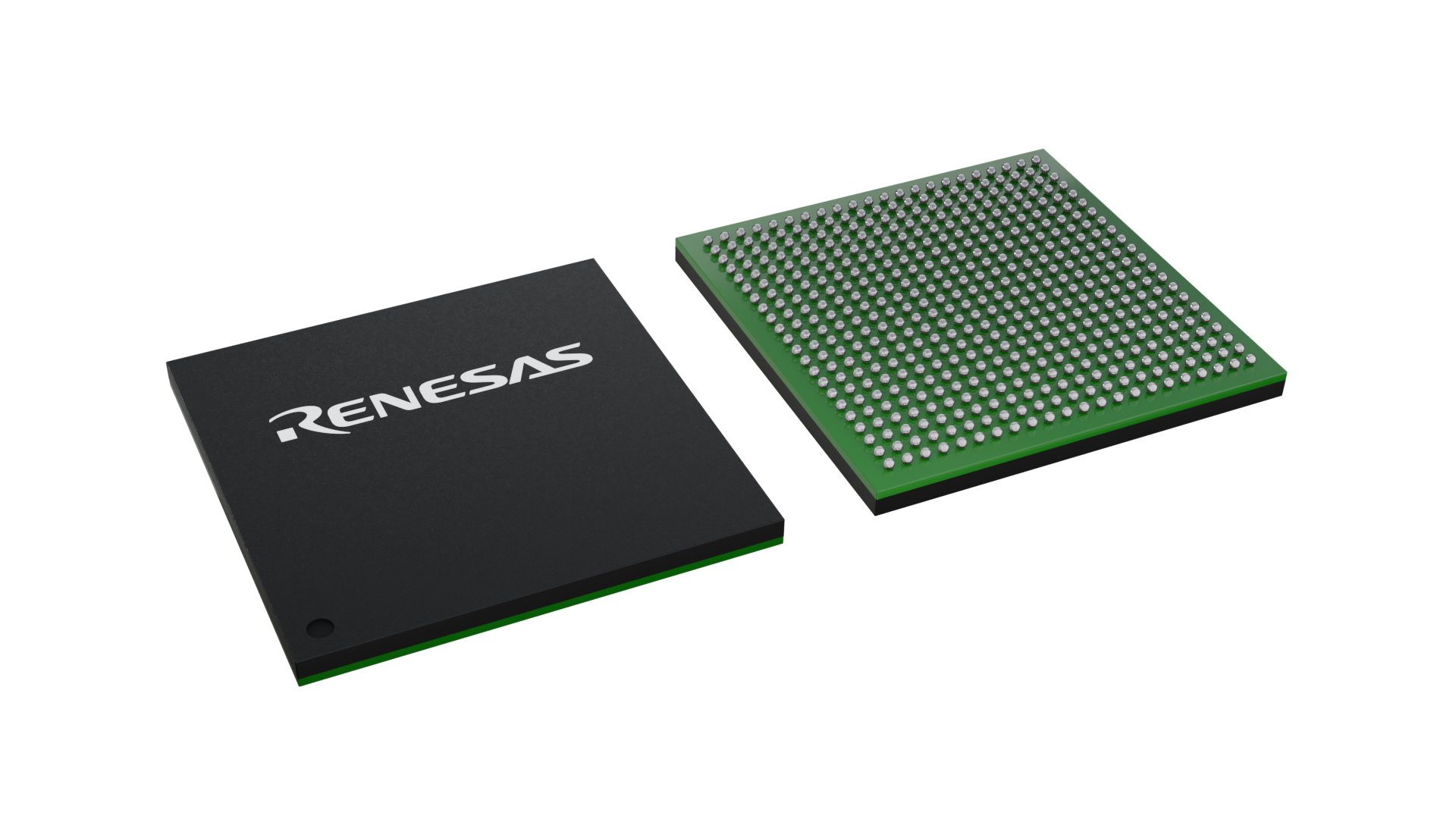

| Pkg. Type: | CABGA |
| Pkg. Code: | BFG484 |
| Lead Count (#): | 484 |
| Pkg. Dimensions (mm): | 19.0 x 19.0 x 1.76 |
| Pitch (mm): | 0.8 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | EAR99 |
| HTS (US) | 8542.39.0090 |
产品属性
| Lead Count (#) | 484 |
| Carrier Type | Reel |
| Moisture Sensitivity Level (MSL) | 3 |
| Qty. per Reel (#) | 750 |
| Qty. per Carrier (#) | 0 |
| Pb (Lead) Free | Yes |
| Pb Free Category | e1 SnAgCu |
| Temp. Range (°C) | -40 to 85°C |
| Country of Assembly | TAIWAN |
| Country of Wafer Fabrication | TAIWAN, UNITED STATES |
| Length (mm) | 19 |
| MOQ | 750 |
| Pitch (mm) | 0.8 |
| Pkg. Dimensions (mm) | 19.0 x 19.0 x 1.76 |
| Pkg. Type | CABGA |
| Price (USD) | $82.01139 |
| Reel Size (in) | 13 |
| Tape & Reel | Yes |
| Thickness (mm) | 1.76 |
| Width (mm) | 19 |
| 已发布 | No |
有关 82P2916 的资源
描述
16-Channel T1/E1/J1 Short Haul Line Interface Unit. This device has an adaptive equalizer integrated, performs clock.data recovery, line decoding/encoding and has one jitter attenuator. Optimized to be used in LAN, WAN, Routers, Wireless Base Stations, Gateways etc.
