注意 - 建议使用以下设备作为替代品:

特性

  • LP-HCSL outputs; up to 90% IO power reduction, better signal integrity over long traces
  • Direct connect to 85Ω transmission lines; eliminates 60 termination resistors, saves 103mm² area
  • Pin compatible with the 9ZXL1530; easy upgrade to reduced board space
  • 64-VFQFPN package; smallest 15 output Z-buffer
  • Fixed feedback path: ~ 0ps input-to-output delay
  • 9 selectable SMBus addresses; multiple devices can share the same SMBus segment
  • Separate VDDIO for outputs; allows maximum power savings
  • PLL or bypass mode; PLL can de-jitter incoming clock
  • 100MHz and 133.33MHz PLL mode; legacy QPI/UPI support
  • Selectable PLL BW; minimizes jitter peaking in downstream PLLs
  • Spread spectrum compatible; tracks spreading input clock for EMI reduction
  • SMBus interface; unused outputs can be disabled
  • 15 LP-HCSL Differential Output Pairs w/integrated terminations (Zo = 85Ω)

描述

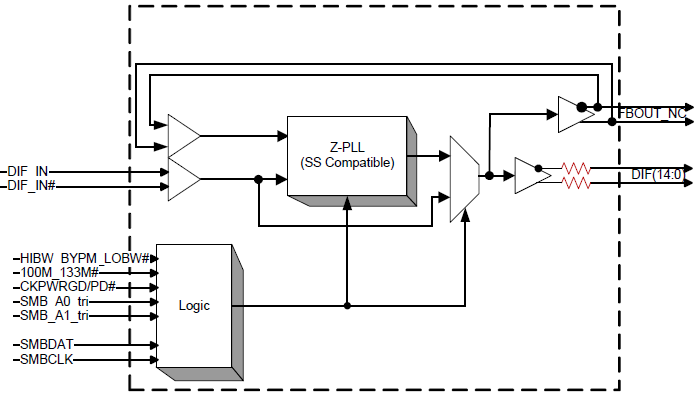

The 9ZXL1550 is a DB1900Z derivative buffer utilizing Low-Power HCSL (LP-HCSL) outputs to increase edge rates on long traces, reduce board space, and reduce power consumption by more than 50% from the original 9ZX21501. It is pin-compatible with the 9ZXL1530 and has the output terminations integrated. It is suitable for PCI Express Gen 1/2/3 or QPI/UPI applications and uses fixed external feedback to maintain low drift for demanding QPI/UPI applications.

产品参数

属性
Chipset Manufacturer Intel
Clock Spec. DB1900Z v1.6 Derivative
Diff. Outputs 15
Diff. Output Signaling LP-HCSL
Output Enable (OE) Pins 0
Output Freq Range (MHz) 33 - 150
Diff. Inputs 1
Diff. Input Signaling HCSL
Accepts Spread Spec Input Yes
Power Consumption Typ (mW) 535
Advanced Features Multiple SMBus addresses, HW PLL mode control, SW PLL mode control
App Jitter Compliance PCIe Gen1, PCIe Gen2, PCIe Gen3, QPI
Package Area (mm²) 81

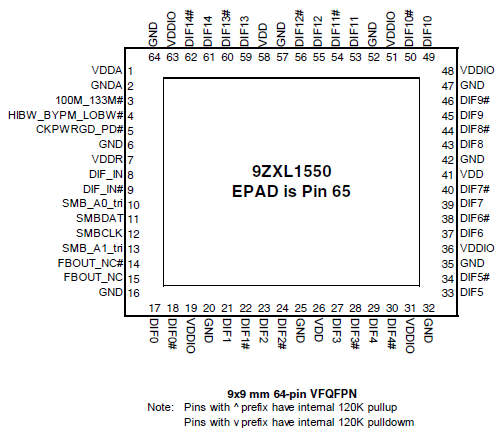

封装选项

Pkg. Type Pkg. Dimensions (mm) Lead Count (#) Pitch (mm)
VFQFPN 9.0 x 9.0 x 0.9 64 0.5
