概览

简介

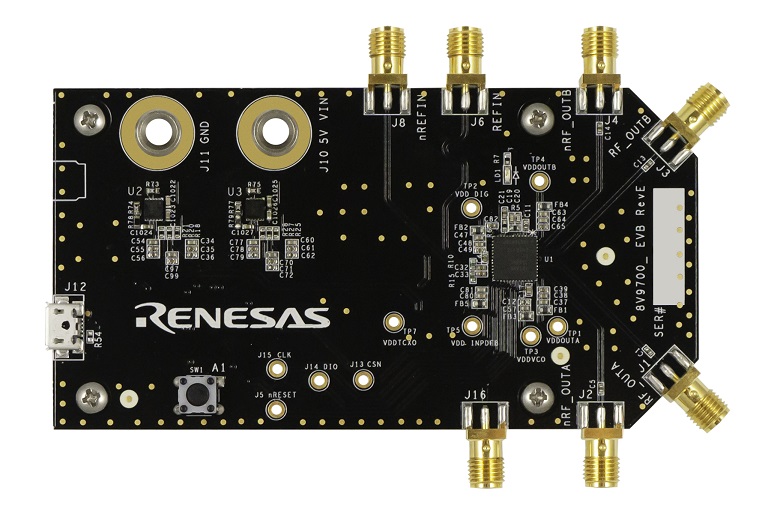

The 8V97003-EVK evaluation board is designed to enable customers to evaluate the functionality and performance of the Wideband 18GHz RF and Microwave Synthesizer. The 8V97003 device on the evaluation board can be programmed and configured via a PC-based GUI, called Timing Commander, to generate an output frequency from 171.875MHz to 18GHz with very low phase noise and RMS phase jitter.

特性

  • 8V97003 evaluation board
  • Micro USB cable
  • Required Software/Hardware:
    • Renesas Timing Commander software installer
    • Network access during installation if the .NET framework is not currently installed on the system
    • 8V97003 GUI personality file
    • PC with USB 2.0 or USB 3.0 interface

应用

文档

类型 文档标题 日期
手册 - 硬件 PDF 1.73 MB
应用文档 PDF 348 KB
2 items

设计和开发

软件与工具

软件与工具

Software title
Software type
公司
Timing Commander
Timing Commander™ 是一个基于 Windows™ 的创新软件平台,通过这个平台,系统设计工程师可以通过直观且灵活的图形用户界面 (GUI) 对精密的计时设备进行配置、编程和监控。
Code Generator 瑞萨电子
1 item

软件下载

类型 文档标题 日期
软件和工具 - 软件 登录后下载 ZIP 18.02 MB
软件和工具 - 其他 登录后下载 ZIP 3.31 MB
2 items

视频和培训

8V97003 Wideband mmWave Synthesizers

This video introduces a next-generation wideband mmWave synthesizer with the industry’s highest performance and unique set of features optimized for 5G and broadband wireless applications. The flagship 8V97003 device is ideal as a local oscillator (LO) for mmWave and beamforming, or a precision reference clock for a high-speed data converter in numerous applications such as test and measurements, optical networking, and data acquisition.
