概览

简介

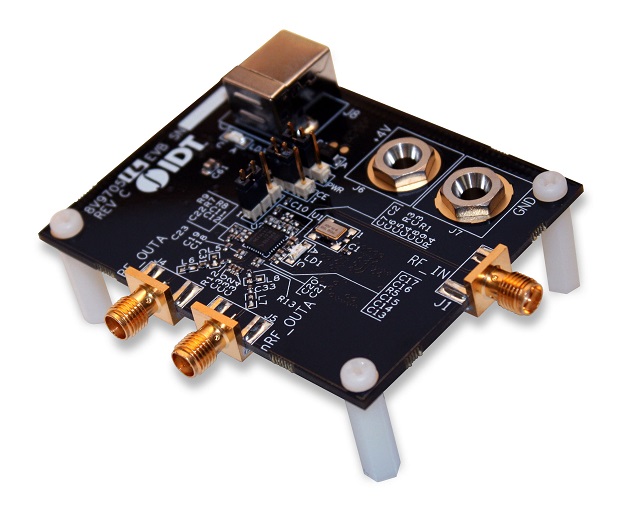

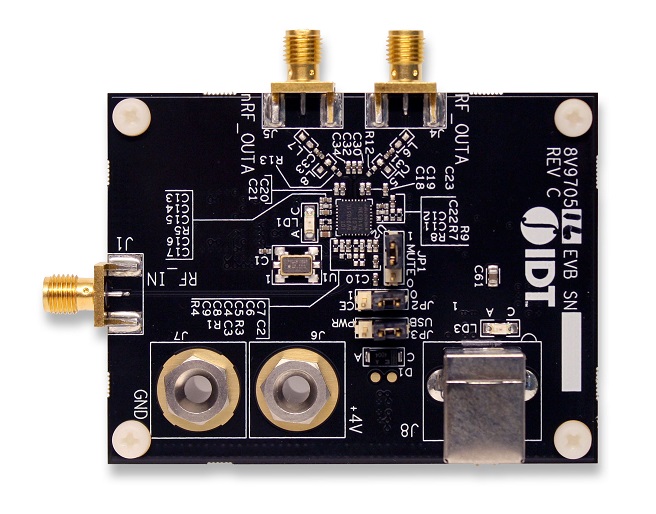

The 8V97051L-EVK is designed to help the customer evaluate the 8V97051L RF Synthesizer / PLL. When the board is connected to a PC running Timing Commander software through USB, the device can be configured and programmed through a graphical interface or through register settings, to generate frequencies with best-in-class performance.

特性

  • Board comes pre-populated with the 8V97051L
  • Fully configurable through Timing Commander software
  • USB powered for portability
  • Onboard 25MHz TCXO plus alternate SMA input provide flexibility for input reference selection

应用

文档

类型 文档标题 日期
手册 - 硬件 PDF 448 KB
应用文档 PDF 348 KB
手册 - 硬件 ZIP 3.78 MB
原理图 PDF 57 KB
4 items

设计和开发

软件与工具

软件与工具

Software title
Software type
公司
Timing Commander
Timing Commander™ 是一个基于 Windows™ 的创新软件平台,通过这个平台,系统设计工程师可以通过直观且灵活的图形用户界面 (GUI) 对精密的计时设备进行配置、编程和监控。
Code Generator 瑞萨电子
1 item

软件下载

类型 文档标题 日期
软件和工具 - 软件 登录后下载 ZIP 18.02 MB
1 item
