DAC1201D125HL

过时

Dual 12-Bit DAC, up to 125Msps

注意 - 建议使用以下设备作为替代品：
DAC1401D125HL - Dual 14-bit DAC, up to 125 Msps
Pin-to-pin compatible

概览

The DAC1201D125 is a dual-port, high-speed, 2-channel CMOS digital-to-analog converter (DAC), optimized for high dynamic performance with low power dissipation. Supporting an update rate of up to 125Msps, the DAC1201D125 is suitable for Direct IF applications.

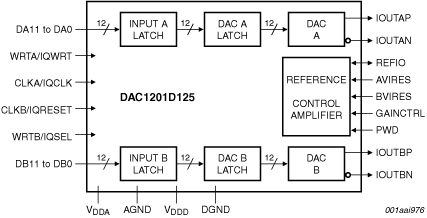

DAC1201D125HL - Block Diagram
DAC1201D125HL - Block Diagram
  • 1.8V, 3.3V, and 5V compatible digital inputs
  • 125Msps update rate
  • 16mW power-down
  • 2mA to 20mA full-scale output current
  • Dual 12-bit resolution
  • Dual-port or interleaved data modes
  • Internal and external reference
  • Pin compatible with the AD9765, DAC2902, and DAC5662
  • SFDR: 74dBc; fo = 1MHz; fs = 52Msps; -12dBFS
  • SFDR: 78dBc; fo = 10.4MHz; fs = 78Msps
  • SFDR: 81dBc; fo = 1MHz; fs = 52Msps
  • Single 3.3V supply
  • Typical 185mW power dissipation

文档

相关文档
类型 文档标题 日期
数据手册
DAC1201D125 Datasheet
PDF 395 KB
EOL 通告
PDN# : DC-14-01 PRODUCT DISCONTINUANCE NOTICE
PDF 538 KB
2 项目

设计和开发

演示
DAC1201D125 过时

DAC1201D125

IDT's DAC1201D125 demo board is suitable for dynamic performance evaluations from low to high output frequency configurations. A data-generation board can be used during design and prototype to generate various input test patterns and ease DAC performance analysis.

推荐文档：
Demo Board Software HSDC-EXTMOD01
