描述

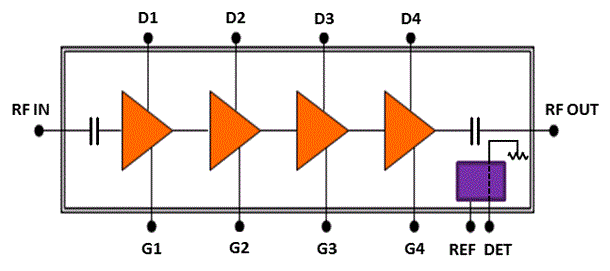

The EXP7602 is a GaAs MMIC power amplifier designed for 50-Ohm systems, and specified for operation in the 71 to 76 GHz range of E-Band. The EXP7602 enables delivery of 25dBm RF output power when driven to 3dB of gain compression and maintains good linearity well below the onset of gain compression. Typical small-signal gain is 22dB with flatness of ±0.5dB over a 1.25GHz window. DC power consumption is as low as 2.2W. The EXP7602 also provides a built-in E-Band power detector and internally de-couples DC form RF input and output ports to simplify system-level design.
特性
- 71 to 76 GHz Frequency Range
- 22dB Nominal Gain
- 31dBm Nominal Output IP3
- 23.5dBm Nominal P-1dB
- 25dBm Nominal P-3dB
- 4V, 550mA Nominal Quiescent Drain Bias
- 4.17mm x 1.87mm Die Size
产品对比
应用
设计和开发
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接,查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用,可直接在 SamacSys 请求该符号或模型。
