Overview

GR-COTTON is a white and round board that has full-color LEDs to link between light and design. You can use a CR2032 battery and write a program via USB cable. Designers can check the operation using an LED and create a gadgets smoothly.

gr-cotton-sp

GR-COTTON Board Front

GR-COTTON Key Features

  • Embeds a Renesas RL78/G13 group 16-bit microcontroller
  • The socket for CR2032 is mounted on the reverse side
GR-COTTON Board Back

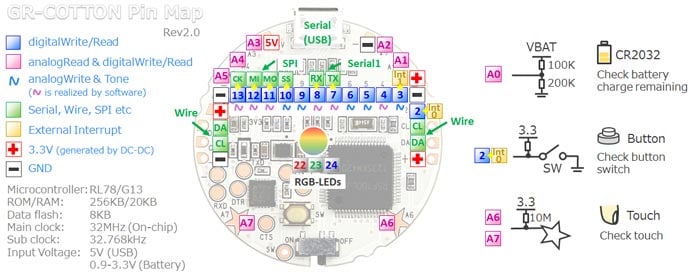

GR-COTTON Pin Map

GR-COTTON Pin Map

Detailed Specification

Microcontroller
RL78/G13 (R5F100GJAF B 48-pin QFP)
ROM/RAM
256KB/20KB
Data Flash
8KB
Main Clock
32MHz (internal)
Sub Clock
32.768kHz
Operating Voltage
3.3V*

* The operating voltage of MCU is from 1.8V to 5.5V

Resources

Schematic/Design

Sketch Reference

Creating & Writing Programs (Sketches)

There are several programming projects that can be done using the GR-COTTON board, including:

Project File for e2 studio

Project file for sketching in the Eclipse-based development environment e2 studio. For downloading and installing e2 studio, please refer to the e2 studio product page.

Note: This is a project exported in e2 studio Version 5.4. It cannot be imported successfully in Version 6.0. For later versions please check that the import is compatible.
