封装信息
| Lead Count (#) | 0 |
| Pkg. Code | DICEW |
| Pitch (mm) | |
| Pkg. Type | WAFER |
| Pkg. Dimensions (mm) | 0.0 x 0.0 x 0.0 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 0 |
| Pb (Lead) Free | Yes |
| ECCN (US) | NLR |
| HTS (US) | 8542390001 |
产品属性
| Lead Count (#) | 0 |
| Carrier Type | WFP |
| Moisture Sensitivity Level (MSL) | 0 |
| Pb (Lead) Free | Yes |
| Pb Free Category | e3 Sn |
| Temp. Range | -40 to +85°C |
| Application | QSFP+, 40G Ethernet SR4, 32G QDR/55G FDR InfiniBand |
| Channels (#) | 4 |
| Data Rate Max (Gbps) | 10 |
| Function | Linear TIA |
| Length (mm) | 0 |
| MOQ | 100 |
| Pitch (mm) | 0 |
| Pkg. Dimensions (mm) | 0.0 x 0.0 x 0.0 |
| Pkg. Type | WAFER |
| Qty. per Carrier (#) | 0 |
| Qty. per Reel (#) | 0 |
| Requires Terms and Conditions | Does not require acceptance of Terms and Conditions |
| Tape & Reel | No |
| Thickness (mm) | 0 |
| Width (mm) | 0 |
描述

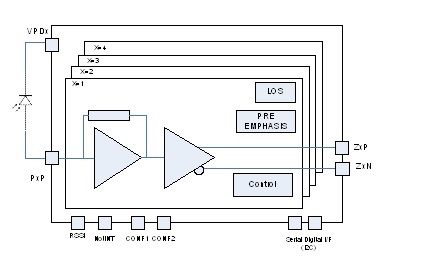

The HXR5104A Transimpedance Limiting Amplifier array is a member of IDT’s family of Optical Receiver Transmitter Array (ORTA) products targeted at the parallel optical links market. Together with a PIN detector array or discrete detectors, high-capacity, high-availability optical links can be designed for telecom and datacom applications. The 3.3V SiGe device integrates the transimpedance preamplifier, the limiting post-amplifier, and a versatile CML output stage for four optical channels.
