概览
描述

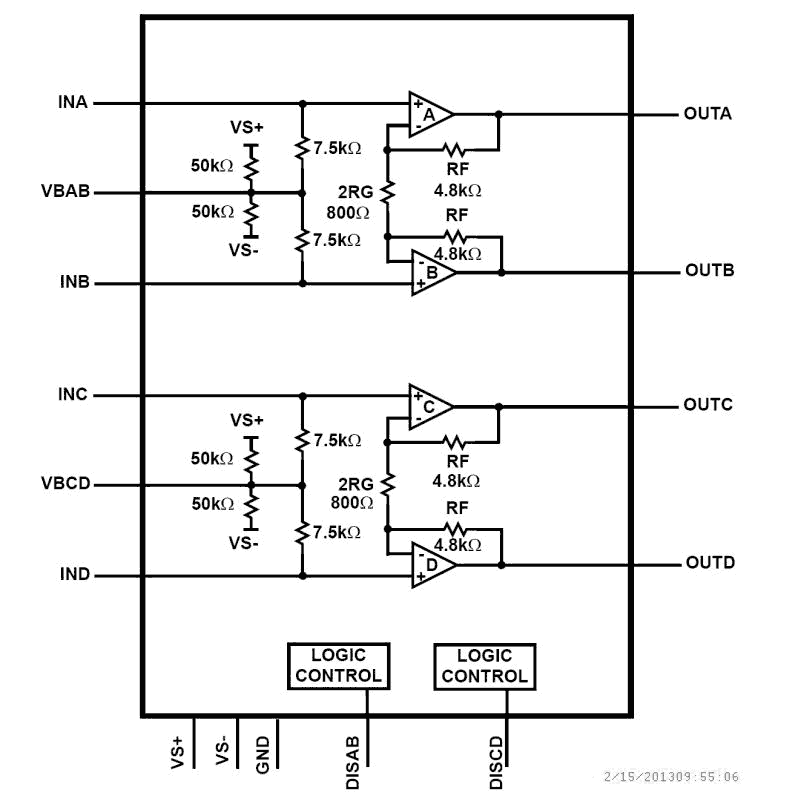

The ISL1536 is a very low power dual channel differential amplifier designed for central office line driving for DMT ADSL2+. This device features a high drive capability of 400mA while consuming only 4mA of supply current per amplifier from ±12V supplies. It integrates gain and bias resistors while maintaining high slew rate and low distortion.
特性
- Internal Fixed Gain AV = 12.85
- Integrated Feedback Resistors
- 43.4VP-P Differential Output Drive into 100Ω
- 41.6VP-P Minimum Differential Output Drive into 60Ω
- -59dBc Typical Driver Output Distortion Driving 50Ω at 2MHz
- Low Quiescent Current of 3mA per Amplifier
- Power-Down Disable Control
- Pb-Free (RoHS Compliant)
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 662 KB | |
| EOL 通告 | PDF 1.17 MB | |
| 产品变更通告 | PDF 223 KB | |
| 产品变更通告 | PDF 157 KB | |
| 产品变更通告 | PDF 112 KB | |
| 产品变更通告 | PDF 34 KB | |
| 产品变更通告 | PDF 45 KB | |
7 项目
|
||
设计和开发
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
